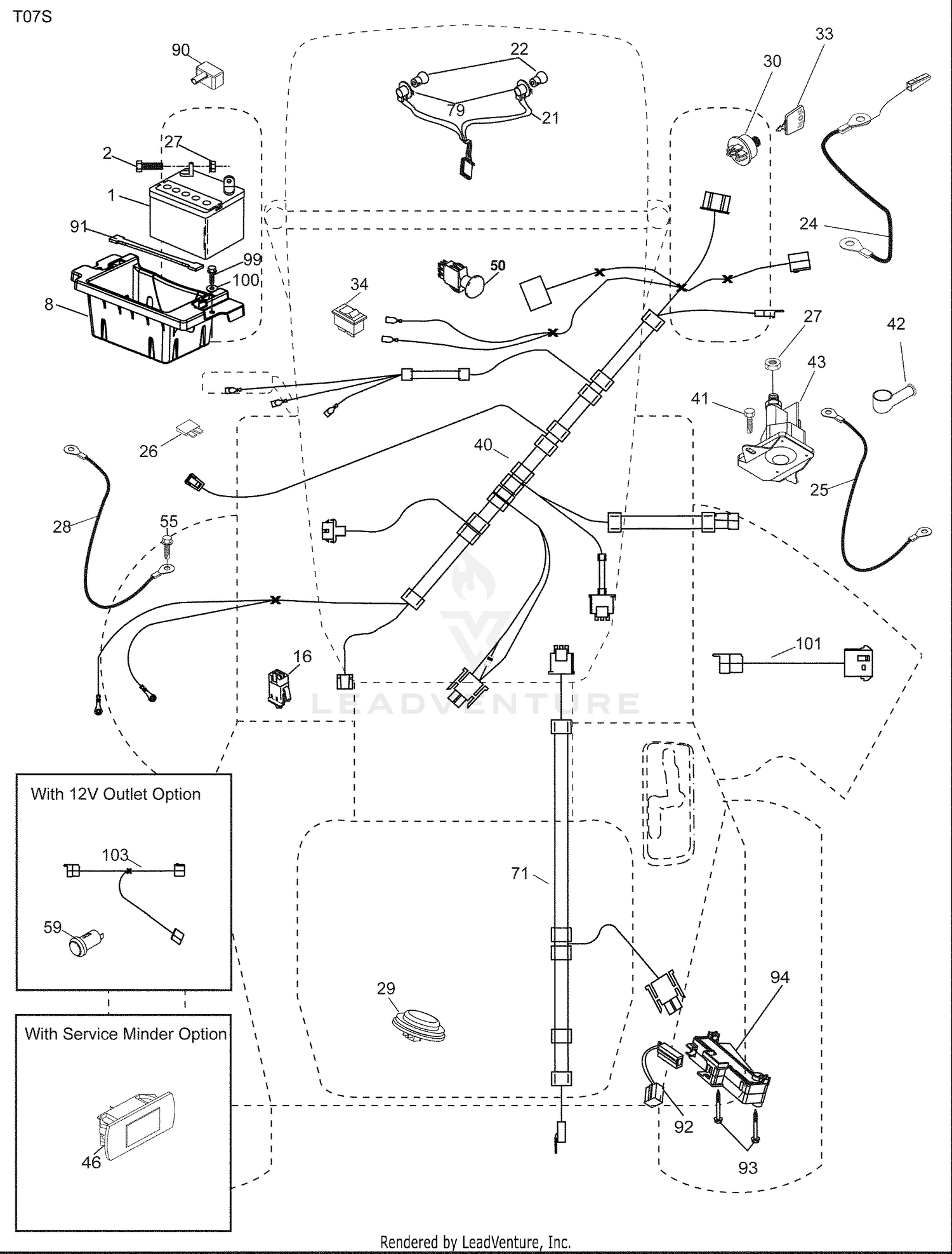

| Ref | Part Number | Description |
|---|
| 1 |
3211-10 |
SCREW-HH Price: $2.04 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
33096-00 |
WASHER-FLAT Price: $1.76 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
324-2 |
SCREW-HH Price: $1.56 |
| 4 |
98-5826 |
PIN-ROLL Price: $1.36 |
| 5 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 6 |
98-5824 |
BUSHING - FLANGE Price: $25.44 |
| 7 |
323-8 |
SCREW-HH Price: $1.20 |
| 8 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
98-5846 |
WASHER FLAT Price: $0.82 |
| 11 |
62-4540 |
PULLEY Price: $61.02 |
| 12 |
98-5625 |
IDLER PULLEY Price: $95.63 |
| 13 |
33114-020 |
SCREW-HH Price: $0.28 |
| 14 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 15 |
3245-31 |
SCREW-HSH Price: $12.15 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
98-5798 |
MOUNT-CLUTCH Price: $158.48 |
| 17 |
98-5308 |
ELECTRIC CLUTCH ASM Price: $641.19 |
| 18 |
7-0238 |
KEY-SQUARE Price: $5.78 |
| 19 |
98-5802 |
WASHER Price: $13.44 |
| 20 |
98-5311 |
BELT - DRIVE Price: $58.05 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 21 |
98-5610 |
TUBE Price: Call Us |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
98-5618 |
IDLER ARM Price: $264.69 |
| 23 |
98-5606 |
IDLER ARM - WELDED Price: $155.38 |
| 24 |
54-1170 |
IDLER EXT SPRING Price: $27.92 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 25 |
98-5609 |
BOLT Price: $56.95 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
98-5309 |
V-BELT Price: $48.61 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
98-5611 |
SHAFT Price: Call Us |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 28 |
62-4530 |
PULLEY Price: $26.96 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 29 |
98-5825 |
SPRING-TRACTION DRIVE Price: Call Us |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 101 |
532198317 |
PIGTAIL.MATNLK.NEW.HAR Price: $6.99 |
