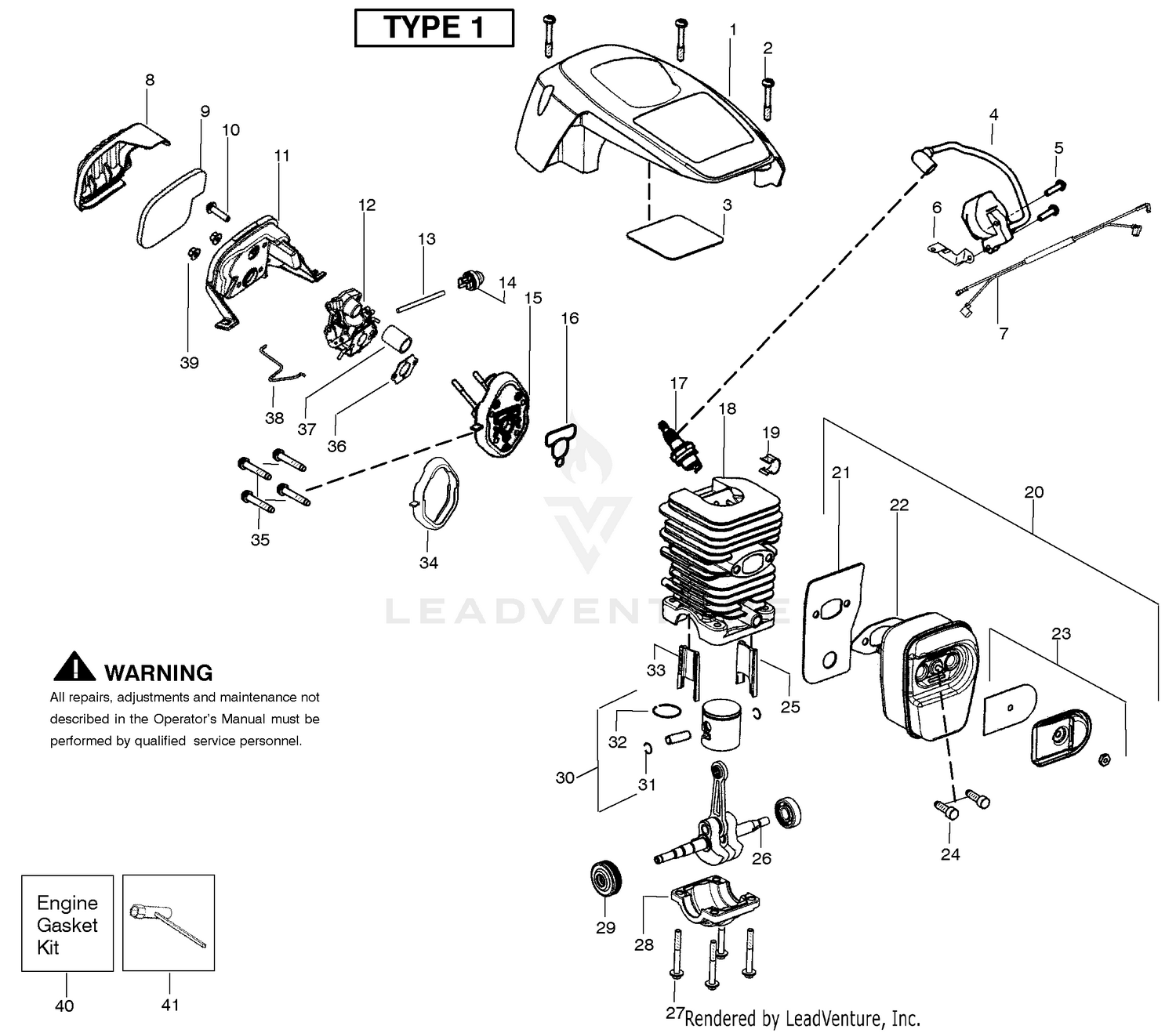

Engine Assembly Type 1

Engine Assembly Type 1

Parts (44)

RefPart NumberDescription
1 530058837 Shield-Cylinder (incl. #3) Price: $11.99
2 530016153 Screw Price: $1.99
3 530059006 Reflector-Tape Price: $1.99
4 530039198 Module - Ignition Price: $29.99
5 530016432 Screw Price: $1.99
6 530047442 Strap-Ground Price: $1.99
7 530057943 Assy-Wire Harness Price: $5.99
8 530058687 Cover-Air Filter Price: $4.99
9 530057925 Filter-Air Price: $0.99
10 530016425 Screw Price: $1.99
11 530057892 Housing-Air Filter Price: $4.99
12 545070601 Carburetor Zama W-26 This part replaces 530035590. Price: $27.99
14 530047721 Bulb-Purge "snap-in" Price: $3.99
19 530016136 Clip-High Tension Lead Price: $1.99
21 530057942 Backplate-Muffler Price: $5.99
23 530071886 Kit-Spark Arrestor Price: $9.99
24 530016338 Bolt-Muffler Price: $1.99
26 545112901 Assy-Crankshaft/Rod This part replaces 530012537. Price: $49.99
27 530016417 Bolt Price: $1.99
28 530057941 Cap-Crankcase Price: $5.99
29 530056363 Assy-Bearing/Seal Price: $11.99
31 530015697 Retainer-Piston Pin Price: $1.99
32 545160401 Ring-Piston This part replaces 530038729. Price: $2.99
35 530016426 Screw Price: $1.99
37 530057926 Tube-Intake Price: $1.99
38 530057909 Wire-Throttle Price: $1.99
39 530016101 Nut-Carb. Price: $1.99
41 530031163 Wrench-Bar Price: $4.99
106 X-343 Connector Price: Call Us
107 277078 Gasket-Governor Housing Price: Call Us
108 277337 Elbow Price: Call Us
109 277669 Line, Oil Price: Call Us
110 271151 Rod-Throttle Price: Call Us
111 4819401 Ball Price: Call Us
112 X-489-8 Rod Breaker Push Price: Call Us
113 220174 Gasket, Cover Price: Call Us
114 220074 Diaphram Price: Call Us
115 232535 Cover Price: Call Us
116 271547 Spring Governor Price: Call Us
117 275691 Screw Shoulder Price: Call Us
118 277080 Lever-Throttle Price: Call Us
119 A-277905 Housing, Breather (Includes Valve) Price: Call Us
120 277431 Washer, Tension Price: Call Us
121 4815002 Breaker Price: Call Us
