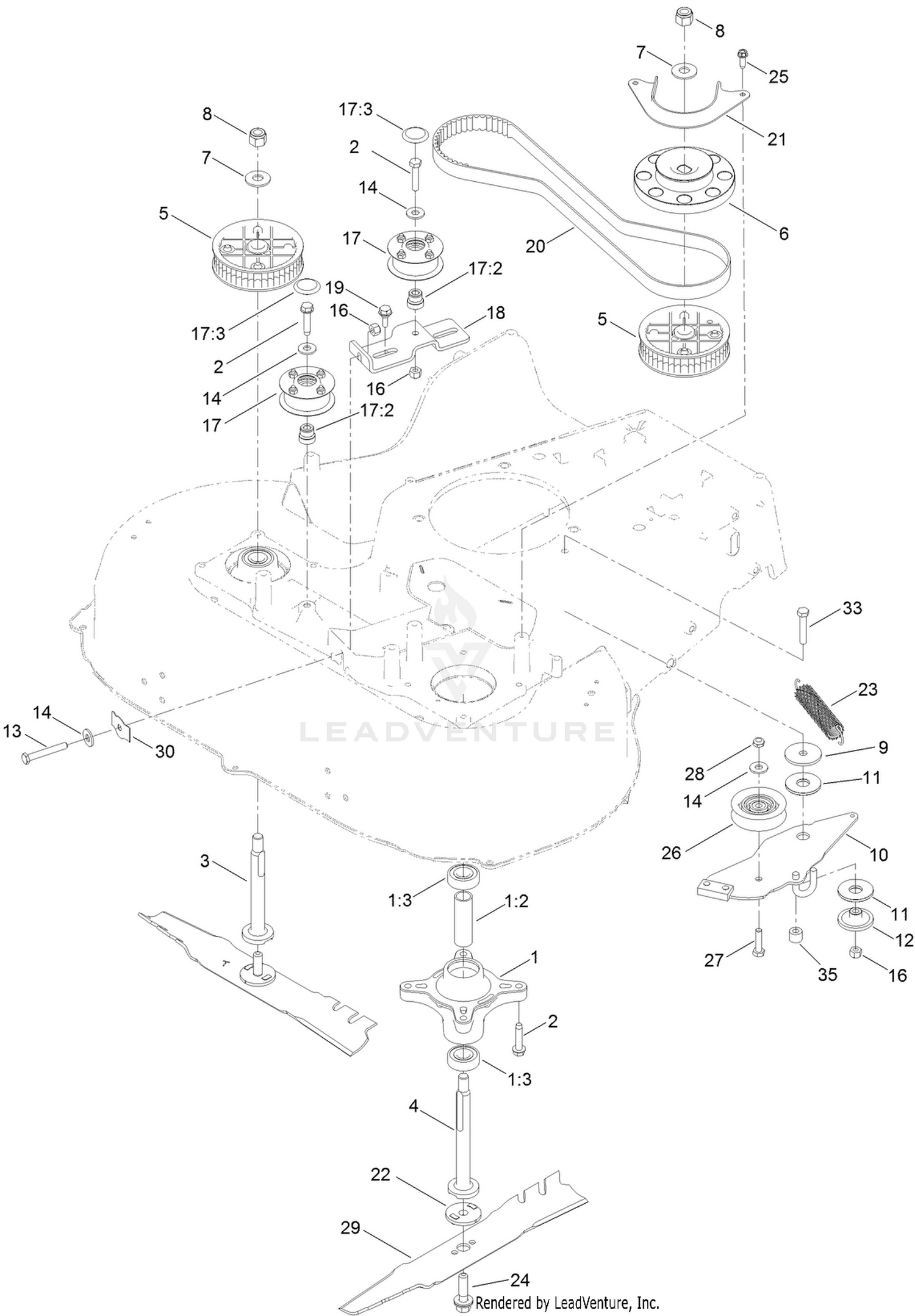

Spindle and Belt Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-9107 | SPINDLE ASM Price: $48.84 |
| 2 | 139-1731 | SCREW-THD ROLL, HWH Price: $0.67 |
| 3 | 139-6612 | SHAFT-SPINDLE Price: $19.54 |
| 4 | 139-6613 | SHAFT-SPINDLE Price: $20.42 |
| 5 | 121-9100 | SPROCKET Price: $34.41 |
| 6 | 130-6664 | PULLEY-BRAKE, SPINDLE Price: $33.33 |
| 7 | 109-9505 | WASHER-SPRING Price: $4.49 |
| 8 | 139-1725 | NUT-HEX Price: $0.66 |
| 9 | 139-1726 | WASHER-REBOUND Price: $1.46 |
| 10 | 133-8102 | BRAKE ARM ASM Price: $31.74 |
| 11 | 121-2305 | WASHER-FRICTION, COMPOSITE Price: $2.93 |
| 12 | 138-3244 | SPACER Price: $6.35 |
| 13 | 139-1728 | BOLT-HH FT Price: $1.29 |
| 14 | 139-1723 | WASHER-FLAT Price: $0.29 |
| 16 | 119-4038 | NUT-HEX Price: $0.31 |
| 17 | 139-1758 | PULLEY KIT Price: $19.98 |
| 18 | 138-3232 | BRACKET-IDLER Price: $6.81 |
| 19 | 139-1730 | SCREW-SHOULDER, HHF Price: $1.01 |
| 20 | 120-3335 | BELT-SYNCHRONOUS Price: $61.28 |
| 21 | 120-5245-03 | GUIDE-BELT, SPINDLE Price: $4.49 |
| 22 | 120-5236 | ADAPTER-BLADE Price: $4.71 |
| 23 | 121-5808 | SPRING-EXTENSION, BRAKE Price: $11.49 |
| 24 | 125-2466 | BOLT-BLADE Price: $2.20 |
| 25 | 49-2040 | SCREW-HWHTF Price: $1.99 |
| 26 | 120-7082 | PULLEY-IDLER Price: $15.72 |
| 27 | 120-9696 | SCREW-HH Price: $0.31 |
| 28 | 137-3089 | NUT-HEX Price: $0.34 |
| 29 | 116-6358-03 | BLADE-ROTARY Price: $21.88 |
| 30 | 121-2336 | SPRING-FLAT Price: $4.95 |
| 33 | 139-1719 | SCREW-HH Price: $0.56 |
