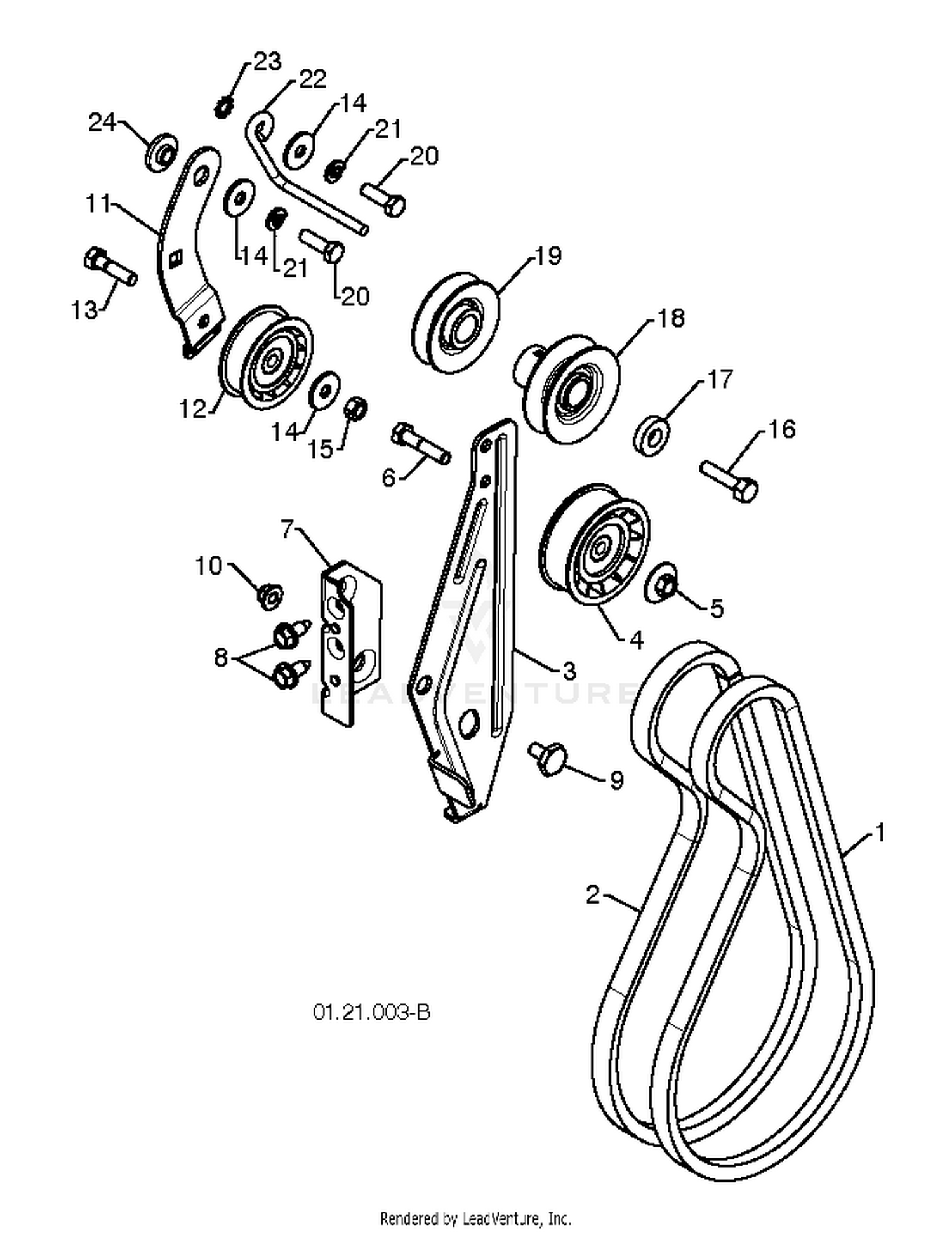

| Ref | Part Number | Description |
|---|
| 1 |
532408007 |
BELT.V.IMPELLER Price: $28.99 |
| 2 |
532419744 |
V-BELT.TRACTION Price: $22.99 |
| 3 |
532423723 |
ARM.IDLER.BRAKE.PNT.BLACK This part replaces 532435802. Price: $10.99 |
| 4 |
532180523 |
PULLEY.W/SPACER.2.75 Price: $17.99 |
| 5 |
532426589 |
NUT.FLANGE.HEX.5/16X18.BLACK Price: $2.99 |
| 6 |
539976935 |
HCS.5/16-18X1 1/2.GR5 This part replaces 874780524. Price: $1.99 |
| 7 |
532423990 |
BRACKET.IDLER.PIVOT.BLACK This part replaces 532435801. Price: $3.99 |
| 8 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $2.49 |
| 9 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $2.99 |
| 10 |
115-4105 |
GEAR CASE ASM This part replaces 107-9068. Price: $560.23 |
| 10 |
532751153 |
NUT, LOCK 5/16-18 Price: $1.99 |
| 11 |
532192128 |
ARM.ASM.IDLER.(TRACTION).HYDRO This part replaces 532187786. Price: $15.99 |
| 12 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $17.99 |
| 13 |
874520520 |
Bolt 5/16-18 x 1-1/4 This part replaces 874780520. Price: $2.99 |
| 14 |
532059289 |
STEEL WASHER Price: $2.99 |
| 15 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 16 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.69 |
| 17 |
532400026 |
WASHER, FLAT 3/8 Price: $2.99 |
| 18 |
532426491 |
PULLEY.IMPELER. Price: $14.99 |
| 19 |
532426490 |
PULLEY.ENG.TRACTION Price: $11.99 |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 20 |
874610516 |
SCREW Price: $2.99 |
| 21 |
810040500 |
LOCKWASHER Price: $2.99 |
| 22 |
532155452 |
GUIDE BELT Price: $3.99 |
| 23 |
810040500 |
Washer Lock Hvy Hlcl Spr 5/16 This part replaces 811050500. Price: $2.99 |
| 25 |
98-7487 |
PLUG Price: $3.18 |
| 30 |
98-7562 |
WASHER-PLAIN Price: $0.36 |
| 40 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 50 |
98-9544 |
SPRING Price: $0.94 |
| 60 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 70 |
98-9380 |
BALL Price: $0.84 |
| 80 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 85 |
107-9069 |
COVER-PUMP, OIL Price: $27.77 |
| 90 |
107-9071 |
SCREW Price: $0.36 |
| 100 |
107-9072 |
PIN-STRAIGHT Price: $0.28 |
| 110 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 120 |
100-1765 |
BOLT This part replaces 107-9073. Price: $1.59 |
| 130 |
105-3797 |
BOLT Price: $1.40 |
| 140 |
98-9356 |
BOLT Price: $2.06 |
| 150 |
107-9074 |
BOLT Price: $1.43 |
| 160 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 170 |
105-3709 |
STUD Price: $1.13 |
| 180 |
98-7572 |
NUT Price: $0.32 |
| 190 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 200 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 210 |
105-3710 |
STUD Price: $1.16 |
