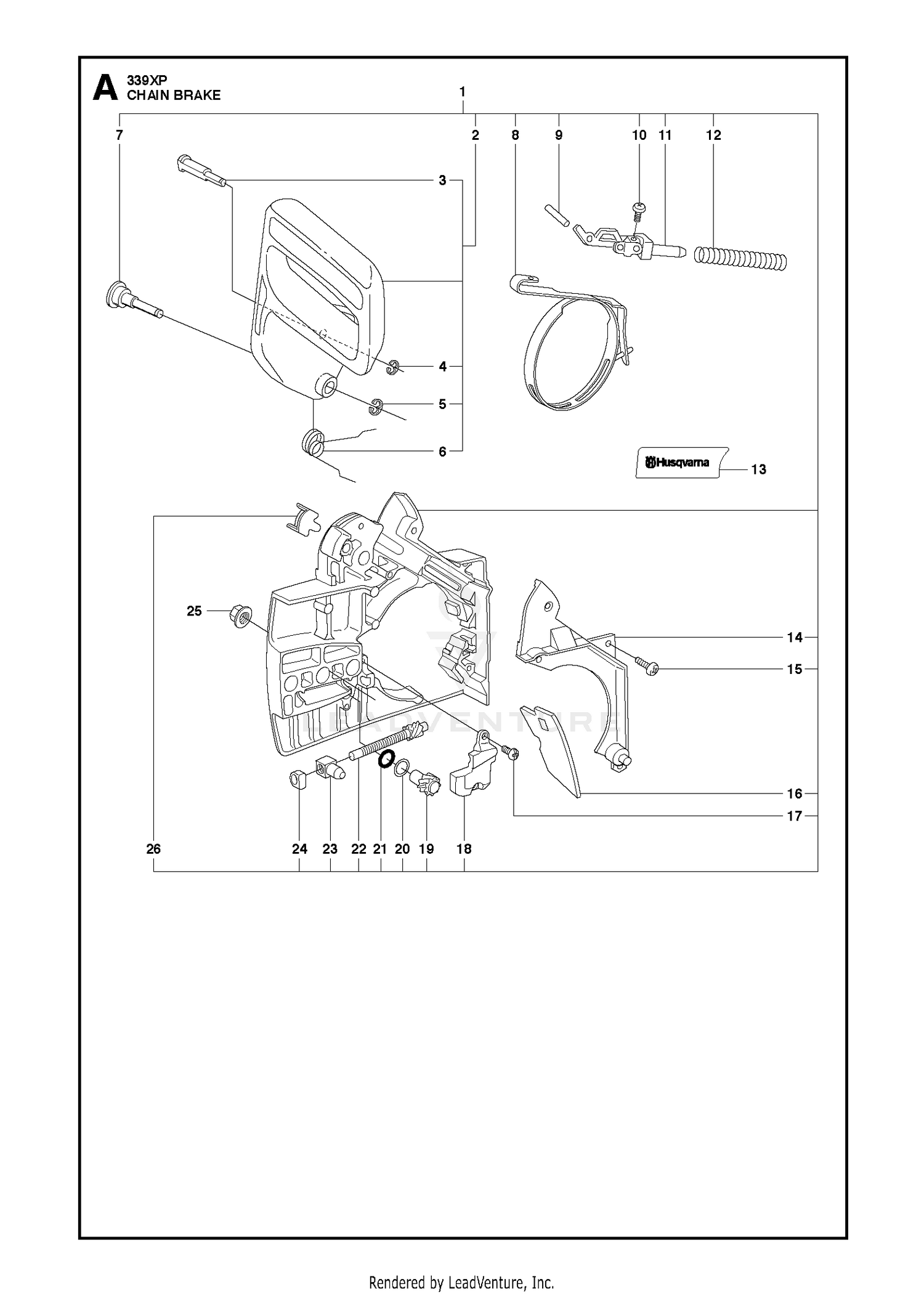

CHAIN BRAKE
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544005504 | CHAIN BRAKE ASSY Price: $84.99 |
| 2 | 537099001 | HAND GUARD Price: $27.99 |
| 3 | 503854601 | PIN Price: $17.99 |
| 4 | 735310820 | E-RING 4 Price: $2.99 |
| 5 | 735311020 | C-WASHER Price: $2.99 |
| 6 | 537092802 | POSITION SPRING Price: $5.99 |
| 7 | 503817101 | SHAFT PIVOT Price: $12.99 |
| 8 | 503809703 | BRAKE BAND ASSY Price: $8.99 |
| 9 | 720123300 | PIN 3X10 Price: $2.99 |
| 10 | 503212810 | SCREW Price: $2.99 |
| 11 | 501875301 | KNEE-JOINT Price: $19.99 |
| 12 | 503908301 | SPRING Price: $4.99 |
| 13 | 537429501 | LABEL Price: $3.99 |
| 14 | 503805201 | COVER Price: $9.99 |
| 15 | 503212810 | SCREW Price: $2.99 |
| 16 | 503855101 | PROTECTOR Price: $4.99 |
| 17 | 503212810 | SCREW Price: $2.99 |
| 18 | 537396901 | COVER Price: $3.99 |
| 19 | 537079402 | WORM WHEEL Price: $9.99 |
| 20 | 503230063 | WASHER Price: $3.99 |
| 21 | 740480702 | O-RING Price: $3.99 |
| 22 | 537397001 | SCREW Price: $9.99 |
| 23 | 588850301 | PIN BAR ADJUSTING Price: $4.99 |
| 24 | 537017401 | SLEEVE Price: $4.99 |
| 25 | 503220001 | NUT M8 FLANGE Price: $2.99 |
