| Ref | Part Number | Description |
|---|
| 1 |
165892 |

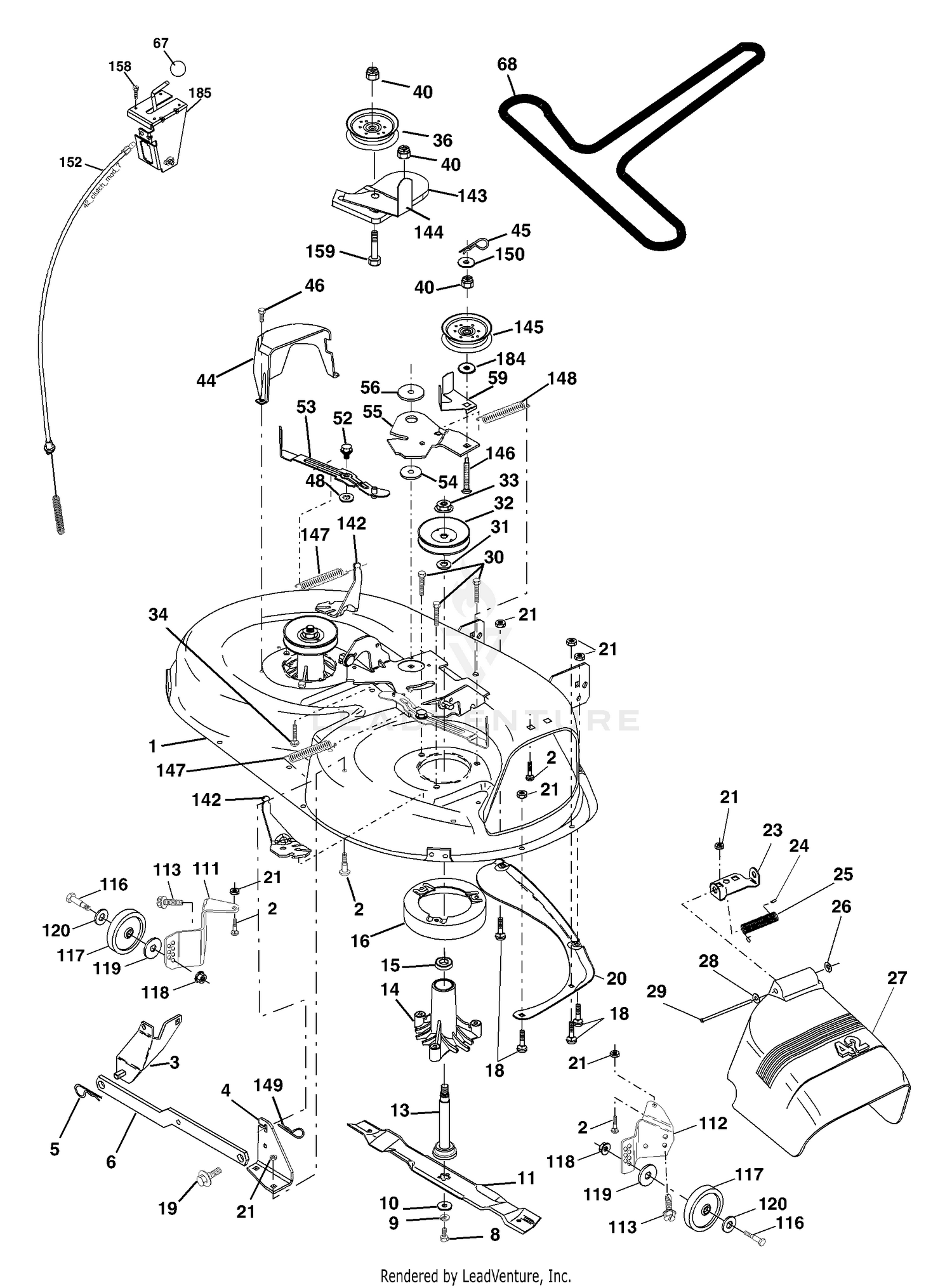

Mower Deck Assembly, 42" Price: Call Us |
| 1 |
98-7375 |
GASKET-NOZZLE Price: $11.91 |
| 2 |
107-4831 |
SUPPORT-NOZZLE Price: $37.41 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
99-2166 |
BOLT W/WASHER Price: $4.31 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
99-2167 |
CAP Price: $9.05 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
99-2168 |
OIL HOSE ASM Price: $22.68 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
99-2169 |
CLIP Price: $1.34 |
| 7 |
56-0750 |
CLAMP Price: $15.09 |
| 8 |
56-0760 |
CLAMP Price: $7.97 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
99-2179 |
BOLT W/WASHER Price: $2.57 |
| 10 |
107-4832 |
PIPE-INJECTION #1 Price: $825.76 |
| 11 |
107-4833 |
PIPE-INJECTION #2 Price: $825.76 |
| 12 |
107-4834 |
PIPE-INJECTION #3 Price: $818.90 |
| 13 |
107-4835 |
PIPE-INJECTION #4 Price: $760.02 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
107-4836 |
PIPE-RETURN, FUEL Price: $115.40 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
107-4837 |
STAY Price: $60.16 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
107-4838 |
STAY-PIPE Price: $104.24 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
107-4839 |
WASHER-SEALING Price: $3.20 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 18 |
99-1810 |
BOLT W/WASHER Price: $2.19 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
99-1825 |
BOLT W/WASHER Price: $2.14 |
| 20 |
108-1596 |
FLANGE-PUMP Price: $1,431.32 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 21 |
99-1865 |
O-RING This part replaces 107-4840. Price: $38.32 |
| 22 |
107-4387 |
O-RING Price: $10.43 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
86-6390 |
STUD Price: $15.99 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
107-4842 |
NUT-FLANGE Price: $2.38 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
99-1811 |
BOLT W/WASHER Price: $2.70 |
| 26 |
107-4843 |
BRACKET-PUMP, INJECTION Price: $45.33 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
107-4844 |
BRACKET-PUMP, INJECTION Price: $24.89 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
107-4845 |
BOLT W/WASHER Price: $3.83 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
107-4846 |
NUT-FLANGE Price: $1.49 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
108-1599 |
STAY Price: $11.93 |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 31 |
108-1597 |
WASHER Price: $1.36 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
107-4849 |
BOLT W/WASHER Price: $3.57 |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock 9/16 Flange Price: Call Us |
| 33 |
70-2990 |
WASHER Price: $1.38 |
| 34 |
107-4847 |
BOLT-FLANGE Price: $2.75 |
| 34 |
72110612 |
Bolt Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 39 |
112-0162 |
INJECTION PUMP ASM Price: $11,283.94 |
| 40 |
73900600 |
Nut Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 67 |
106932X |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 111 |
179292 |
Bracket Wheel Guage LH Price: Call Us |
| 112 |
179293 |
Bracket Wheel Gauge RH Price: Call Us |
| 113 |
72140506 |
Bolt Rdhd Sqnk 5/16-18 unc x 3/4 Price: Call Us |
| 116 |
4898H |
Bolt Shoulder Price: Call Us |
| 117 |
105455X |
Wheel Guage Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
19171512 |
Washer 17/32 x 15/16 x 12 Ga. Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
| 501 |
105-0558 |
HOSE Price: $14.59 |
