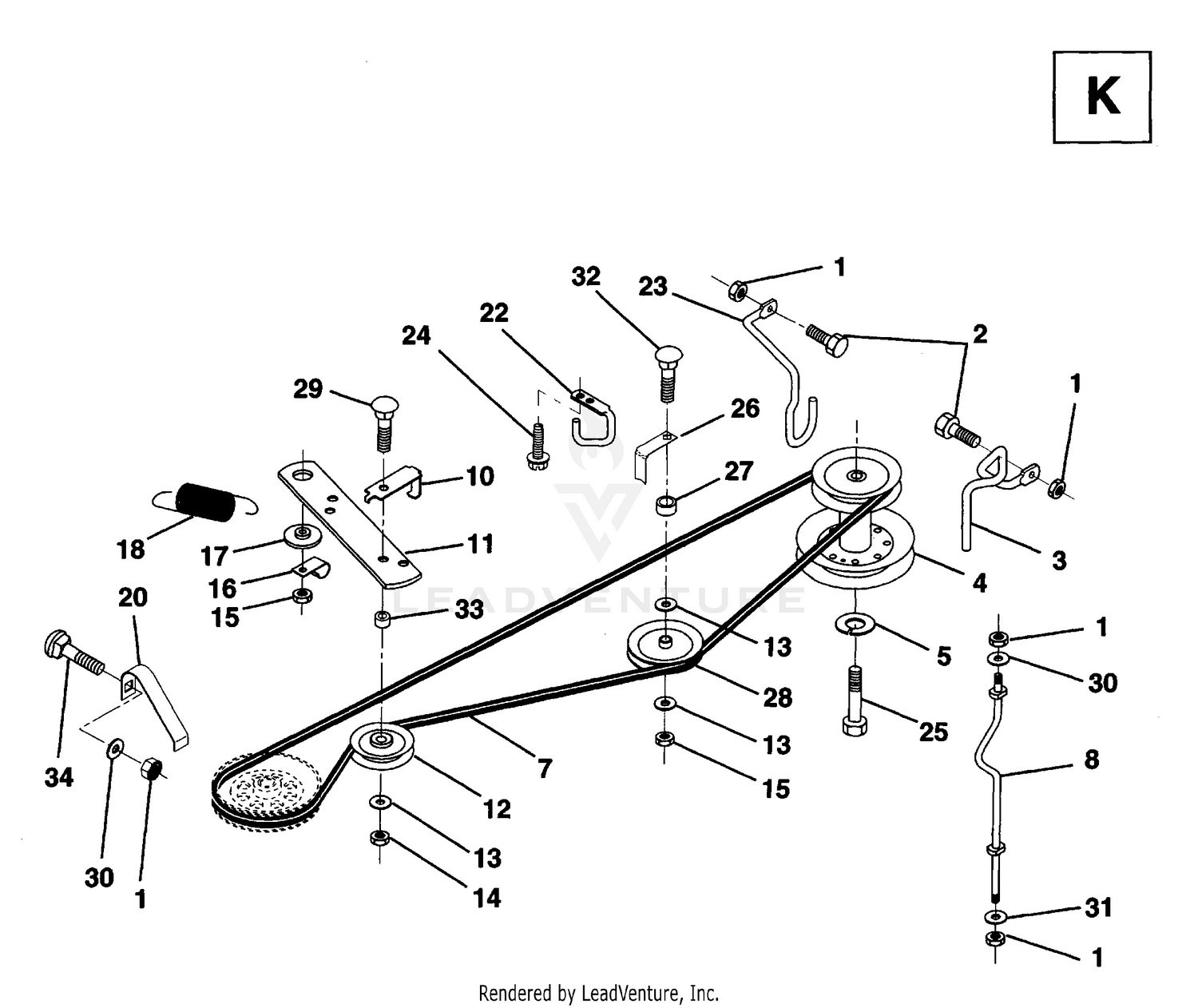

| Ref | Part Number | Description |
|---|
| 1 |
120-6049 |
FRAME AND AXLE ASM Price: $6,666.99 |
| 1 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 2 |
119-6224 |
SEE NOTES Price: $361.87 |
| 2 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 3 |
T0000-3423 |
JACK-SIDEWIND This part replaces 106-9699. Price: $134.35 |
| 4 |
110-7518-03 |
PLATE-HITCH, LH Price: $55.90 |
| 4 |
532138029 |
PULLEY.ENGINE.36/38 LR Price: $48.99 |
| 5 |
110-7519-03 |
PLATE-HITCH, RH Price: $68.60 |
| 5 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 6 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550-03. Price: $161.64 |
| 7 |
327-17 |
SCREW-HH Price: $8.50 |
| 7 |
532140910 |
V-BELT 77.75 Price: $39.99 |
| 8 |
327-12 |
SCREW-HH Price: $7.26 |
| 8 |
532140785 |
KEEPER Price: $5.91 |
| 9 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 10 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 10 |
532140780 |
KEEPER, BELT Price: $2.42 |
| 11 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 11 |
532140911 |
ARM/GROUND DRIVE CLUTCH Price: $4.35 |
| 12 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 13 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 14 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 16 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 17 |
13-6890-01 |
GUIDE-ROPE Price: $119.16 |
| 17 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 18 |
13-6910-01 |
SPACER-GUIDE, ROPE Price: $18.39 |
| 18 |
532131459 |
SPRING.EXTENSION Price: $4.99 |
| 19 |
2412-40 |
CLAMP-CONDUIT Price: $6.72 |
| 20 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 20 |
532140909 |
KEEPER, BELT Price: $2.99 |
| 21 |
32104-96 |
SCREW-HH Price: $5.59 |
| 22 |
106-0262-01 |
MOUNT-HARNESS Price: $23.39 |
| 22 |
532123404 |
KEEPER,FRA DR BEL Price: $3.22 |
| 23 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 23 |
532140916 |
KEEPER-MOWER DRIVE LH Price: $5.99 |
| 24 |
323-6 |
SCREW-HH Price: $0.66 |
| 24 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 25 |
121-2778-03 |
GUARD-BELT Price: $374.83 |
| 25 |
871170744 |
Bolt, Hex Hd. 7/16-20 UNF Grade 5 Price: $2.99 |
| 26 |
121-2784-03 |
GUARD-FOOT Price: $299.44 |
| 26 |
532140913 |
KEEPER, BELT Price: $5.99 |
| 27 |
121-2682-03 |
GUARD-BRUSH, LH Price: $56.94 |
| 27 |
532140914 |
SPACER Price: $3.99 |
| 28 |
121-2683-03 |
COVER-BRUSH, RH Price: $71.29 |
| 28 |
532139123 |
PULLEY.IDLER.V. Price: $32.99 |
| 29 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $4.99 |
| 30 |
121-2686-03 |
COVER-BRUSH, CENTER Price: $87.34 |
| 30 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 31 |
105-4886 |
NUT-TINNERMAN Price: $2.37 |
| 31 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 32 |
110-5052 |
SCREW-HHF Price: $1.22 |
| 32 |
596337801 |
Bolts This part replaces 872140620. Price: $4.99 |
| 33 |
532000160 |
SPACER NLA Price: $4.86 |
| 34 |
121-2706-03 |
SUPPORT-COVER Price: $25.32 |
| 34 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 36 |
321-4 |
SCREW-HH Price: $0.99 |
