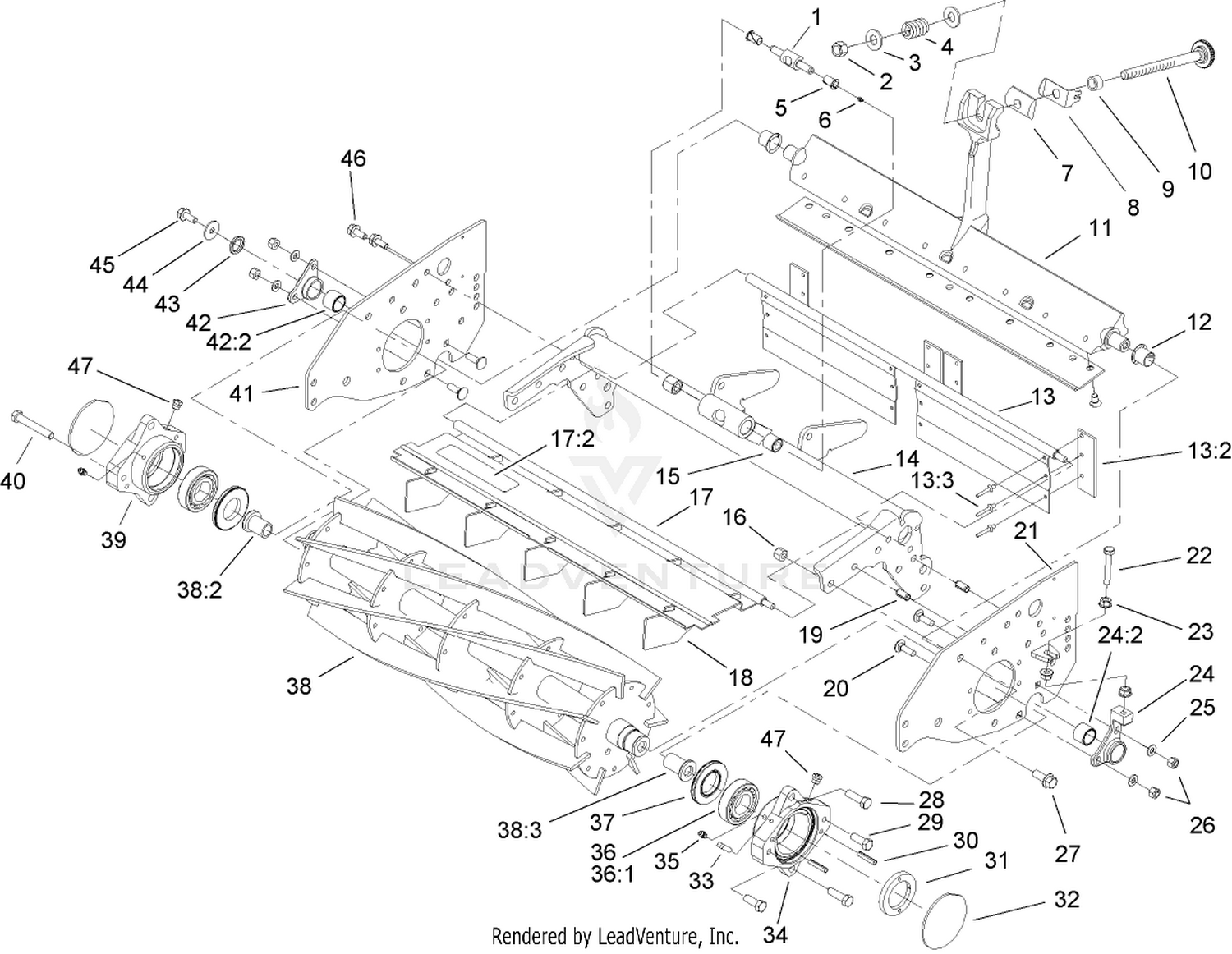

| Ref | Part Number | Description |
|---|
| 1 |
107-7409 |
PIN-PIVOT, BEDBAR Price: $33.41 |
| 2 |
3296-62 |
NUT-LOCK,NI Price: $5.72 |
| 3 |
29-8910 |
WASHER Price: $0.75 |
| 4 |
95-0772 |
SPRING-COMPRESSION Price: $5.63 |
| 5 |
52-2890 |
BUSHING-NYLON Price: $2.49 |
| 6 |
302-18 |
FITTING-GREASE Price: $3.46 |
| 7 |
93-2892 |
PIVOT-BEDBAR, MANUAL ADJUST Price: $5.00 |
| 8 |
95-8752 |
ARM-SPRING Price: $14.79 |
| 9 |
93-2959 |
SPACER-ADJUSTER Price: $6.41 |
| 10 |
106-7536 |
BEDBAR ADJUSTER ASM Price: $15.80 |
| 12 |
93-7502 |
BUSHING-FLANGED Price: $3.17 |
| 13 |
100-2289 |
REAR GRASS SHIELD ASM Price: $143.52 |
| 14 |
100-4994-01 |
FRAME-REEL Price: $389.60 |
| 15 |
62-5510 |
BUSHING-RUBBER Price: $7.42 |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
100-9900 |
FRONT GRASS SHIELD ASM Price: $193.89 |
| 18 |
100-2287 |
DEFLECTOR-SHIELD, GRASS Price: $4.33 |
| 19 |
32121-36 |
PIN-SPRING Price: $2.56 |
| 20 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 21 |
100-2268-01 |
LH SIDEPLATE ASM Price: $57.84 |
| 22 |
94-3489 |
SCREW-HH Price: $1.70 |
| 23 |
33004-00 |
NUT-HF Price: $0.34 |
| 24 |
100-3381 |
LH PIVOT HUB ASM Price: $66.05 |
| 25 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 27 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 28 |
323-7 |
SCREW-HH Price: $0.65 |
| 29 |
323-6 |
SCREW-HH Price: $0.66 |
| 30 |
32121-69 |
PIN-SPRING Price: $1.79 |
| 31 |
95-2793 |
NUT-ADJUSTMENT, BEARING Price: $27.61 |
| 32 |
94-2703 |
PLUG Price: $1.86 |
| 33 |
105-6758 |
SETSCREW-SQH Price: $3.22 |
| 34 |
105-6755 |
HOUSING-BEARING, LH Price: $183.99 |
| 35 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 37 |
107-4028 |
SEAL-GREASE This part replaces 105-6757. Price: $21.51 |
| 39 |
105-6759 |
HOUSING-BEARING, RH Price: $183.99 |
| 40 |
323-12 |
SCREW-HH Price: $1.14 |
| 41 |
100-2267-01 |
SIDEPLATE Price: $47.32 |
| 42 |
100-3380 |
RH PIVOT HUB ASM Price: $66.05 |
| 43 |
93-7510 |
RING-QUAD Price: $0.85 |
| 44 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 45 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 46 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 47 |
302-34 |
FITTING-LUBE Price: $10.99 |
