Home / OPE / Garden Tractor / 73 2050036U / Engine-K161 Series-7 Hp

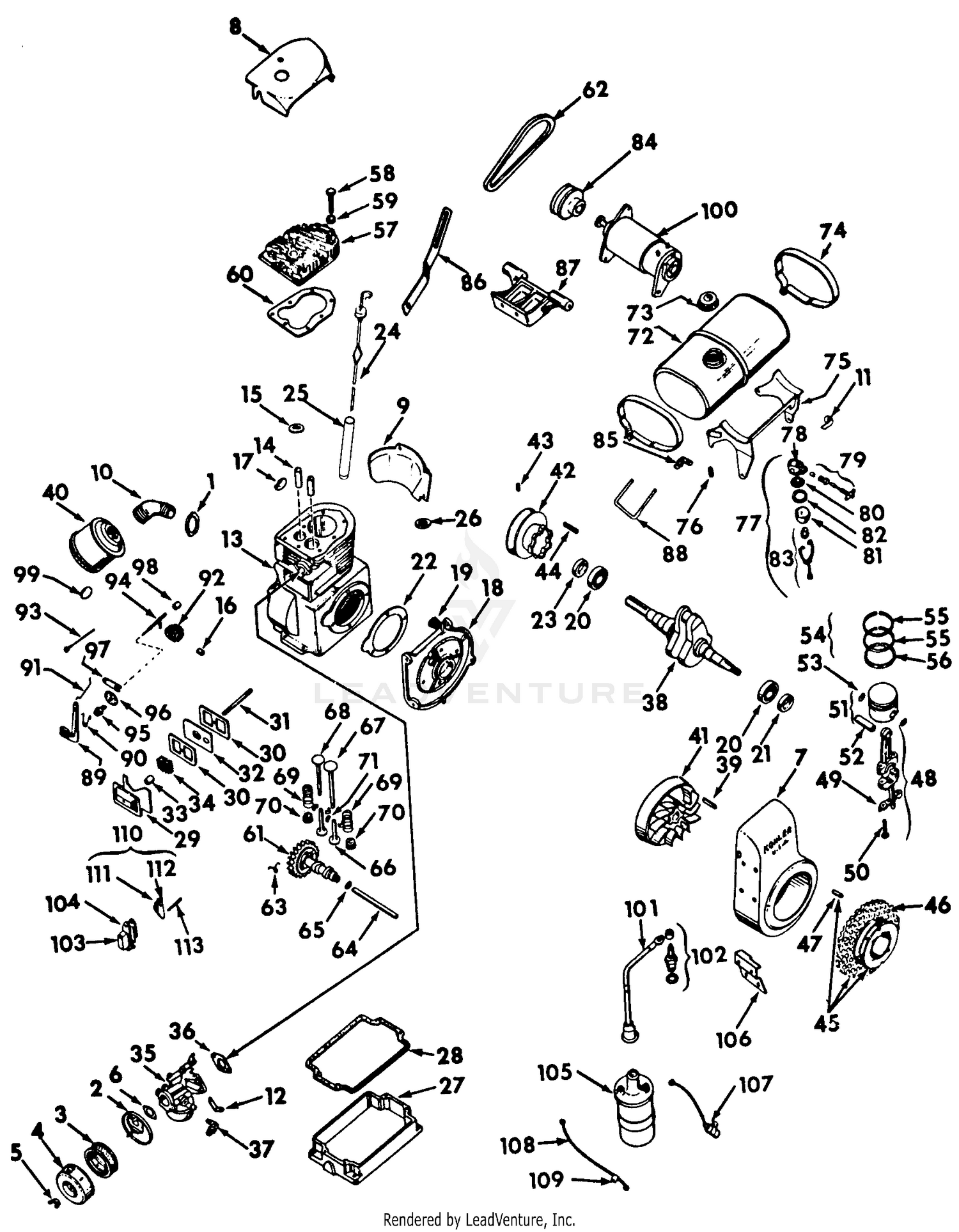

Engine-K161 Series-7 Hp

Engine-K161 Series-7 Hp

Parts (102)

RefPart NumberDescription
1 712-0250 CONDUIT L-NUT Not Available Price:
2 KH-230838 BASE Not Available Price:
3 IH-385163-R2 ELEMENT-AIR Not Available Price:
4 KH-230839 COVER, AIR CLEANER Not Available Price:
5 KH-25-100-15-S WING NUT 1/4-20 Not Available This part replaces KH-X-276-7. Price:
6 KH-220537 GASKET Not Available Price:
7 None Housing Assy, Blower
8 KH-234402 Baffle, Cylinder Head Air Price: Call Us
9 KH-230054 BAFFLE Not Available Price:
10 KH-231820-S ELBOW Not Available This part replaces KH-231820. Price:
11 IH-263515-R91 Clip, Choke Cable Price: Call Us
14 KH-230007-S GUIDE Not Available Price:
15 KH-230170 INSERT Not Available Price:
16 None Shaft, Governor
17 IH-172548 Plug, 1-1/8 Expansion Price: Call Us
18 None Plate, Crankcase Brg
19 None Plug, 5/8 Button, Crankcase Bearing Plate
20 941-3033A Bearing, Ball This part replaces IH-ST213. Price: $50.07
22 KH-230071 GASKET Not Available Price:
24 KH-A-231725 DIPSTICK ASSEMBLY Not Available Price:
25 KH-231726 TUBE Not Available Price:
26 KH-230265 INSERT Not Available Price:
27 KH-41-199-08 PAN Not Available Price:
28 KH-41-041-03 GASKET Not Available Price:
29 None Cover w/Filter, Breather
30 KH-230048 GASKET Not Available Price:
31 None Stud, Breather Cover
32 KH-230066 BREATHER Not Available Price:
33 KH-230046 SEAL Not Available Price:
34 KH-231419-S FILTER Not Available This part replaces KH-231419. Price:
36 KH-210223 GASKET Not Available Price:
37 KH-25-326-03-S CONNECTOR Not Available This part replaces KH-X-380-1. Price:
38 KH-231510 ELBOW Not Available Price:
39 714-3016 SQUARE KEY PARALLEL 3/16 x 1.75 N Not Available Price:
40 KH-230410 MUFFLER Not Available Price:
41 KH-231276 FLYWHEEL Not Available Price:
42 KH-231591 Pulley w/Clutch Drive Plate, Flywheel Price: $214.34
43 KH-X-60-50 SCREW, 5/16-18 x 3/8 HEX SOC HD SET (UNIT B) Not Available Price:
44 IH-452779-R2 KEY Not Available This part replaces IH-452779-R1. Price:
45 KH-41-071-04 CUP ASSEMB Not Available Price:
46 None Screen, Drive Cup Grass
47 IH-385293-R1 PIN Not Available Price:
48 KH-B-230039 ROD ASSEMBLY-CONNECTIN Not Available Price:
49 KH-230525 LOCK-CONNE Not Available Price:
50 None Screw, Connecting Rod
51 KH-41-874-01 PISTON W/RINGS KIT Not Available Price:
52 None Pin, Piston, Std
53 KH-230004 RETAINER Not Available Price:
54 KH-231424 KIT-PISTON RING S Not Available Price:
57 KH-41-755-25 KIT-CYLINDER HEAD Not Available Price:
58 KH-41-086-02 SCREW Not Available This part replaces IH-454871. Price:
59 KH-220534 WASHER-CYLINDER HE Not Available Price:
60 KH-41-041-10 GASKET Not Available Price:
61 KH-A-230155-S KIT-CAMSHA Not Available Price:
62 IH-401960-R1 Belt, Motor Generator Drive Price: $15.79
63 KH-47-089-01 SPRING Not Available Price:
64 KH-41-380-03 PIN, CAMSHAFT Not Available Price:
65 KH-230293 SPACER Not Available Price:
66 None Tappet, Valve
67 KH-230008 VALVE Not Available Price:
68 KH-230710 VALVE Not Available Price:
69 KH-230010 SPRING Not Available Price:
70 KH-230011 RETAINER-SPRING Not Available Price:
72 KH-230164 TANK Not Available Price:
73 KH-236655 CAP Not Available Price:
74 KH-A-234167 STRAP Not Available Price:
75 KH-234168 BRACKET Not Available Price:
76 None Nipple, 1/8 X 3/4 C-Z Pipe
77 KH-25-755-22 KIT-IN LINE FILTER Not Available This part replaces KH-A-210101. Price:
78 KH-210478 TOP Not Available Price:
79 KH-A-210480 VALVE ASSEMBLY Not Available Price:
80 KH-210479 SCREEN Not Available Price:
81 KH-210467 BOWL Not Available Price:
82 KH-210468 GASKET Not Available Price:
83 KH-A-210477 BAIL ASSEMBLY Not Available Price:
84 KH-231278-S PULLEY-GENERATOR Not Available This part replaces KH-231278. Price:
85 KH-25-326-03-S CONNECTOR Not Available This part replaces KH-X-380-1. Price:
86 KH-231273-S BRACE Not Available This part replaces KH-231273. Price:
87 None Bracket, Motor Generator Mounting
88 IH-401968-R1 HOSE Not Available Price:
89 KH-232614 LEVER Not Available Price:
90 KH-232617 SPRING Not Available Price:
91 KH-230078 LINKAGE Not Available Price:
92 KH-A-235743-S GEAR Not Available Price:
93 KH-231355-S PIN Not Available This part replaces KH-231355. Price:
94 KH-230540-S SHAFT Not Available Price:
95 KH-230476 BUSHING Not Available Price:
96 KH-230149 DISC Not Available Price:
97 KH-230477 BRACKET Not Available Price:
98 KH-234866 BEARING Not Available Price:
99 IH-172548 Plug, 1-1/8 Expansion Price: Call Us
101 KH-238057-S KIT-HI TENSION LEA Not Available This part replaces KH-238057. Price:
102 759-3339 SPARK PLUG J8C Not Available This part replaces IH-J8C. Price:
103 KH-52-041-11-S GASKET Not Available This part replaces KH-52-041-11. Price:
104 KH-232535-S COVER Not Available This part replaces KH-232535. Price:
105 KH-41-519-21-S COIL-IGNITION This part replaces KH-231281. Price: $145.89
106 None Bracket, Coil Mounting
107 KH-230722-S CONDENSER This part replaces IH-62188-C1. Price: $30.51
108 KH-A-230371 LEAD Not Available Price:
109 KH-230249 CLIP Not Available Price:
110 KH-47-150-03 Bracket & Breaker Assy Price: $22.85
111 KH-47-150-03 Bracket & Breaker Assy This part replaces IH-62189-C1. Price: $22.85
