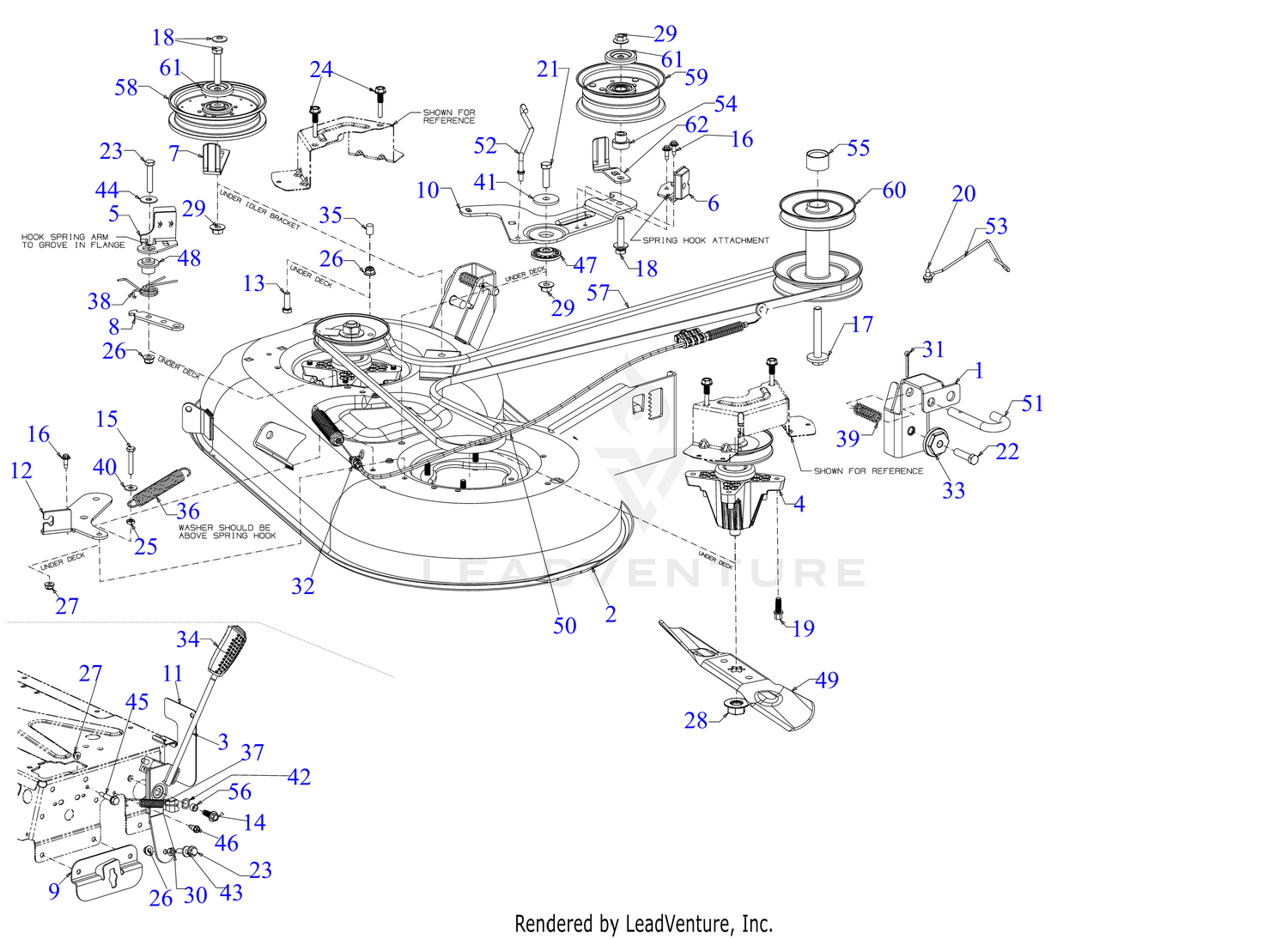

| Ref | Part Number | Description |
|---|
| 5 |
983-05396 |
DECK BRAKE ASSEMBLY Price: $88.32 |
| 6 |
983-05398 |
DECK BRAKE ASSEMBLY Price: $30.41 |
| 10 |
903-10991 |
IDLER PIVOT BRACKET Price: $35.80 |
| 13 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 14 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 15 |
710-05289 |
SCREW 1/4-20 x 1.50 GR8 Price: $4.83 |
| 16 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 17 |
710-06151 |
SCREW-SEMS 7/16-20 x 3.25 PATCH Not Available Price: |
| 18 |
710-06178 |
SCREW 3/8-16 x 2.0 Price: $5.52 |
| 19 |
710-06322 |
SCREW 5/16-18 x .875 Price: $4.55 |
| 20 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 21 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 22 |
710-3120 |
SCREW 3/8-16X1.5 GR5 Price: $3.64 |
| 23 |
710-3180 |
SCREW 5/16-18 x 1.75 GR5 Price: $4.93 |
| 24 |
711-06112 |
BELT KEEPER ROD .25 x 1.585 Price: $3.74 |
| 25 |
912-0298 |
HEX JAM NUT 1/4-20 Price: $5.38 |
| 26 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 27 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 28 |
712-0417A |
HEX NUT Price: $6.50 |
| 29 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 30 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 31 |
714-0162 |
COTTER PIN-5/32 DIA Price: $4.29 |
| 32 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 33 |
917-05298 |
DECK ADJUSTMENT GEAR Price: $11.65 |
| 34 |
720-04140B |
GRIP Price: $13.40 |
| 35 |
720-05010 |
VINYL CAP Price: $3.70 |
| 36 |
732-04629 |
EXTENSION SPRING Price: $25.15 |
| 37 |
732-05119 |
EXTENSION SPRING .56 OD x 4.52 Price: $8.29 |
| 38 |
732-05151A |
TORSION SPRING Price: $3.70 |
| 39 |
932-3127 |
COMPRESSION SPRING .66 OD x 1 Price: $3.82 |
| 40 |
736-0173 |
FLAT WASHER .28 ID x .74 OD x .063 Price: $3.76 |
| 41 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 42 |
936-0504 |
WAVE WASHER Price: $3.90 |
| 43 |
936-3008 |
FLAT WASHER.344X.75X.1 Price: $6.24 |
| 44 |
736-3078 |
FLAT WASHER 344X1.00 Price: $3.95 |
| 45 |
738-04185 |
SHOULDER SCREW Price: $7.45 |
| 46 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 47 |
738-05099 |
SHOULDER SPACER Price: $6.47 |
| 48 |
738-05272 |
DOUBLE SHOULDER SPACER .750 x .135 Price: $6.24 |
| 50 |
946-05358A |
PTO CABLE Price: $53.73 |
| 51 |
747-06292 |
DECK RELEASE PIN Price: $10.24 |
| 52 |
747-06807 |
DECK BRAKE ROD (RH) Price: $27.24 |
| 53 |
747-06947 |
PTO CABLE GUIDE Price: $7.47 |
| 54 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 55 |
748-05078A |
ENGINE PULLEY SPACER Price: $6.37 |
| 56 |
750-0526 |
SPACER Price: $3.96 |
| 57 |
954-05158 |
V-TYPE BELT A SEC x 111.1 Price: $63.89 |
| 58 |
756-04511B |
FLAT IDLER PULLEY Price: $49.33 |
| 59 |
756-05034A |
IDLER PULLEY 4.50" DIA Price: $40.14 |
| 60 |
756-05226 |
MANUAL PTO ENGINE PULLEY Not Available Price: |
| 61 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
