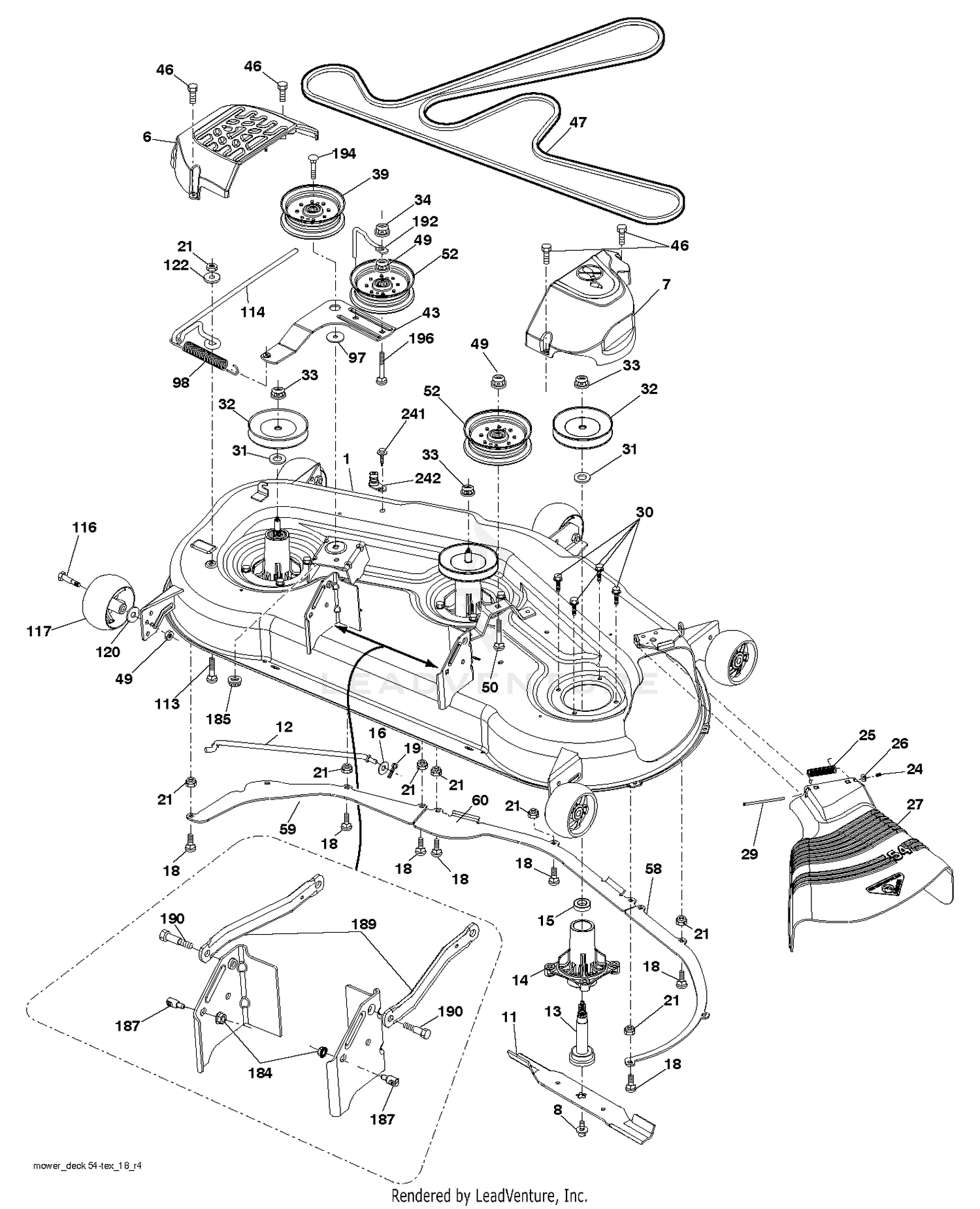

| Ref | Part Number | Description |
|---|
| 1 |
103-1802 |
FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99 |
| 1 |
532199298 |
DECK.WLDMNT.54".5GWB.GREY This part replaces 532195632. Price: $349.99 |
| 2 |
353-508 |
PLUG-HH Price: $7.96 |
| 3 |
321-8 |
SCREW-HH Price: $0.34 |
| 4 |
21-1450 |
DISCONTINUED Price: Call Us |
| 5 |
233-17 |
KNOB Price: $10.58 |
| 6 |
21-2010 |
Handle Valve Price: Call Us |
| 7 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
21-4940 |
FITTING ASM Price: $79.78 |
| 10 |
3217-5 |
NUT-HEX Price: $0.25 |
| 11 |
21-3550 |
DISCONTINUED Price: Call Us |
| 11 |
532187256 |
BLADE.BAGGING.54" Price: $17.99 |
| 12 |
353-507 |
DISCONTINUED Price: Call Us |
| 12 |
532400337 |
ROD.ANTI.SWAY.48/54"TE Price: $17.99 |
| 13 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 13 |
532187291 |
SHAFT ASM MANDREL Price: $17.99 |
| 14 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 15 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 16 |
323-4 |
SCREW-HH Price: $1.02 |
| 16 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 17 |
21-1770 |
DISCONTINUED Price: Call Us |
| 18 |
21-3530 |
Tube Return Line Price: Call Us |
| 18 |
872140505 |
BOLT Price: $2.99 |
| 19 |
21-1740 |
DISCONTINUED Price: Call Us |
| 19 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 20 |
322-7 |
SCREW-HH Price: $0.89 |
| 21 |
353-432 |
Fitting 90? Female Swivel Price: Call Us |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
353-466 |
DISCONTINUED Price: Call Us |
| 23 |
353-509 |
DISCONTINUED Price: $1.87 |
| 24 |
21-0090 |
DISCONTINUED Price: Call Us |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $1.99 |
| 26 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
21-0270 |
DISCONTINUED Price: Call Us |
| 27 |
532187257 |
DEFLECTOR.BLACK.54" This part replaces 532188938. Price: $54.99 |
| 28 |
21-0280 |
DISCONTINUE Price: Call Us |
| 29 |
3217-7 |
NUT-HEX Price: $0.28 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
21-0120 |
DISCONTINUED Price: Call Us |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
21-0290 |
DISCONTINUED Price: Call Us |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532153535. Price: $7.99 |
| 33 |
323-11 |
SCREW-HH Price: $1.08 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
323-14 |
SCREW-HH Price: $1.34 |
| 34 |
873680600 |
LOCKNUT Price: $1.99 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
21-2430 |
DISCONTINUED Price: Call Us |
| 37 |
321-5 |
SCREW-HH Price: $0.22 |
| 38 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 39 |
322-4 |
SCREW-HH Price: $0.35 |
| 39 |
532196104 |
PULLEY.IDLER.MWR.STATIONARY.LH This part replaces 532197380. Price: $22.99 |
| 40 |
21-1800 |
DISCONTINUED Price: Call Us |
| 41 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 42 |
20-0700 |
DISCONTINUED Price: $2.00 |
| 43 |
353-368 |
DISCONTINUED Price: Call Us |
| 43 |
532196065 |
ARM.IDLER Price: $11.99 |
| 44 |
353-435 |
DISCONTINUED Price: Call Us |
| 45 |
21-2110 |
DISCONTINUED Price: Call Us |
| 46 |
353-506 |
STRAIGHT ADAPTER Price: $22.13 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
21-3540 |
Tube Hydro Axle to Filter Price: Call Us |
| 47 |
587686701 |
BELT.DECK.DRIVE.BELT.54 This part replaces 532196103. Price: $44.99 |
| 48 |
256-237 |
BUSHING Price: $14.99 |
| 49 |
21-1530 |
DISCONTINUED Price: Call Us |
| 49 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 50 |
323-7 |
SCREW-HH Price: $0.65 |
| 50 |
872110616 |
BOLT Price: $3.99 |
| 51 |
21-3520 |
DISCONTINUED Price: Call Us |
| 52 |
10-7610 |
DISCONTINUED Price: Call Us |
| 52 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 53 |
5-6560 |
DISCONTINUED Price: Call Us |
| 54 |
304-97 |
DISCONTINUED Price: Call Us |
| 55 |
21-0390 |
DISCONTINUED Price: Call Us |
| 56 |
3217-6 |
NUT-HEX Price: $1.19 |
| 57 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 58 |
304-75 |
CONNECTOR-HOSE Price: $8.29 |
| 58 |
532187342 |
BAFFLE.RIGHT.54" Price: $12.99 |
| 59 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 59 |
532187344 |
BAFFLE.LEFT.54" Price: $14.99 |
| 60 |
109-0282 |
HOSE-FUEL This part replaces 21-2480. Price: $7.39 |
| 60 |
532187607 |
BAFFLE CENTER 54" MOWER Price: $17.99 |
| 61 |
304-73 |
FITTING-STRAIGHT Price: $12.59 |
| 62 |
237-42 |
O-RING Price: $2.78 |
| 97 |
532178515 |
WASHER Price: $2.99 |
| 98 |
532196105 |
SPRING, DECK DRIVE Price: $4.99 |
| 113 |
872110508 |
BOLT CRT Price: $2.99 |
| 114 |
532187556 |
ROD TENSION RELIEF Price: $12.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8. Price: $1.99 |
| 117 |
532174873 |
WHEEL. GUAGE RALLY Price: $7.99 |
| 120 |
819132012 |
WASHER Price: $2.99 |
| 122 |
532187557 |
BUSHING.RELIEF.TENSION Price: $2.99 |
| 184 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 185 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 187 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
532195185 |
ARM.SUSPENSION.MOWER Price: $11.99 |
| 190 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 192 |
532198468 |
KEEPER.BELT.IDLER.54"T Price: $5.99 |
| 194 |
874490736 |
BOLT.HEX.WASHER.HEAD.7/16-24X Price: $8.99 |
| 196 |
872140620 |
BOLT Price: $3.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 532187255 |
54" |
MULCH BLADE Price: $14.99 532187255 |
| 532416405 |
COUPLING.QUICK |
CONNECT Price: $5.99 532416405 |
