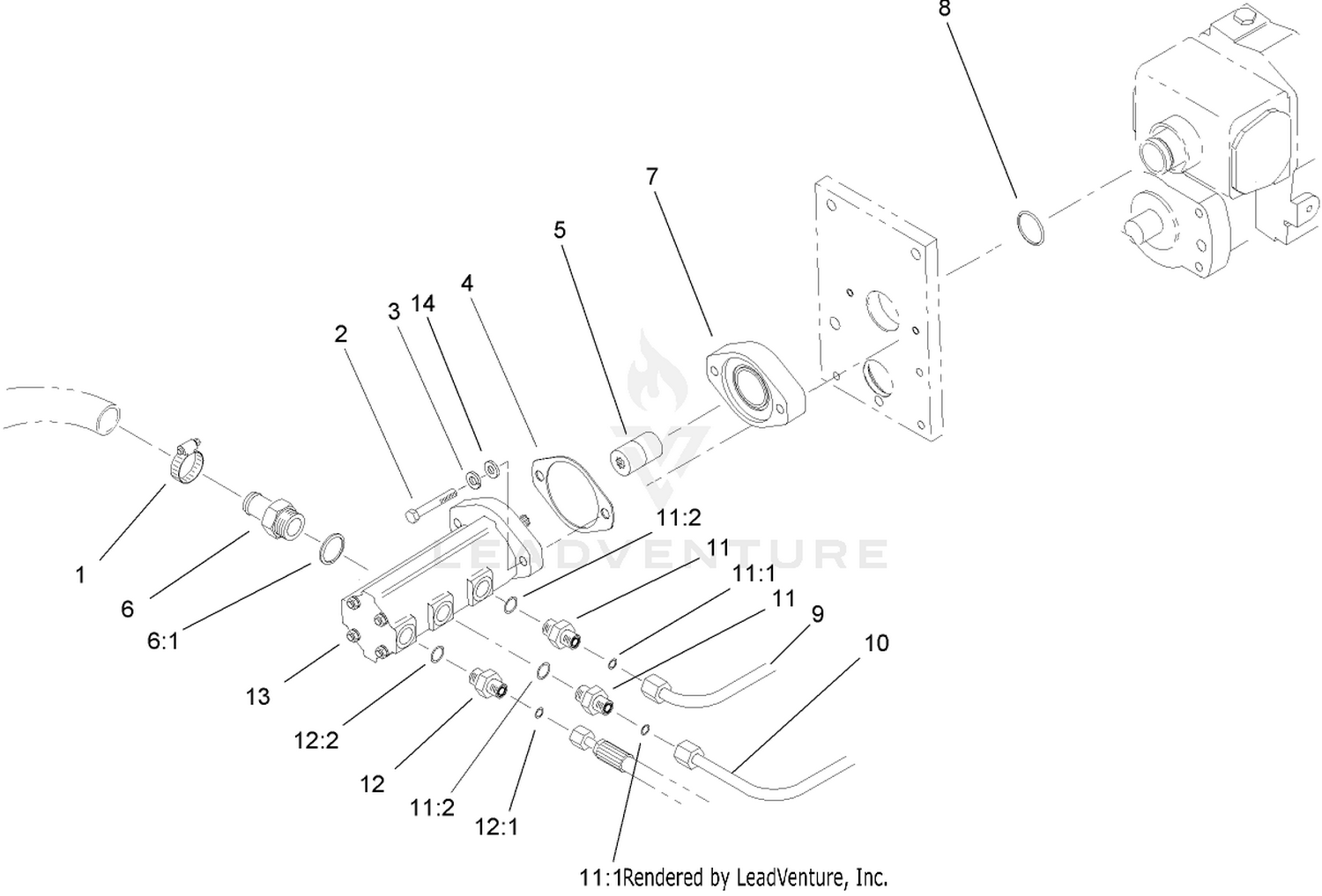

Gear Pump Installation Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 2 | 323-12 | SCREW-HH Price: $1.14 |
| 3 | 3253-5 | WASHER-LOCK Price: $0.29 |
| 4 | 93-3604 | GASKET Price: $20.04 |
| 5 | 93-1396 | COUPLER Price: $212.18 |
| 6 | 354-78 | FITTING-STR Price: $49.33 |
| 7 | 75-4400-03 | ADAPTOR Price: $260.66 |
| 8 | 237-163 | O-RING Price: $3.02 |
| 9 | 93-3642 | TUBE-PUMP, PORT 1 Price: $90.68 |
| 10 | 93-3643 | TUBE-PUMP, PORT 2 Price: $78.42 |
| 11 | 340-4 | FITTING-STRAIGHT Price: $11.58 |
| 12 | 340-3 | FITTING-STRAIGHT Price: $10.42 |
| 13 | 107-2380 | PUMP-GEAR Price: $2,633.30 |
