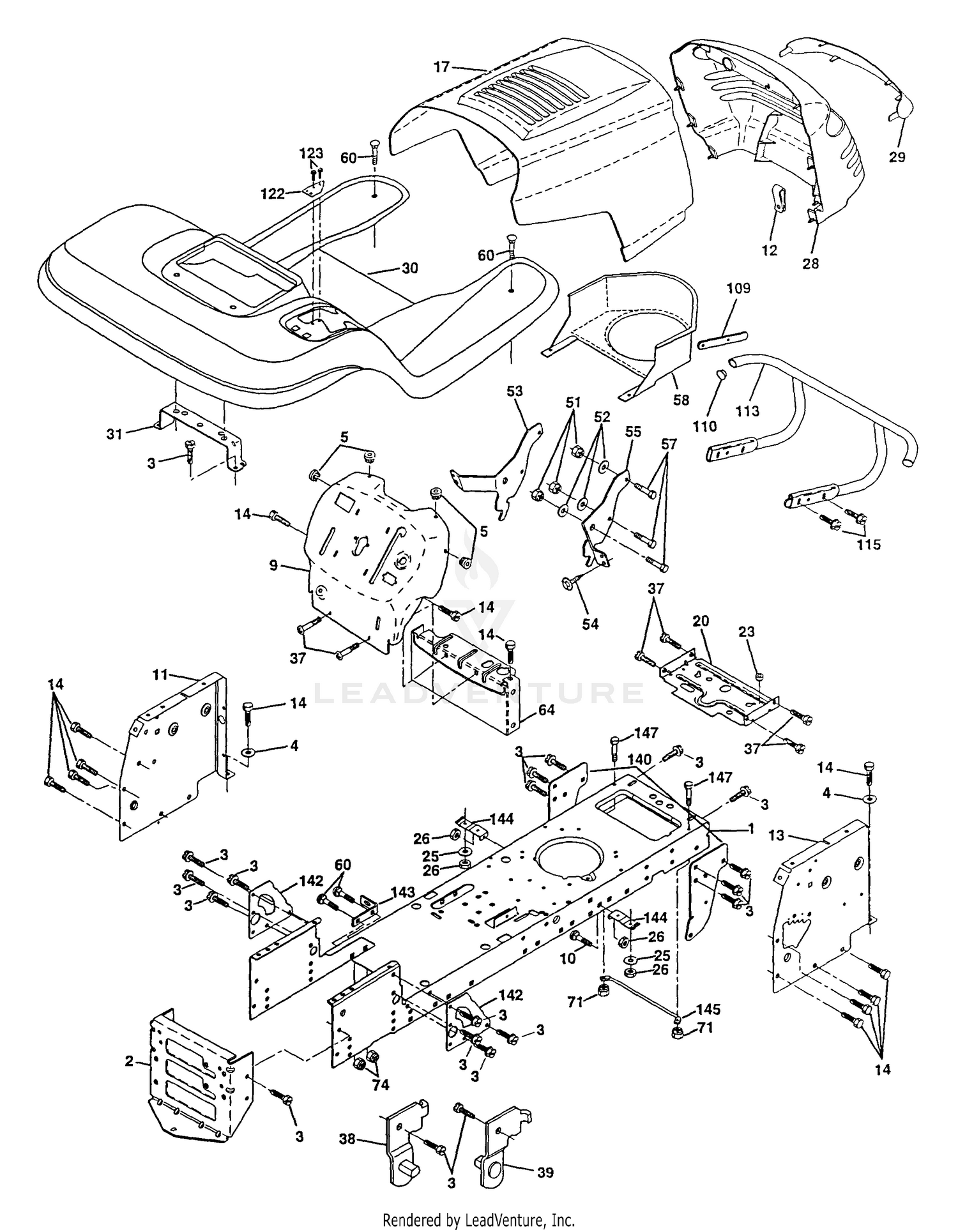

| Ref | Part Number | Description |
|---|
| 1 |
159527 |
Chassis Weldment Price: Call Us |
| 1 |
20-4290 |
MAT-DRAG Price: $973.11 |
| 2 |
140356 |
Drawbar, Stretch (AYP part number) Price: Call Us |
| 2 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 3 |
17490612 |
Screw Thdrol 3/8-16 x 3/4 Ty-tt Price: Call Us |
| 3 |
32122-35 |
SCREW Price: $35.19 |
| 4 |
19131216 |
Washer 13/32 x 3/4 x 16 Ga. Price: Call Us |
| 4 |
2820-2 |
CHAIN Price: $75.55 |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 5 |
5-2942 |
SHACKLE Price: $16.99 |
| 6 |
3290-250 |
PIN-COTTER Price: $5.59 |
| 7 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 8 |
28-0830-01 |
DRAG HOLDER ASM This part replaces 28-0830. Price: $244.89 |
| 9 |
154793X010 |
Dash P/L E A Hm NC Sym Price: Call Us |
| 9 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
72140608 |
Bolt Carriage 3/8-16 x 1 (AYP part number) Price: Call Us |
| 11 |
155927 |
Panel Dash Lh (AYP part number) Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Price: Call Us |
| 13 |
155936 |
Panel Dash Rh Price: Call Us |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Ty-tt Price: Call Us |
| 17 |
139394X428 |
Hood LT/PL Price: Call Us |
| 20 |
156437 |
Plate Mtg Battery Fuel Tank Fr (AYP part number) Price: Call Us |
| 23 |
124028X |
Bushing (AYP part number) Price: Call Us |
| 25 |
19131312 |
Washer 13/32 X 13/16 X 12 Ga Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 28 |
157373 |
Grille LT/PL Price: Call Us |
| 29 |
140273 |
Lens LT/PL Price: Call Us |
| 30 |
151287X505 |
Fender Footrest STLT Pnt Price: Call Us |
| 31 |
139976 |
Bracket Support Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
139886 |
Bracket, Asm. Pivot, L.H., Mower Rear Price: Call Us |
| 39 |
139887 |
Bracket, Asm. Pivot, R.H., Mower Rear Price: Call Us |
| 51 |
73800400 |
Nut Lock Hex W/Ins 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracket Grukke Lh Price: Call Us |
| 54 |
17030814 |
Screw Lock Spider #8 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket Grille Rh Price: Call Us |
| 57 |
74780412 |
Bolt Hex 1/4-20 x 3/4 (AYP part number) Price: Call Us |
| 58 |
150127 |
Air Duct Engine P/L Price: Call Us |
| 60 |
72140606 |
Bolt Rdhd Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
154798 |
Dash Lower STLT Price: Call Us |
| 71 |
73680400 |
Nut Crownlock 1/4-20 Unc (AYP part number) Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 UNC Price: Call Us |
| 109 |
141461 |
Bracket Extension Bumper (AYP part number) Price: Call Us |
| 110 |
143679 |
Plug Plastic Price: Call Us |
| 113 |
150300 |
Bumper Asm Price: Call Us |
| 115 |
17490620 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 122 |
157301 |
Bracket Shift STLT Price: Call Us |
| 123 |
152927 |
Screw TT #10-32 5-3/8 Flange Price: Call Us |
| 140 |
158418 |
Bracket Suspension Front Price: Call Us |
| 142 |
156095 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
154966 |
Bracket Swaybar Chassis (AYP part number) Price: Call Us |
| 144 |
154207 |
Bracket Pnt Footrest STLT (AYP part number) Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 147 |
74760412 |
Bolt Hex Hd 1/4-20 Unc x 3/4 Price: Call Us |
