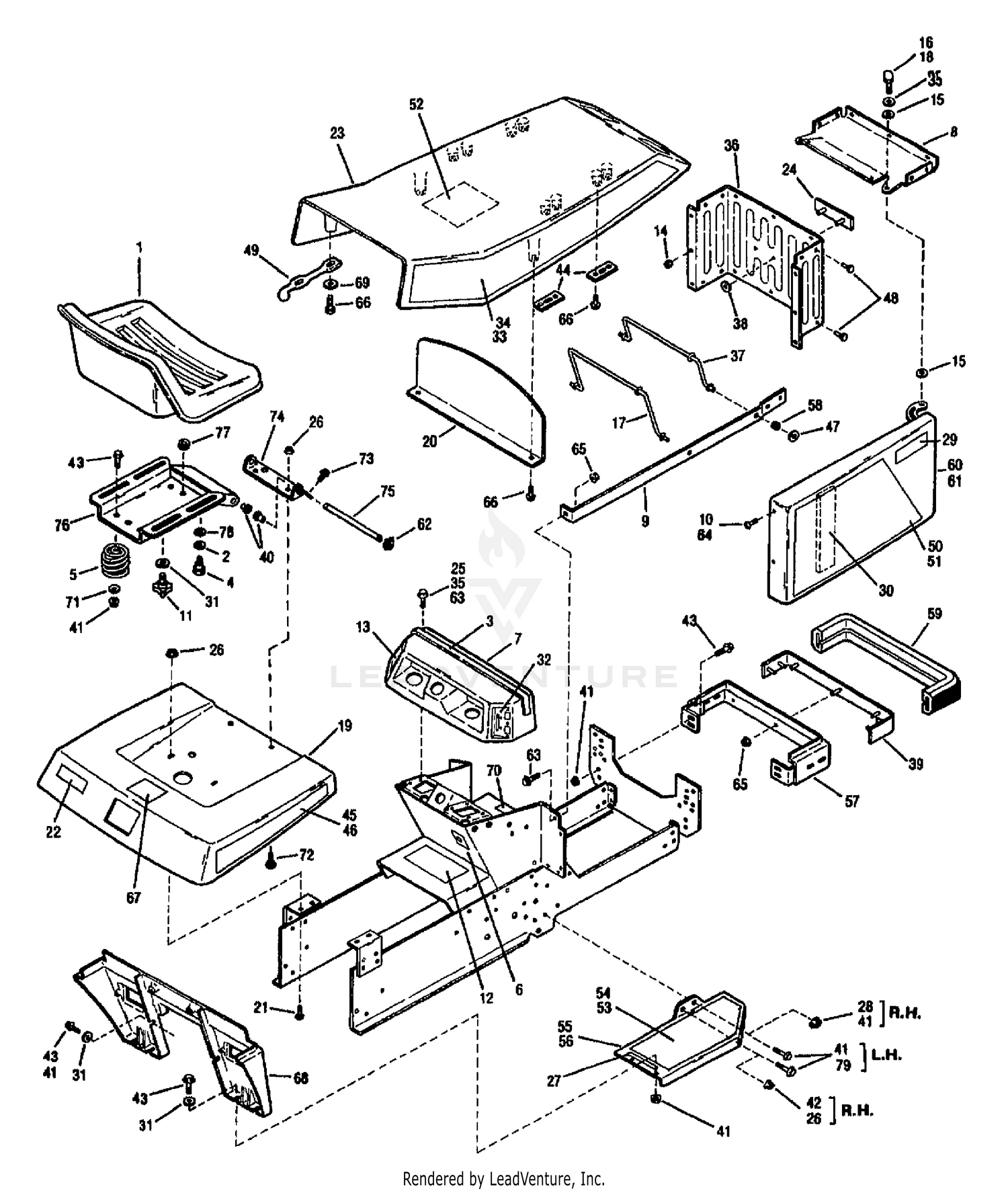

| Ref | Part Number | Description |
|---|
| 1 |
1757363 |
SEAT Price: Call Us |
| 2 |
1705793 |
WASHER-NYLON Not Available Price: |
| 3 |
1755516 |
PAD-HOOD Not Available Price: |
| 4 |
1754125 |
SCR-SHLDR 3/8-16X.25 Not Available Price: |
| 5 |
1755449 |
SPRING COMPRESSION Not Available Price: |
| 6 |
1756775 |
DECAL-IGNITION Not Available Price: |
| 7 |
1757362 |
PANEL-INST Price: Call Us |
| 8 |
1755628010 |
CAP-GRILLE Not Available Price: |
| 9 |
1753783010 |
ROD SUPPOR Not Available Price: |
| 11 |
1734269 |
KNOB-ADJUS Not Available Price: |
| 12 |
1756773 |
DECAL-INSTRUCTIONS Not Available Price: |
| 13 |
1756777 |
DECAL-CHOKE Not Available Price: |
| 15 |
1755714 |
WASHER Not Available Price: |
| 17 |
1752901 |
HINGE LINK Not Available Price: |
| 18 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 19 |
1749821010 |
FENDER Not Available Price: |
| 20 |
1752903 |
BAFFLE-HOOD Price: Call Us |
| 22 |
1757254 |
DECAL-LOGO Not Available Price: |
| 23 |
1757208 |
HOOD Price: Call Us |
| 24 |
1757361 |
PLATE-LOGO Not Available Price: |
| 25 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 26 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 27 |
1755522 |
CUSHION Not Available Price: |
| 29 |
1757220 |
DECAL-HYDRO Not Available Price: |
| 30 |
1753950 |
SEALING BL Not Available Price: |
| 32 |
1755931 |
DECAL THROTTLE Not Available Price: |
| 33 |
1757209 |
DECAL-HOOD LH Price: Call Us |
| 34 |
1757210 |
DECAL-HOOD (RH) Not Available Price: |
| 36 |
1755515041 |
GRILLE Price: Call Us |
| 37 |
1752900 |
LINK-HINGE Not Available Price: |
| 38 |
1754126 |
NUT PUSH Not Available Price: |
| 39 |
1755517 |
ASSM-BUMPE Not Available Price: |
| 40 |
1185779 |
BUSHING Price: Call Us |
| 41 |
1186393 |
NUT-HFLK 3/8-16 ZP Price: $2.63 |
| 42 |
1185872 |
SCR-TRUSS Not Available Price: |
| 43 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 44 |
1752902 |
RETAINER H Not Available Price: |
| 45 |
1757368 |
DECAL (RH) Not Available Price: |
| 46 |
1757367 |
DECAL (LH) Not Available Price: |
| 47 |
726-0201 |
Nut-Push This part replaces 1753799. Price: $6.01 |
| 48 |
1739918 |
POP RIVET Not Available Price: |
| 49 |
1727127 |
LATCH-RUBBER Not Available Price: |
| 50 |
1757369 |
DECAL-SIDE COVER LH Price: Call Us |
| 51 |
1757370 |
DECAL-SIDE COVER RH Not Available Price: |
| 52 |
1757206 |
DECAL-INSTR SERVIC Not Available Price: |
| 53 |
1757359 |
PAD Not Available Price: |
| 54 |
1757360 |
PAD Not Available Price: |
| 55 |
1752250010 |
BOARD-RUNN Not Available Price: |
| 56 |
1752251010 |
FOOTREST R Not Available Price: |
| 57 |
1752181010 |
GRILLE SUPT Not Available Price: |
| 58 |
1753792 |
GROMMET Not Available Price: |
| 59 |
1755518 |
BUMPER EXTRUSION Not Available Price: |
| 60 |
1755496041 |
ASSM-COVER Price: Call Us |
| 61 |
1755498041 |
ASSM-COVER Price: Call Us |
| 62 |
916-0125 |
E-RING 0375 DIA SHAFT Not Available This part replaces 1185257. Price: |
| 63 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 65 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 66 |
1185130 |
SCREW HEX Not Available Price: |
| 67 |
1757366 |
DECAL-FUEL Not Available Price: |
| 68 |
1757358 |
SUPPORT RUNNING BO Not Available Price: |
| 70 |
1754143 |
DECAL WARNING Not Available Price: |
| 72 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 This part replaces 1736098. Price: $3.71 |
| 73 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 74 |
1755456001 |
BRACKET Not Available Price: |
| 75 |
1755622 |
ROD Not Available Price: |
| 76 |
1755620001 |
ASSM-SEAT SUPPORT Price: Call Us |
| 77 |
1755487 |
GROMMET Price: Call Us |
| 79 |
1186345 |
SCREW Not Available Price: |
