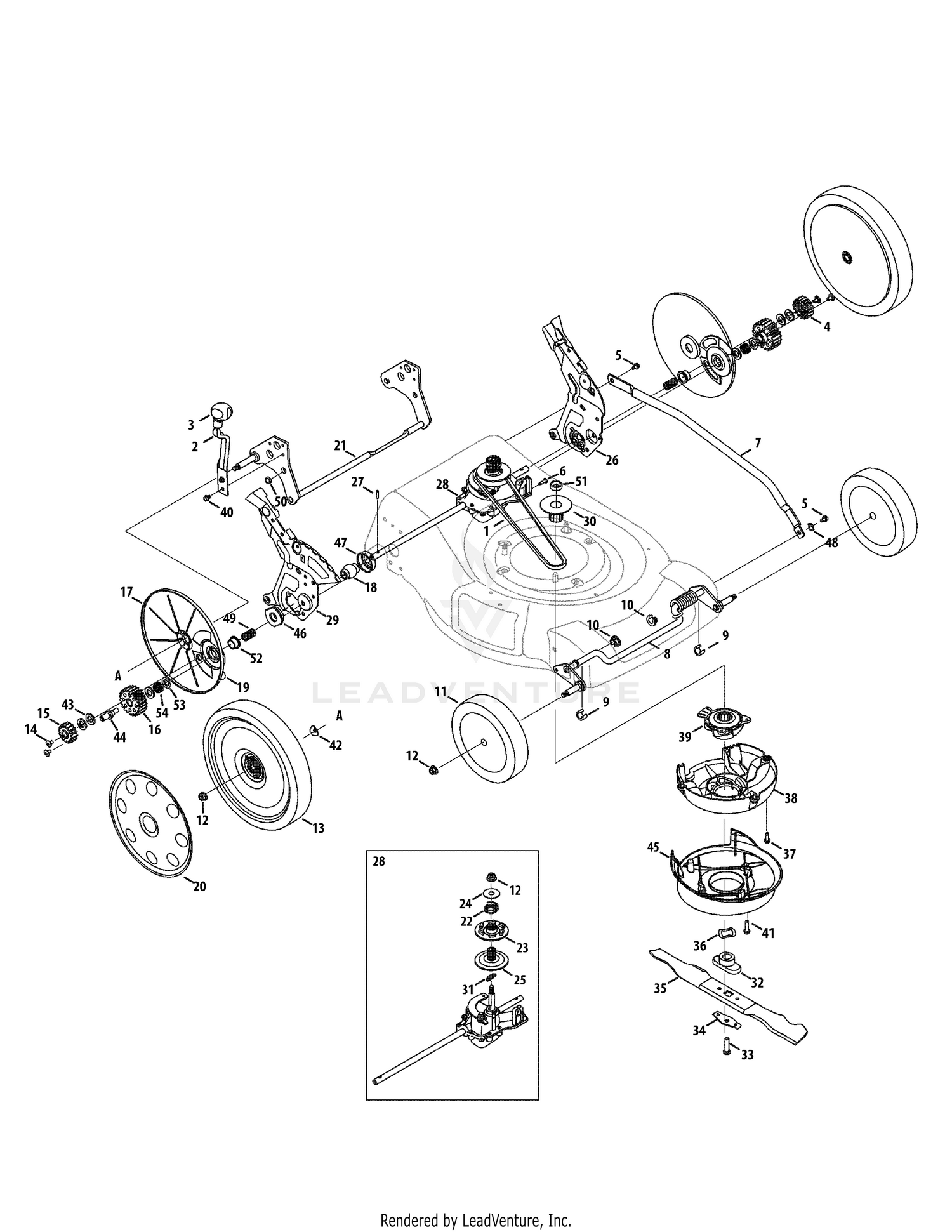

| Ref | Part Number | Description |
|---|
| 1 |
954-04176A |
V-Belt Price: $21.70 |
| 2 |
732-04480A |
LEVER SPRING Not Available Price: |
| 3 |
720-04092 |
Height Adjuster Knob Price: $5.30 |
| 4 |
917-04577A |
SPUR GEAR 16T BRONZE BUSH (LH) Not Available Price: |
| 5 |
738-04278 |
Shldr. Screw, 1/4-20 x 0.50 Price: $5.99 |
| 6 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 7 |
749-04414A-0637 |
Cross Bracket Not Available Price: |
| 8 |
687-02367B-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 9 |
731-05470 |
Clip Spacer Price: $4.36 |
| 10 |
741-04136B |
Split Hex Flange Bearing Price: $4.02 |
| 11 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 12 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 13 |
934-04404 |
WHEEL ASSEMBLY-12" W/HUBCAP Not Available Price: |
| 14 |
710-04531 |
Screw, 1/4-20 x .39 Price: $4.42 |
| 15 |
917-04578A |
SPUR GEAR 16T BRONZE BUSH (RH) Not Available Price: |
| 16 |
917-04678 |
SPUR GEAR 23T Not Available Price: |
| 17 |
731-06145C |
COVER DUST Not Available This part replaces 731-06145B. Price: |
| 18 |
741-0604A |
Bearing Sleeve Price: $11.31 |
| 19 |
787-01645A |
SEAL DUST PLATE Not Available This part replaces 787-01645. Price: |
| 20 |
731-06146 |
Hub Cap Price: $18.40 |
| 21 |
687-02390-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 22 |
732-04630 |
Compression Spring Price: $4.24 |
| 23 |
756-04316A |
UPPER TRANSMISSION PULLEY Not Available Price: |
| 24 |
936-0406 |
Flat Washer, .442 x 1.38 x .060 Price: $5.94 |
| 25 |
756-04317A |
LOWER TRANSMISSION PULLEY Not Available Price: |
| 27 |
915-0221 |
Dowel Pin Price: $3.93 |
| 28 |
918-04826A |
TRANSMISSION Not Available Price: |
| 30 |
756-04315A |
UPPER HALF PULLEY Not Available Price: |
| 31 |
732-04313 |
Extension Spring Price: $3.96 |
| 32 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 33 |
710-1044 |
Screw, 3/8-24 x 1.50 Price: $3.48 |
| 34 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 35 |
942-0741A |
Blade This part replaces 942-0741. Price: $27.55 |
| 36 |
736-0526 |
Wave Washer 1.38 ID x .88 OD This part replaces 936-0526. Price: $5.94 |
| 37 |
710-0599 |
TT Screw, 1/4-20 x .500 Price: $3.86 |
| 38 |
731-06112A |
ENGINE LOWER BAFFLE Not Available Price: |
| 39 |
956P04046 |
LOWER PULLEY Not Available This part replaces 956-04046. Price: |
| 40 |
710-0653 |
Screw, TT, 1/4-20 x .375 Price: $3.78 |
| 41 |
710-04774 |
Screw, 1/4-15 x 1.25 Price: $4.02 |
| 42 |
736-0182 |
Washer, Sprg, .500 x 1.00 x .022 Price: $3.90 |
| 43 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 936-0272. Price: $4.37 |
| 44 |
711-05040 |
SHAFT .500 x 3/8 Not Available Price: |
| 45 |
731-06284 |
RING BAFFLE Not Available Price: |
| 46 |
748-04177 |
Bearing Support Price: $11.23 |
| 47 |
732-0708 |
BEARING RETAINER Not Available Price: |
| 48 |
736-04413 |
Wshr, Wave, .385 ID x .598 OD Price: $3.33 |
| 49 |
732-04557 |
COMPRESSION SPRING Not Available Price: |
| 50 |
750-05061 |
SPACER Not Available Price: |
| 51 |
750-05022 |
SPACER-7/8 x 1.265 x .27 Not Available Price: |
| 52 |
750-05250 |
Spcr., Flg., .51 ID x .58 OD Price: $6.01 |
| 53 |
736-0369 |
Flat Washer, .508 x 1.0 x .020 This part replaces 936-0369. Price: $3.90 |
