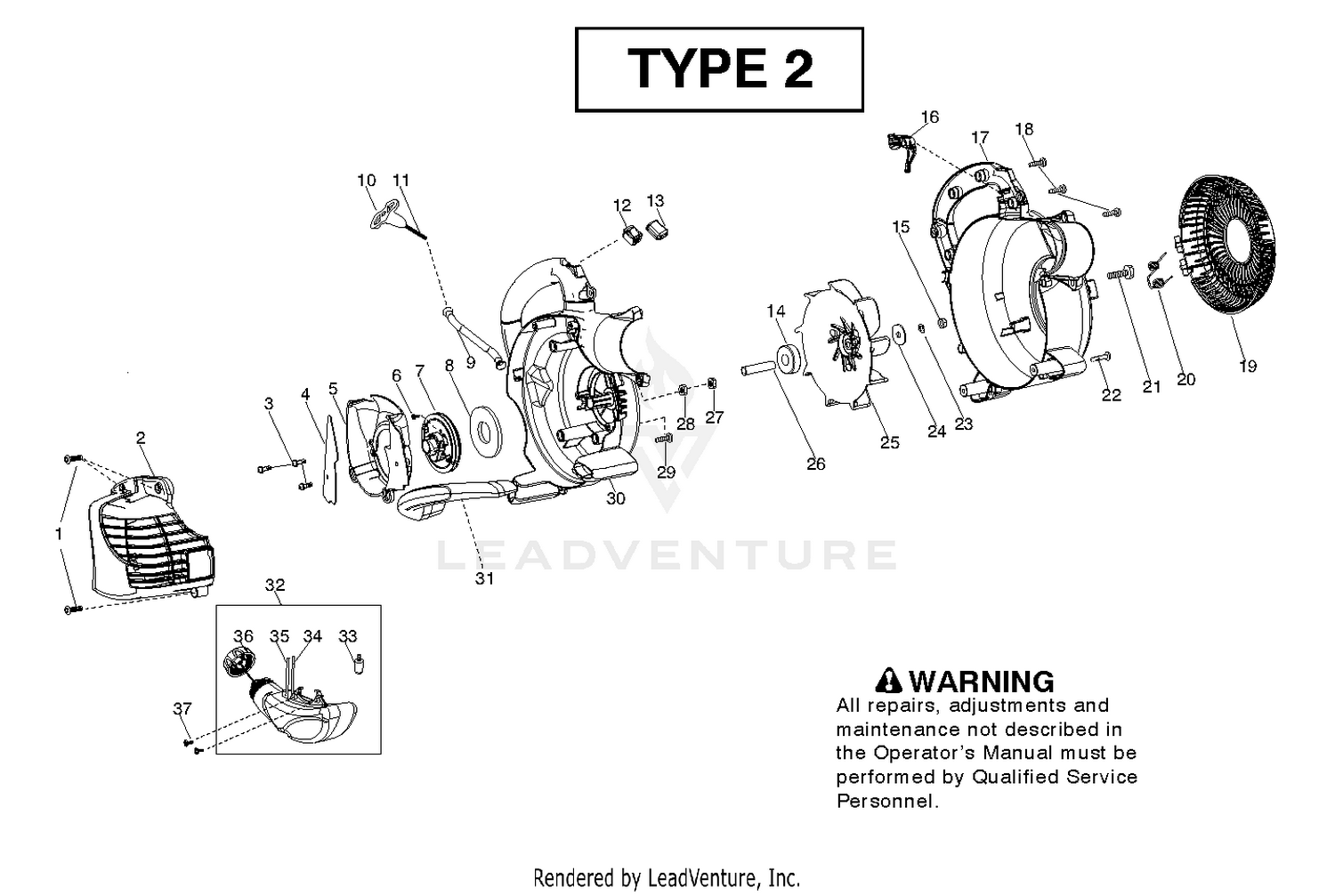

HOUSING
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015814 | SCREW Price: $1.49 |
| 2 | 32152-10 | LOCKNUT Price: $0.81 |
| 2 | 545135806 | ASSY COVER ENGINE Price: $11.99 |
| 3 | 530015880 | SCREW Price: $1.99 |
| 4 | 545134001 | SHIELD BAFFLE Price: $3.99 |
| 5 | 545099101 | BAFFLE Price: $6.99 |
| 6 | 530016391 | SCREW SEMS TOOTHED WASHER Price: $1.99 |
| 7 | 545081852 | KIT STARTER PULLEY Price: $9.99 |
| 8 | 545008011 | KIT STARTER SPRING This part replaces 545213601. Price: $5.99 |
| 9 | 545107101 | TUBE STARTER ROPE Price: $5.99 |
| 10 | 530054834 | HANDLE STARTER BLK Price: $1.99 |
| 11 | 545081833 | KIT ROPE Price: $3.99 |
| 13 | 545128201 | PROTECTOR, SWITCH Price: $1.99 |
| 14 | 545099001 | HUB Price: $3.99 |
| 15 | 530626605 | NUT Price: $1.99 |
| 16 | 545113803 | TRIGGER THROTTLE RED Price: $6.99 |
| 18 | 530015814 | SCREW Price: $1.49 |
| 19 | 545100801 | DOOR VAC BLACK Price: $8.99 |
| 20 | 545115601 | SPRING VAC DOOR Price: $2.99 |
| 21 | 545003502 | Price: $1.99 |
| 22 | 530016406 | SCREW #10 PLASTITE 1.362 Price: $1.99 |
| 23 | 530092322 | LOCK WASHER Price: $1.99 |
| 24 | 545109901 | WASHER, IMPELLER Price: $1.99 |
| 25 | 545113601 | ASSY IMPELLAR HUB Price: $4.99 |
| 26 | 545113701 | SPACER FLYWHEEL Price: $2.99 |
| 27 | 530015515 | LOCKNUT Price: $1.99 |
| 28 | 530015197 | NUT Price: $1.99 |
| 29 | 530016386 | SCREW Price: $5.99 |
| 31 | 545101201 | HANDLE VAC BLACK Price: $8.99 |
| 33 | 530095646 | FUEL PICK-UP ASSY Price: $2.69 |
| 34 | 530069247 | KIT-LINE Price: $3.69 |
| 35 | 530069216 | LINE KIT Price: $3.99 |
| 36 | 530057973 | ASSY FUEL CAP W/RETAINER Price: $7.99 |
