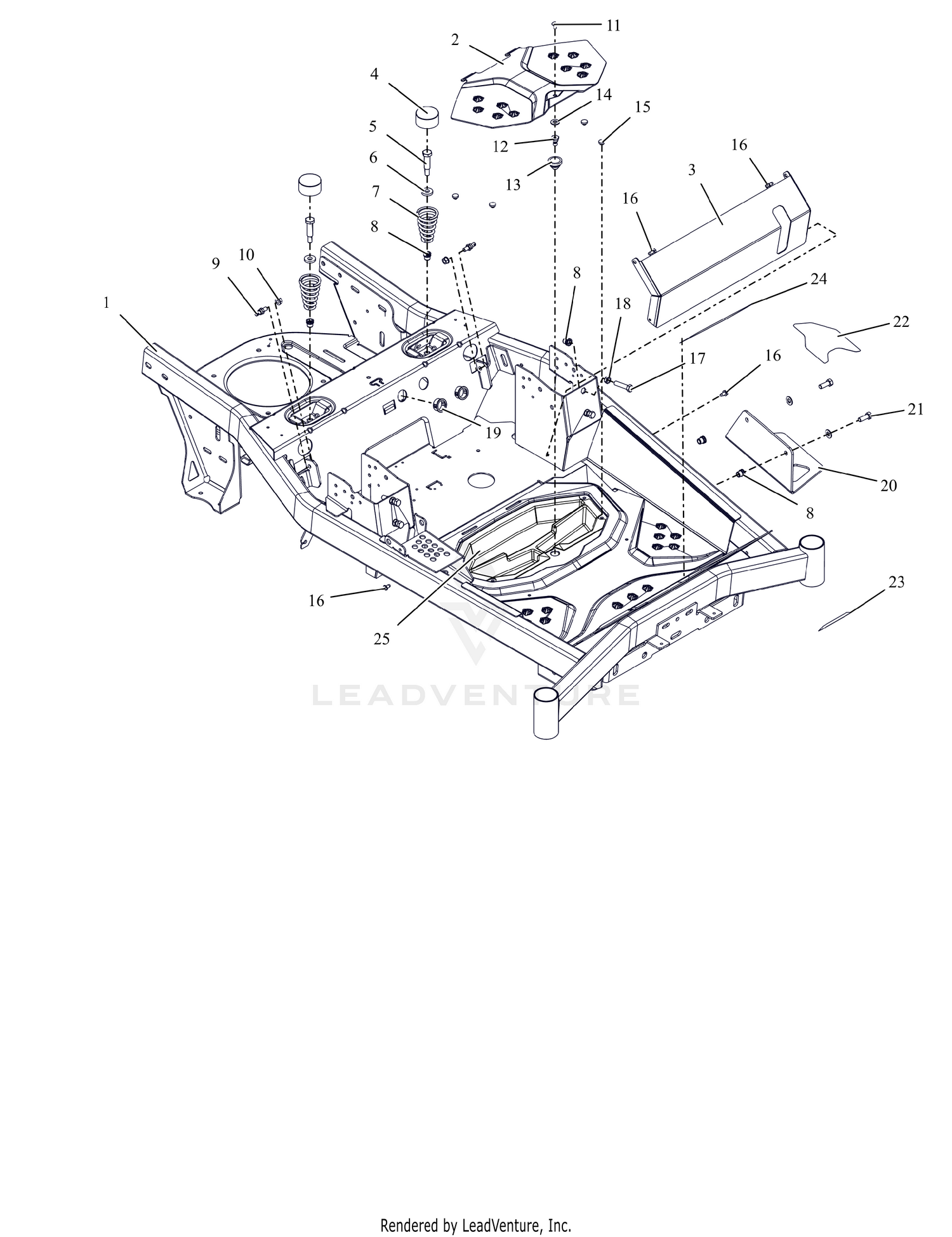

| Ref | Part Number | Description |
|---|
| 1 |
51801000 |
KIT-GRAVELY FRAME W/ SAFETY DECALS Price: $662.95 |
| 2 |
51801700 |
KIT-GRAVELY ACCESS PLT W/DECAL Price: $66.45 |
| 3 |
09666853 |
PLATE- FRONT KICK-RED Price: $28.95 |
| 4 |
00337700 |
HUB CAP Price: $2.45 |
| 5 |
05902130 |
BLT-SHLDR .50X1.50 .375-16 ZCC Price: $5.45 |
| 6 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC Price: $2.45 |
| 7 |
08300021 |
SPRING, SEAT Price: $18.45 |
| 8 |
07001805 |
NUT,THD,INSERT .38-16 ZC120 Price: $2.45 |
| 9 |
05171400 |
COUPLER, DAMPER MOUNT Price: Call Us |
| 10 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 11 |
06200305 |
BLT, RHSSN.25-20X.500 G5 ZCC Price: $1.45 |
| 12 |
05275900 |
STUD, BALL FEMALE .250-20 THREAD Price: $8.45 |
| 13 |
07500429 |
COUPLING, RUBBER PUSH-IN Price: $1.95 |
| 14 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC Price: $0.95 |
| 15 |
07503100 |
BUMPER GROMMET Price: $3.45 |
| 16 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 17 |
05901612 |
BLT, HEX .38-16X1.75F G5 ZCC Price: $2.95 |
| 18 |
06500910 |
NUT-JAM .375-16 G2 ZCC Price: $0.95 |
| 19 |
07500308 |
BSHG, PANEL SNAP .937X1.11X.56 Price: $3.45 |
| 20 |
09655951 |
STEP Price: $50.95 |
| 21 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 Price: $1.95 |
| 22 |
09693800 |
GRIP- TAPE - STEP-GRAVELY Price: $10.45 |
| 23 |
09694300 |
TAPE, GRIP - FOOTPLATE R Price: Call Us |
| 24 |
09694200 |
TAPE, GRIP - FOOTPLATE L Price: Call Us |
