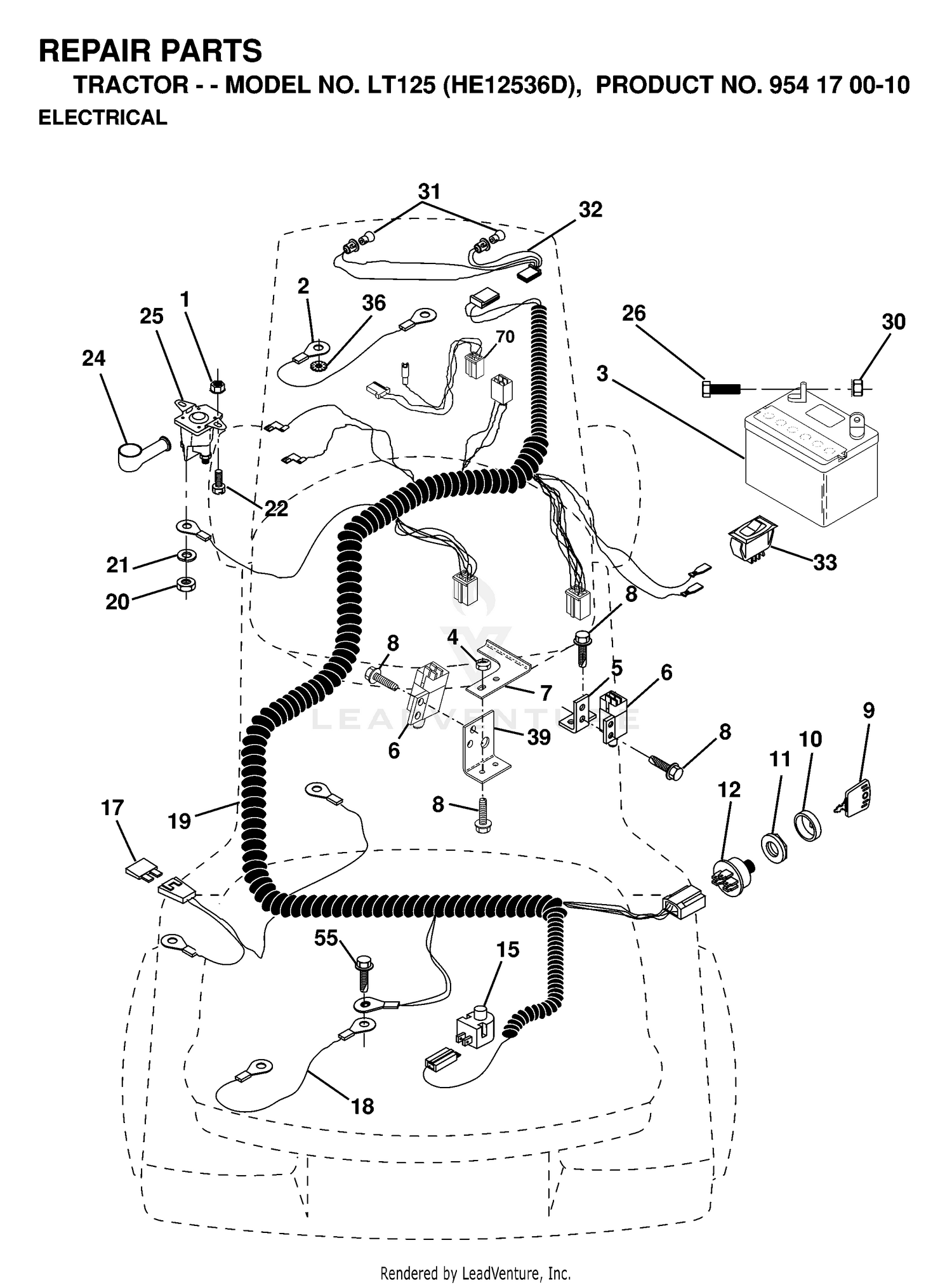

| Ref | Part Number | Description |
|---|
| 1 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 2 |
108-0686 |
SHIELD-RUBBER, TOP Price: $193.61 |
| 2 |
532108423 |
CABLE.BATTERY.6GA.16"RED Price: $6.99 |
| 3 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144924. Price: $149.99 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
532069180 |
LOCKNUT Price: $2.99 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 5 |
532108236 |
BRACKET LT Price: $2.99 |
| 6 |
108-0760 |
COUPLING-JAW, STOCK Price: $136.91 |
| 6 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 7 |
105-9455 |
MOTOR Price: $989.33 |
| 7 |
532146374 |
KEEPER, ACTUAT. L.R. Price: $2.38 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 8 |
817021008 |
SCREW Price: $3.99 |
| 9 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 9 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 10 |
107-1471 |
BEARING-FLANGE, 3-BOLT Price: $38.30 |
| 10 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 11 |
108-0668-03 |
PLATE-SKIRT, SIDE Price: $24.80 |
| 11 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 12 |
115-9093 |
SHIELD, RUBBER-SIDE This part replaces 108-0683. Price: $11.92 |
| 12 |
532178744 |
KIT.SWITCH.IGN.3-POS.NUT.MNT.D This part replaces 532163088. Price: $37.99 |
| 14 |
115-9092 |
SHIELD, RUBBER-FRONT This part replaces 107-1302. Price: $52.00 |
| 15 |
108-0667-03 |
PLATE-SKIRT, FRONT Price: $103.97 |
| 15 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 16 |
112-6769 |
BRUSH ASM Price: $1,169.99 |
| 17 |
107-1439-03 |
PLATE-ANGLE Price: $23.40 |
| 18 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 18 |
532128353 |
CABLE ASSY Price: $3.99 |
| 19 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 19 |
532146064 |
HARNESS IGN LR NLA Price: $100.99 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
107-1280-01 |
ANGLE-FRONT Price: $136.91 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 22 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 22 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 23 |
108-0781 |
COVER-COUPLER Price: $46.69 |
| 24 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 25 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 26 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 27 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 30 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 31 |
532004152 |
LIGHTBULB Price: $3.99 |
| 32 |
532142881 |
HARNESS HEADLIGHT Price: $28.30 |
| 33 |
532110712 |
SWITCH LT Price: $7.99 |
| 36 |
811150400 |
Washer, Lock, Internal Tooth 1/4 Price: $2.99 |
| 39 |
532141735 |
BRACKET Price: $2.99 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 70 |
532140413 |
HARNESS, ENGINE Price: $14.99 |
