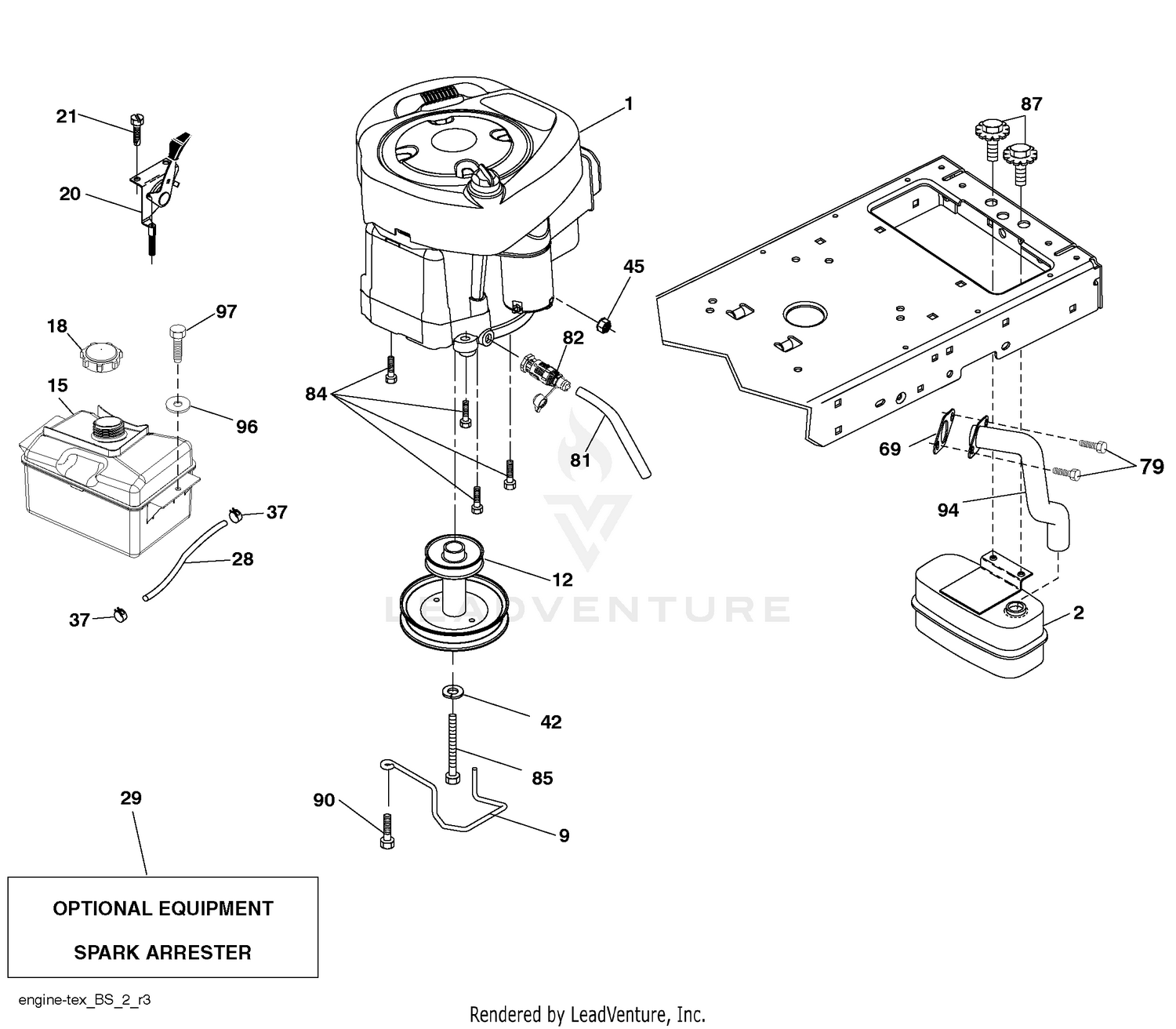

| Ref | Part Number | Description |
|---|
| 1 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 2 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 2 |
76-2430 |
BRACKET - DEBRIS Price: $10.18 |
| 3 |
283-40 |
PIN-CLEVIS Price: $2.85 |
| 4 |
32128-33 |
NUT-HF Price: $0.25 |
| 5 |
62-7250 |
VINYL SLEEVE This part replaces 61-7250. Price: $32.91 |
| 6 |
61-3270-03 |
SPRING-COMPRESSION This part replaces 61-3270. Price: $12.24 |
| 7 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 8 |
61-2880 |
DISCONTINUED Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 11 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 12 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 12 |
586478501 |
ENGINE.PULLEY This part replaces 532405471. Price: $27.99 |
| 13 |
61-3000 |
SHAFT Price: $102.19 |
| 14 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 15 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 16 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 17 |
5-0743-03 |
SPRING-MOWER This part replaces 5-0743. Price: $188.53 |
| 18 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 20 |
283-6 |
PIN-CLEVIS Price: $1.70 |
| 20 |
532401508 |
CONTROL.TH/CK.COBRA.KO Price: $24.99 |
| 21 |
282-4 |
SHACKLE Price: $32.98 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 23 |
76-0370 |
BOLT ASSY Price: $26.50 |
| 24 |
83-7900 |
DISCONTINUED Price: Call Us |
| 25 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 26 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 27 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 28 |
323-7 |
SCREW-HH Price: $0.65 |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
61-2930 |
DISCONTINUED Price: Call Us |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 94 |
581880901 |
EXHAUST.TUBE.B&S.28/31 This part replaces 532405450. Price: $19.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
