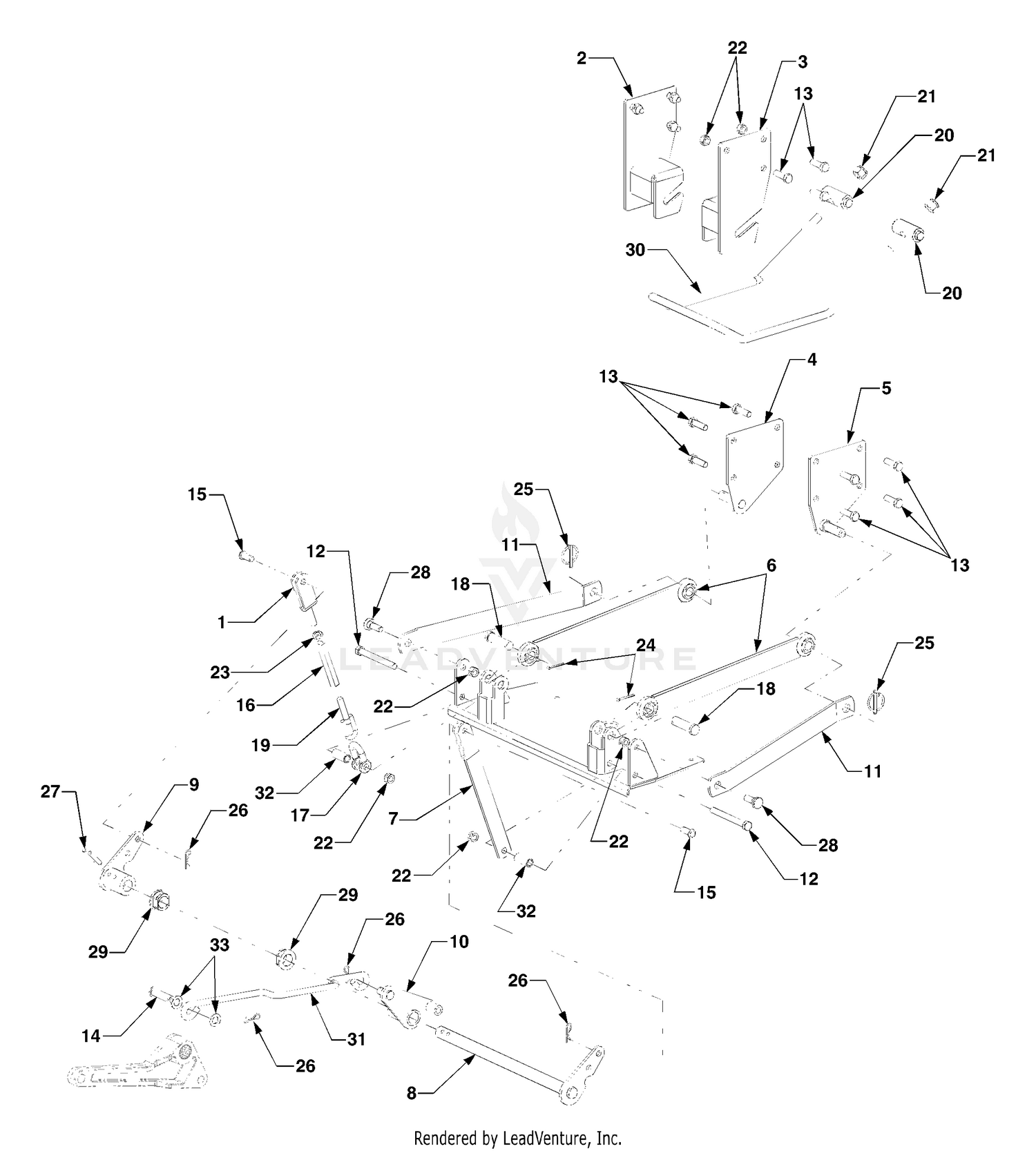

| Ref | Part Number | Description |
|---|
| 1 |
903-04049 |
ADJUSTMENT CLEVIS Not Available This part replaces 603-04049. Price: |
| 2 |
603-0953-0637 |
FRONT HANGER (LH) (POWDER BLACK) Not Available Price: |
| 3 |
603-0954-0637 |
FRONT HANGER (RH) (POWDER BLACK) Not Available Price: |
| 4 |
603-0955-0637 |
LIFT ARM MOUNTING PLATE (LH) Not Available Price: |
| 5 |
603-0956-0637 |
LIFT ARM MOUNTING PLATE (RH) Not Available Price: |
| 6 |
603-0957-0637 |
DECK LIFT ARM ASSEMBLY (POWDER BLACK) Not Available Price: |
| 7 |
603-0958-0637 |
FIXED LINK ASSEMBLY (RH) (POWDER BLACK) Not Available Price: |
| 8 |
903-0959 |
DECK LIFT SHAFT Not Available This part replaces 603-0959. Price: |
| 9 |
603-0960-0637 |
DECK LIFT PIVOT BRACKET (POWDER BLACK) Not Available Price: |
| 10 |
603-0979-0637 |
Plate, Lift Crank Price: Call Us |
| 11 |
703-4112-0637 |
FIXED LIFT STRAP Not Available Price: |
| 12 |
710-1807 |
Screw, Hex Cap, 1/2-13 x 4.5 GR5 Price: $10.13 |
| 13 |
710-3181 |
Screw, Hex Cap, 1/2-13 x 1.5 GR5 Price: $6.01 |
| 14 |
711-0299 |
Pin, Clevis, .625 x 2.4 Price: $32.19 |
| 15 |
711-0310 |
Pin, Clevis, .5 x 1.18 Price: $9.46 |
| 16 |
911-04031 |
LIFT LINK TURNBUCKLE Not Available This part replaces 711-04031. Price: |
| 17 |
711-1622 |
CHECK CHAIN CLEVIS Not Available Price: |
| 18 |
711-1643 |
Pin, Clevis, 3/4 x 2.5 Price: $20.30 |
| 19 |
911-1728A |
CHAIN CLEVIS This part replaces 711-1728. Price: $40.07 |
| 20 |
711-1739 |
HANGER ROD MOUNTING PIN Not Available Price: |
| 21 |
712-3016 |
Nut, Hex Insert Lock, 5/8-11 Price: $5.94 |
| 22 |
712-3022 |
Nut, Hex Center Lock, 1/2-13 Price: $3.61 |
| 23 |
712-3048 |
Nut, Hex Jam, 1/2-13 GR5 Price: $4.08 |
| 24 |
714-0142 |
COTTER PIN-3/16 DIA x 1.50 Not Available Price: |
| 25 |
714-0143A |
Klik Pin This part replaces 714-0143. Price: $5.67 |
| 26 |
714-0145 |
Pin, Internal Cotter Price: $4.42 |
| 27 |
715-0118 |
Pin, Spirol, 5/16 x 1.75 Price: $10.94 |
| 28 |
738-0744A |
Screw, Shoulder, .625 x.36: 1/2-13 Price: $10.00 |
| 29 |
941-0170 |
Bearing, Flange w/Flats This part replaces 741-0170. Price: $17.84 |
| 30 |
947-3483 |
FRONT LIFT ROD Not Available This part replaces 747-3483. Price: |
| 31 |
747-3484A |
BELLCRANK LIFT ROD Not Available Price: |
| 32 |
750-0995 |
SPACER Not Available Price: |
