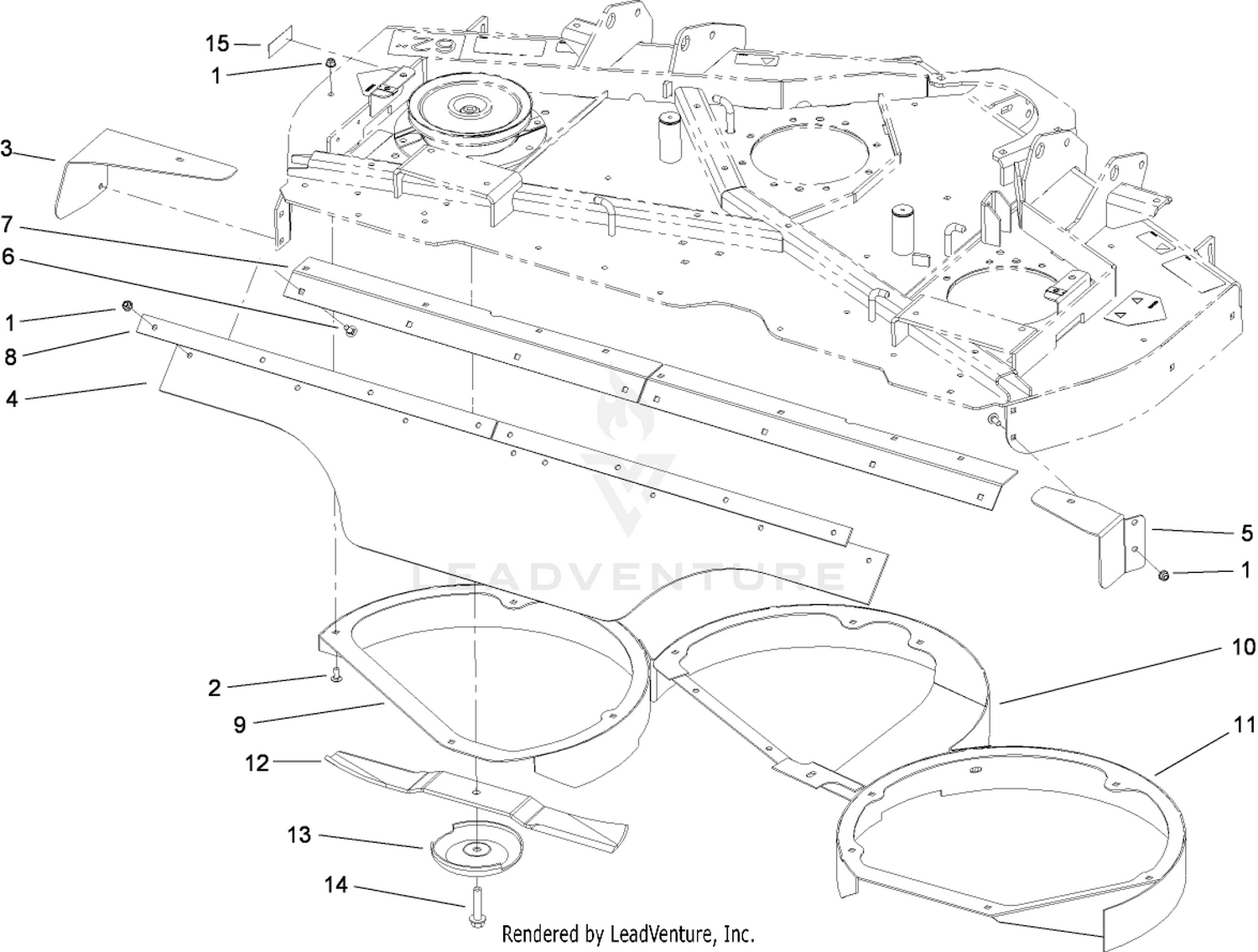

Rear Discharge Kit Assembly
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 2 | 3230-23 | SCREW-CARR Price: $0.89 |
| 3 | 114-4009-01 | SHIELD-FOOT, LH Price: $45.20 |
| 4 | 114-4008 | DEFLECTOR Price: $106.92 |
| 5 | 110-4744-01 | SHIELD-FOOT, RH Price: $43.70 |
| 6 | 3230-16 | SCREW-CARR Price: $1.79 |
| 7 | 114-4006-01 | ANGLE-REAR Price: $75.62 |
| 8 | 114-4007-01 | STRAP-SUPPORT Price: $38.17 |
| 9 | 114-4011-0P | CHAMBER ASM-LH This part replaces 114-4011-01. Price: $343.85 |
| 10 | 108-5282-01 | CHAMBER-CENTER Price: $323.64 |
| 11 | 108-5285-01 | CHAMBER-RH Price: $343.85 |
| 12 | 92-5608-03 | BLADE Price: $44.11 |
| 13 | 72-9361 | CUP-SCALP, ANTI Price: $39.78 |
| 14 | 92-5816 | BOLT-BLADE Price: $4.93 |
