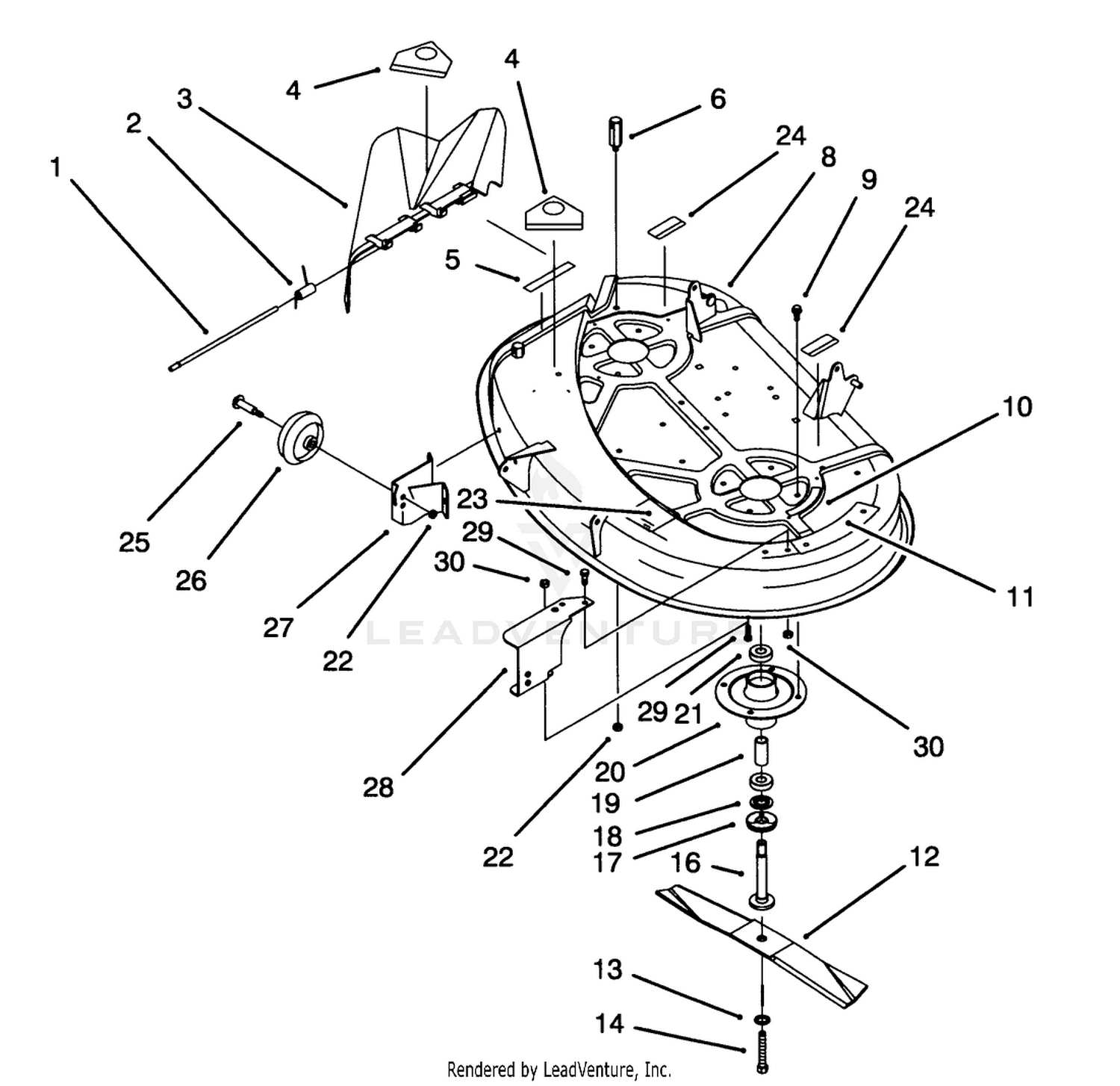

| Ref | Part Number | Description |
|---|
| 1 |
57-4380 |
ROD-HINGE DEFLECTOR Price: $22.21 |
| 2 |
57-6950 |
SPRING Price: $16.98 |
| 3 |
93-0317 |
DEFLECTOR ASM Price: $47.57 |
| 4 |
93-1122 |
DECAL-DANGER Price: $8.99 |
| 5 |
68-3650 |
DECAL-DANGER, DEFLECTOR Price: $8.85 |
| 6 |
57-4360 |
REAR PIVOT POST (PLTD) Price: $37.26 |
| 8 |
16-9469 |
WA-38" DECK *R This part replaces 88-5780-01. Price: $476.01 |
| 9 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 10 |
68-3660 |
DECAL-DANGER, SHIELD Price: $6.93 |
| 11 |
79-3140 |
DECAL-DANGER Price: $10.11 |
| 12 |
57-4700-03 |
BLADE-19.32 INCH This part replaces 57-4700. Price: $25.16 |
| 13 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 14 |
26-0671 |
SCREW-HH Price: $7.99 |
| 16 |
80-4341 |
SHAFT-SPINDLE Price: $40.48 |
| 17 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 18 |
80-4380 |
SPACER Price: $4.08 |
| 19 |
62-3661 |
SPACER Price: $10.41 |
| 20 |
88-4510 |
HOUSING-SPINDLE Price: $71.13 |
| 21 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
117-0033 |
DECAL-ROUTING, BELT This part replaces 117137. Price: $4.18 |
| 24 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 25 |
56-6591 |
SCREW-SHOULDER, HWH Price: $7.99 |
| 26 |
701756 |
WHEEL-GAGE Price: $7.59 |
| 27 |
88-5740-03 |
BRACKET-WHEEL, RH This part replaces 88-5740. Price: $26.19 |
| 28 |
88-5750-03 |
BRACKET-LH DECK WHEEL This part replaces 88-5750. Price: $35.64 |
| 29 |
322-3 |
SCREW-HH Price: $0.79 |
