| Ref | Part Number | Description |
|---|
| 1 |
182032 |

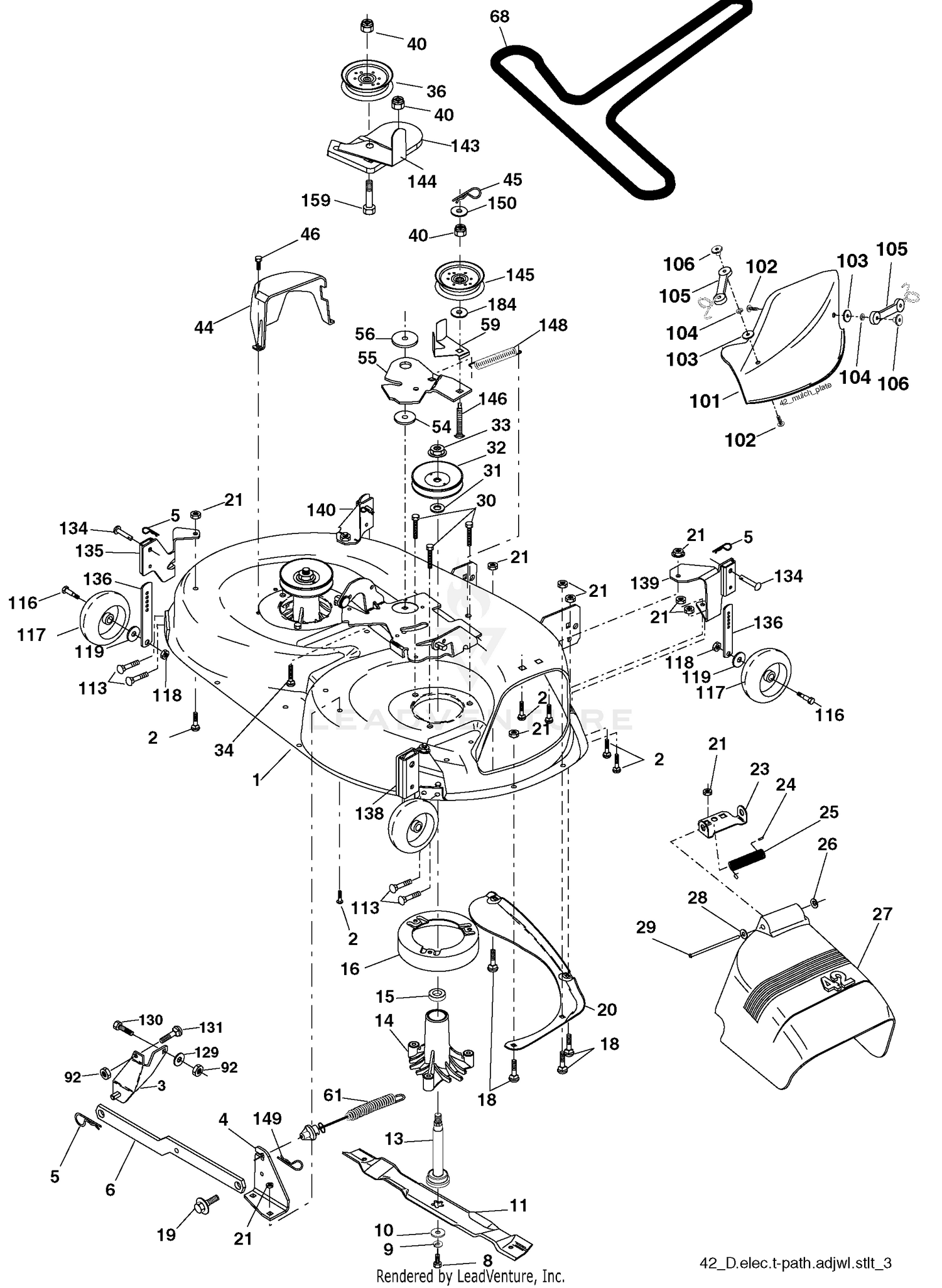

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 010 |
105-3769 |
PIPE-OIL, COMPLETE Price: $58.88 |
| 10 |
140296 |
Washer, Hardened (The following Blades are available) Price: Call Us |
| 11 |
134149 |
Blade, Mulching 42†Std (for mulching mowers only) Price: Call Us |
| 11 |
138971 |
Blade Mower 42†Hi-Lift (for bagging and discharging) Price: Call Us |
| 11 |
139775 |
Blade Mulching 42†Premium (For better wear when mulching) Price: Call Us |
| 13 |
137645 |
Shaft As sem bly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 020 |
115-4126 |
BOLT-JOINT, EYE This part replaces 98-9418. Price: $12.34 |
| 20 |
159770 |
Baffl e, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Defl ector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Defl ector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Defl ector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 030 |
99-8346 |
GASKET Price: $1.43 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 040 |
98-9417 |
BOLT-JOINT, EYE Price: $12.10 |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 050 |
105-3770 |
PIPE-OIL,COMPLETE Price: $20.99 |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 060 |
108-4422 |
GASKET This part replaces 98-9435. Price: $1.48 |
| 61 |
174882 |
Spring Ext Elect. Clutch Price: Call Us |
| 070 |
98-7568 |
BOLT Price: $0.84 |
| 080 |
105-3771 |
OIL PIPE ASM Price: $7.35 |
| 090 |
98-9721 |
PIPE-OIL Price: $14.77 |
| 92 |
73800600 |
Nut Lock Hex w/Ins. 3/8-16 unc Price: Call Us |
| 100 |
98-9714 |
CLAMP-HOSE Price: $2.66 |
| 101 |
136420 |
Cover Mulching Price: Call Us |
| 102 |
17081010 |
Screw Pan Hd Phillip Price: Call Us |
| 103 |
19061216 |
Washer #10 Price: Call Us |
| 104 |
10071000 |
Washer Lock #10 Price: Call Us |
| 105 |
160793 |
Latch Asm. Mulch/Bagger Price: Call Us |
| 106 |
2029J |
Nut Weld Price: Call Us |
| 110 |
98-9601 |
CLAMP-PIPE Price: $6.61 |
| 113 |
17000510 |
Bolt 5/16-18 Hex Whs Hd Lckserr Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin HEx 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765 |
Bracket Asm. Whl Ga. R LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 138 |
159763 |
Bracket Asm Whl Ga. R RH Price: Call Us |
| 139 |
159767 |
Bracket Asm. Whl Ga. F RH Price: Call Us |
| 140 |
159768 |
Bracket Asm Whl Ga. F LH Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
