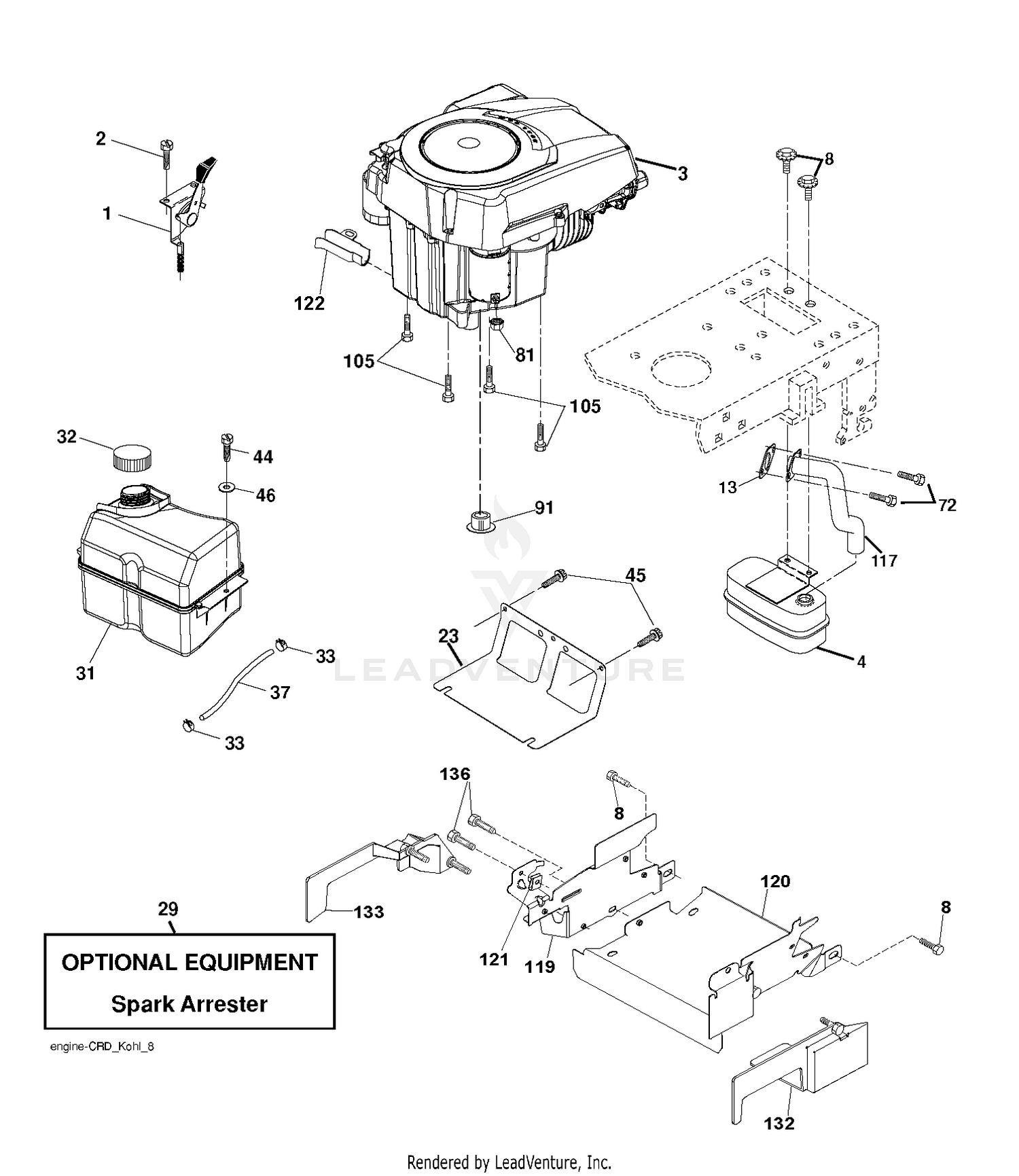

| Ref | Part Number | Description |
|---|
| 1 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 2 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $39.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 13 |
532185909 |
GASKET.EXHAUST.KOHLER Price: $7.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 117 |
583955301 |
TUBE.EXHAUST.KOHLER.COURAGE This part replaces 532188654. Price: $27.99 |
| 119 |
583254301 |
GUARD.ENGINE.CRD.LH This part replaces 532199768. Price: $17.99 |
| 120 |
583254201 |
GUARD.ENGINE.CRD.RH This part replaces 532199767. Price: $29.99 |
| 121 |
532196688 |
CLIPS Price: $3.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $24.99 |
| 132 |
583383301 |
SHIELD.SIDE.CRD.FR.RH This part replaces 532420757. Price: $9.99 |
| 133 |
583383201 |
SHIELD.SIDE.CRD.FR.LH This part replaces 532420756. Price: $6.99 |
| 136 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
