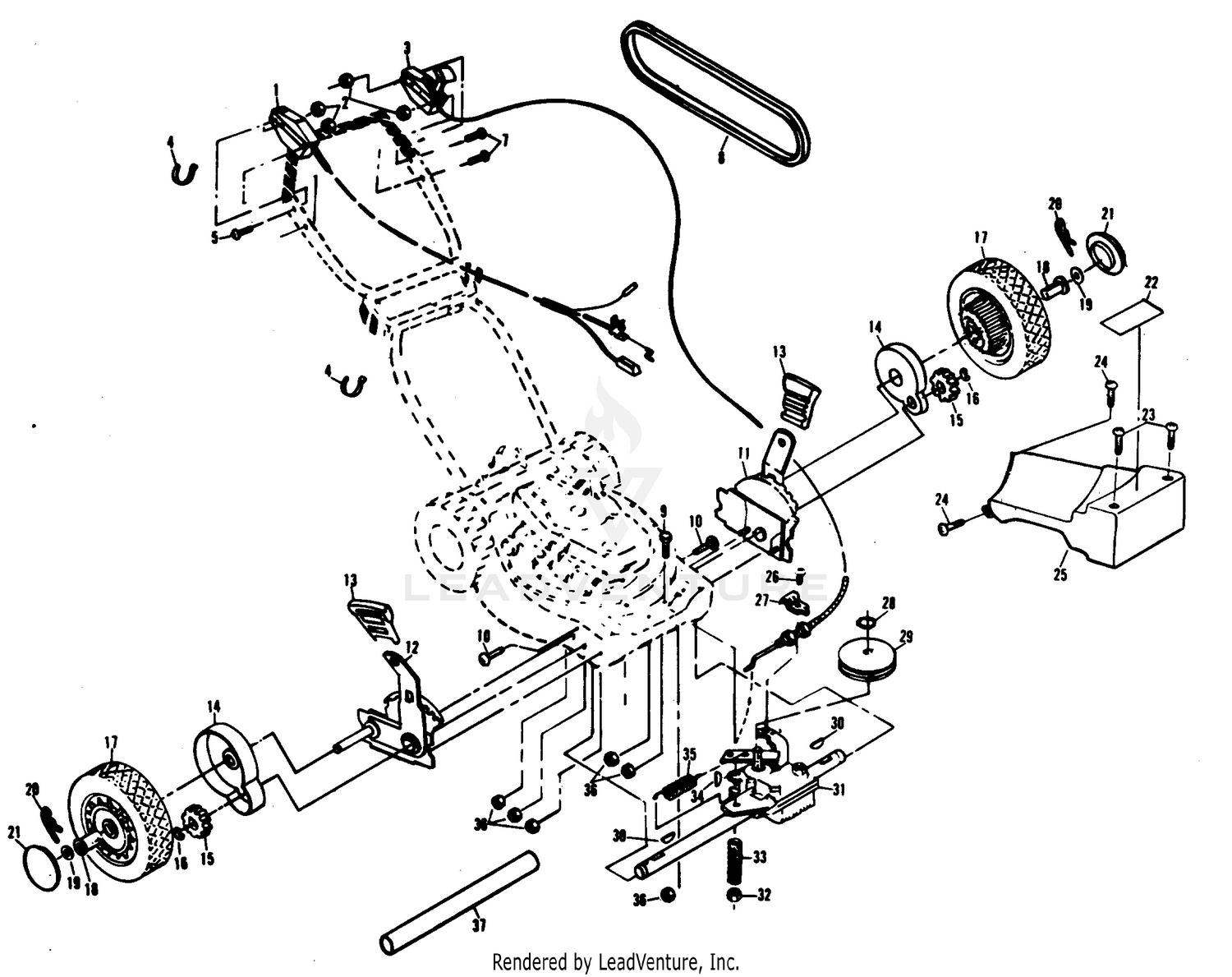

| Ref | Part Number | Description |
|---|
| 1 |
532851098 |
Engine Control Cable (AYP part number) Price: $95.79 |
| 2 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532063601. Price: $1.99 |
| 3 |
532133053 |
DRIVE CONTROL This part replaces 532851097. Price: $119.99 |
| 4 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 5 |
874250434 |
Machine Screw 1/4-20 x 2-1/8 (AYP part number) This part replaces 532085692. Price: $2.99 |
| 7 |
874250434 |
Machine Screw 1/4-20 x 2-1/8 (AYP part number) This part replaces 532085692. Price: $2.99 |
| 8 |
532083691 |
V-Belt Price: $14.99 |
| 9 |
532054338 |
Hex Head Bolt (AYP part number) Price: $1.88 |
| 10 |
874100412 |
Screw (AYP part number) This part replaces 532061528. Price: $2.99 |
| 11 |
532800691 |
Wheel Adjuster Assembly (Left) Price: $3.33 |
| 12 |
532800689 |
Wheel Adjuster Assembly (Right) Price: $3.33 |
| 13 |
532701037 |
SELECTOR KNOB This part replaces 532077865. Price: $2.99 |
| 14 |
532076401 |
Dust Cover (AYP part number) Price: $3.18 |
| 15 |
532074507 |
Pinion (AYP part number) Price: $2.99 |
| 16 |
812000003 |
E-Ring This part replaces 532053753. Price: $3.99 |
| 17 |
583602401 |
WHEEL/TIRE 8X1.75 This part replaces 532850986. Price: $17.99 |
| 18 |
532086960 |
Wheel Bushing (AYP part number) Price: $3.99 |
| 19 |
532052160 |
Flat Washer (AYP part number) Price: $3.99 |
| 20 |
532085179 |
Retainer Clip (AYP part number) Price: $3.99 |
| 21 |
532800543 |
Hubcap Price: $3.33 |
| 22 |
532800681 |
Drive Cover Decal (AYP part number) Price: $3.33 |
| 23 |
532087866 |
Pan Head Tapping Screw (AYP part number) Price: $3.90 |
| 24 |
817021008 |
Screw, Hex Hd. Tap #10-24 x 1/2 (AYP part number) This part replaces 532750097. Price: $1.99 |
| 25 |
532750293 |
Drive Cover (AYP part number) Price: $22.99 |
| 26 |
532750108 |
Hex Washer Head Tapping Screw (AYP part number) Price: $2.99 |
| 27 |
532083700 |
Cable Clamp (AYP part number) Price: $5.99 |
| 28 |
532074976 |
Retaining Ring (AYP part number) Price: $5.46 |
| 29 |
532154753 |
PULLEY KIT This part replaces 532083681. Price: $17.99 |
| 30 |
532065692 |
Woodruff Key #3 (AYP part number) Price: $2.99 |
| 31 |
532048281 |
Gear Case Halves, Upper and Lower (AYP part number) This part replaces 532048184. Price: $101.40 |
| 32 |
873850400 |
This part replaces 532068038. Price: Call Us |
| 33 |
532137090 |
Spring (AYP part number) This part replaces 532083632. Price: $3.99 |
| 34 |
532057076 |
Woodruff Key #213 (AYP part number) Price: $1.93 |
| 35 |
532075192 |
Spring Price: $3.99 |
| 36 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532063601. Price: $1.99 |
