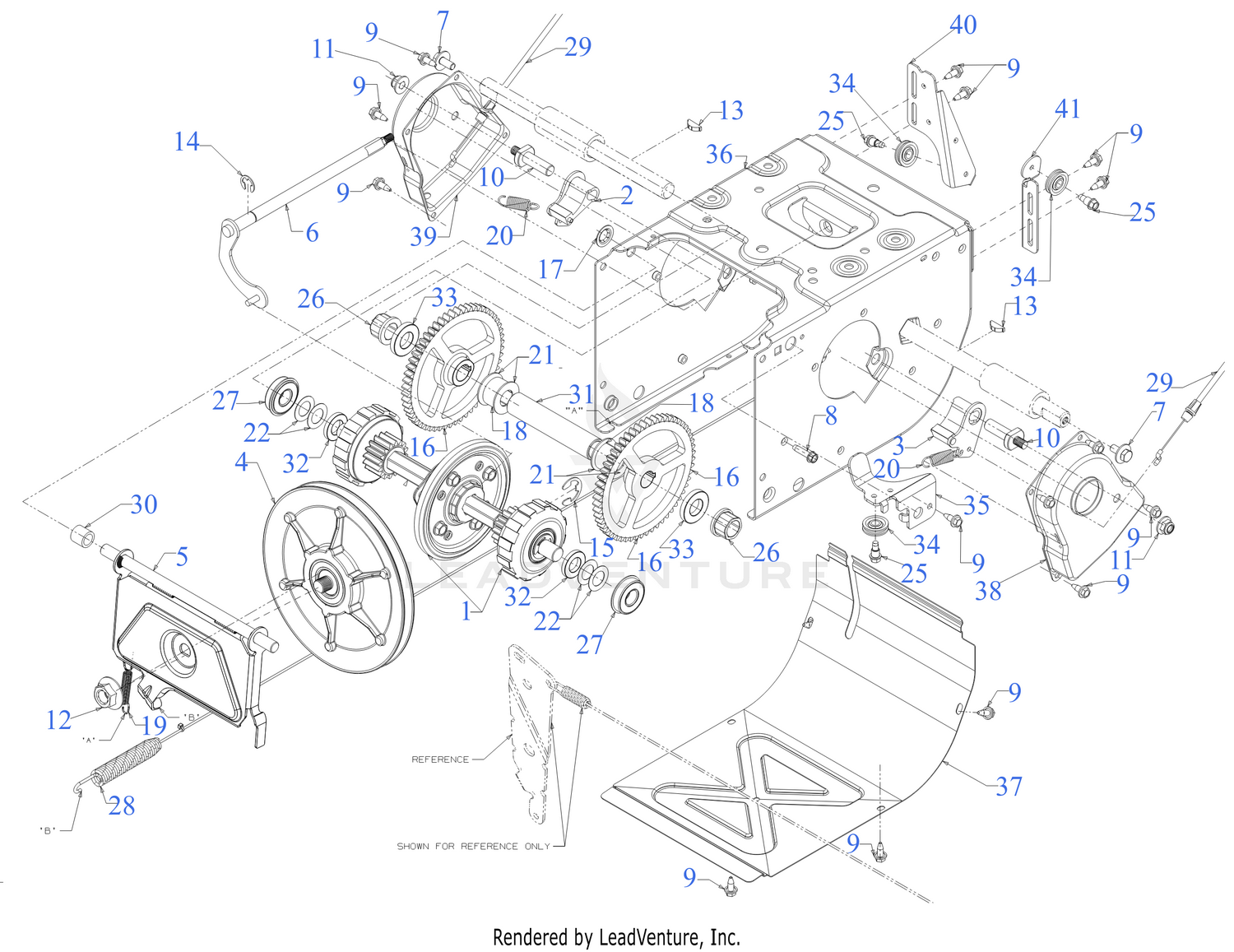

| Ref | Part Number | Description |
|---|
| 2 |
618-06987 |
DOGG ASSEMBLY (RH) Price: $18.62 |
| 3 |
618-06988 |
DOGG ASSEMBLY (LH) Price: $18.62 |
| 4 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY Price: $52.47 |
| 5 |
684-04154B-0637 |
FRICTION WHEEL BRACKET (POWDER BLACK) Price: $36.47 |
| 6 |
684-04156A |
SHIFT ROD ASSEMBLY Price: $54.39 |
| 7 |
710-05339A |
SCREW 5/16-24 x .750 GR5 Price: $3.70 |
| 8 |
710-0788 |
SCREW 1/4-20 x 1.00 Price: $6.20 |
| 9 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 10 |
711-1268B |
ACTUATOR SHAFT Price: $8.86 |
| 11 |
712-04065 |
NUT Price: $3.68 |
| 12 |
712-05134 |
FLANGE NUT 5/8-18 Price: $5.52 |
| 13 |
714-0126 |
KEY 3/16 x 3/4 Price: $4.05 |
| 14 |
916-0104 |
E-RING FOR .500 SHAFT Price: $3.37 |
| 15 |
716-0136 |
RETAINING RING Price: $7.56 |
| 16 |
917-04210 |
GEAR-56T Price: $69.94 |
| 17 |
726-0221 |
PUSH CAP Price: $5.34 |
| 18 |
731-05297 |
SPACER: .76ID x .75 Price: $8.47 |
| 19 |
932-0264 |
EXTENSION SPRING Price: $4.40 |
| 20 |
732-04345 |
EXTENSION SPRING Price: $9.09 |
| 21 |
736-0445 |
FLAT WASHER Price: $3.95 |
| 22 |
736-05031 |
FLAT WASHER .67X 1.174X .02 Price: $2.77 |
| 25 |
738-04425 |
SHOULDER SCREW Price: $3.60 |
| 26 |
941-0245 |
FLANGE BEARING Price: $9.07 |
| 27 |
941-0563 |
BALL BEARING W/RET Price: $33.84 |
| 28 |
732-0463A |
EXTENSION SPRING .55 x 6.25 Not Available Price: |
| 28 |
946-05067 |
WHEEL DRIVE CABLE 44.955" Price: $22.36 |
| 29 |
946-0956C |
STEERING CABLE Price: $21.54 |
| 30 |
748-0190 |
SPACER-.513 ID x .703 OD x .69 Price: $5.48 |
| 31 |
750-04474 |
AXLE SUPPORT TUBE Price: $36.90 |
| 32 |
750-06087 |
SPACER Price: $3.70 |
| 33 |
750-0767 |
AXLE SPACER Price: $5.11 |
| 34 |
756-0625 |
CABLE GUIDE ROLLER Price: $8.52 |
| 40 |
790-03997 |
CABLE GUIDE BRACKET (DRIVE) Price: $4.55 |
