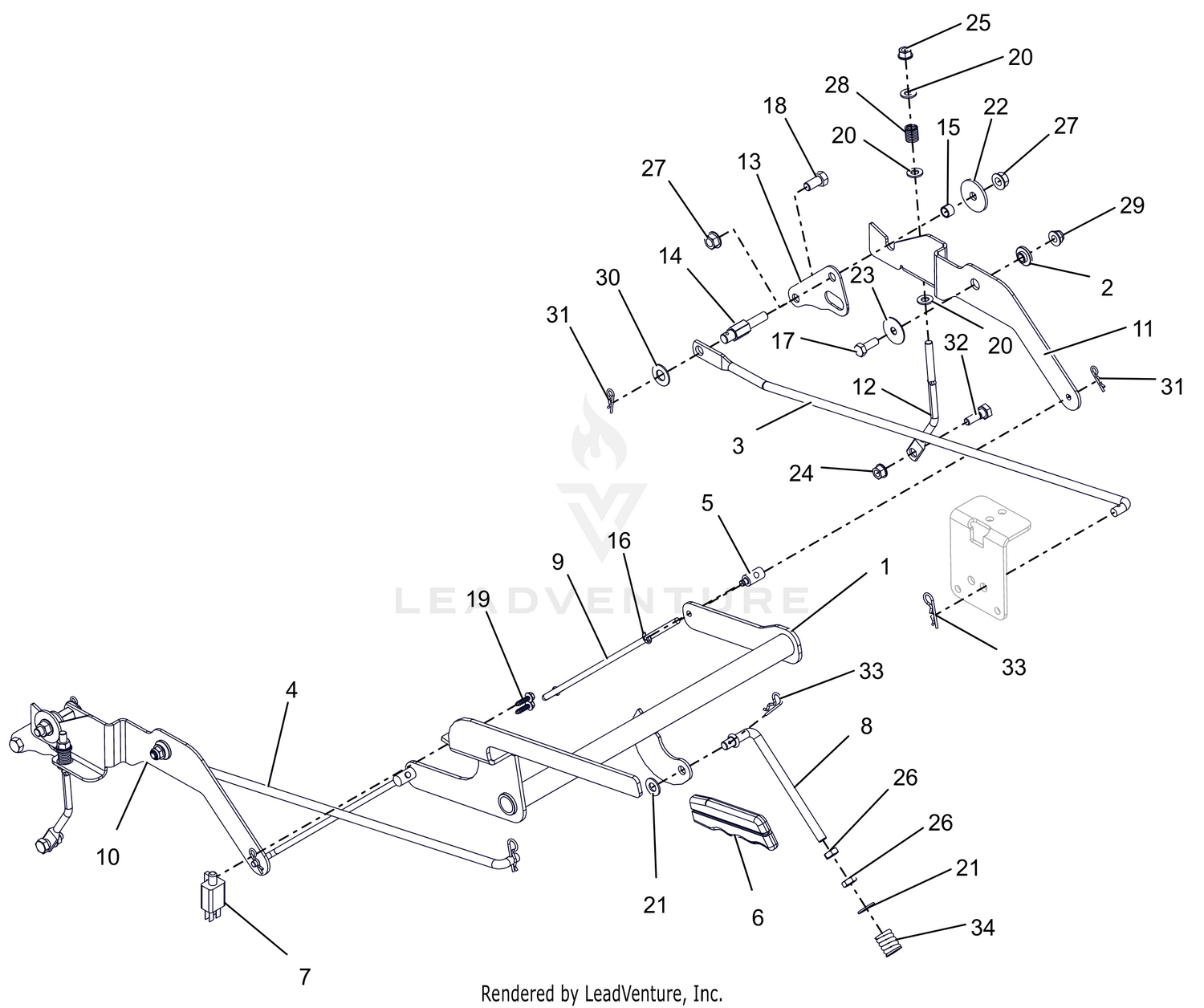

| Ref | Part Number | Description |
|---|
| 1 |
04787851 |
WLDMT, BRAKE LEVER Price: $36.95 |
| 2 |
01305900 |
BSHG, FLG .325X.499X.26X.88 Price: $1.95 |
| 3 |
05245700 |
LINKAGE, STEERING - LH Price: $22.95 |
| 4 |
05245600 |
LINKAGE, STEERING - RH Price: $22.95 |
| 5 |
03764800 |
TRUNION, 1/4-20 Price: $12.45 |
| 6 |
03826900 |
GRIP, PARKING BRAKE (YELLOW) Price: $3.95 |
| 7 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 8 |
04787900 |
LINK, OVER CENTER, PARKING BRK Price: $18.45 |
| 9 |
04788000 |
LINK, BRAKE ARM Price: $12.45 |
| 10 |
04788100 |
INTERLOCK, RH BRAKE LINK This part replaces 04788151. Price: $21.45 |
| 11 |
04790400 |
INTERLOCK, LH BRAKE LINK This part replaces 04790451. Price: $20.45 |
| 12 |
04879600 |
LINK, BRAKE (XL) Price: $14.95 |
| 13 |
04799351 |
PLATE, TRANSAXLE ADAPTOR Price: $6.45 |
| 14 |
05245800 |
POST, STEERING LINK MOUNTING Price: $9.45 |
| 15 |
05501235 |
SPCR, SLV .385X.500X.350 Price: $1.45 |
| 16 |
05700125 |
RG-RTNG-EXT .250X.025 Price: $0.95 |
| 17 |
05901801 |
BLT, HEX .31-18X.875 G5 ZCC Price: $2.45 |
| 18 |
05901702 |
BLT,HEX .38-16X.75 G5 ZCC Price: $1.45 |
| 19 |
06100232 |
SCR, PLASTITE #12X.75 ZCC Price: $0.95 |
| 20 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC Price: $0.45 |
| 21 |
06401013 |
WSHR,FLT .406X.812X.065 ZCC Price: $0.95 |
| 22 |
06401106 |
WSHR, FLT .380X1.50X.125 ZCC Price: $3.45 |
| 23 |
06401105 |
WSHR, FLT .347X1.254X.048 ZCC Price: $2.45 |
| 24 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 25 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC Price: $0.95 |
| 26 |
06500910 |
NUT-JAM .375-16 G2 ZCC Price: $0.95 |
| 27 |
06500901 |
NUT-LK-CTR-FLG .375-16 GF ZCC Price: $0.95 |
| 28 |
08300028 |
SPRING, COMPRESSION Price: $4.45 |
| 29 |
06500809 |
NUT,LK-NYL-FLG .31-18 G5ZC120 Price: $1.45 |
| 30 |
06401112 |
WSHR, FLT .505X1.00X.062 ZCC Price: $0.95 |
| 31 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC Price: $0.45 |
| 32 |
07001734 |
BOLT,SHLDR .38X.25 -.31-18X.75 Price: $2.95 |
| 33 |
06700219 |
PIN, HAIR #203 .09X1.50 ZCC Price: $2.45 |
