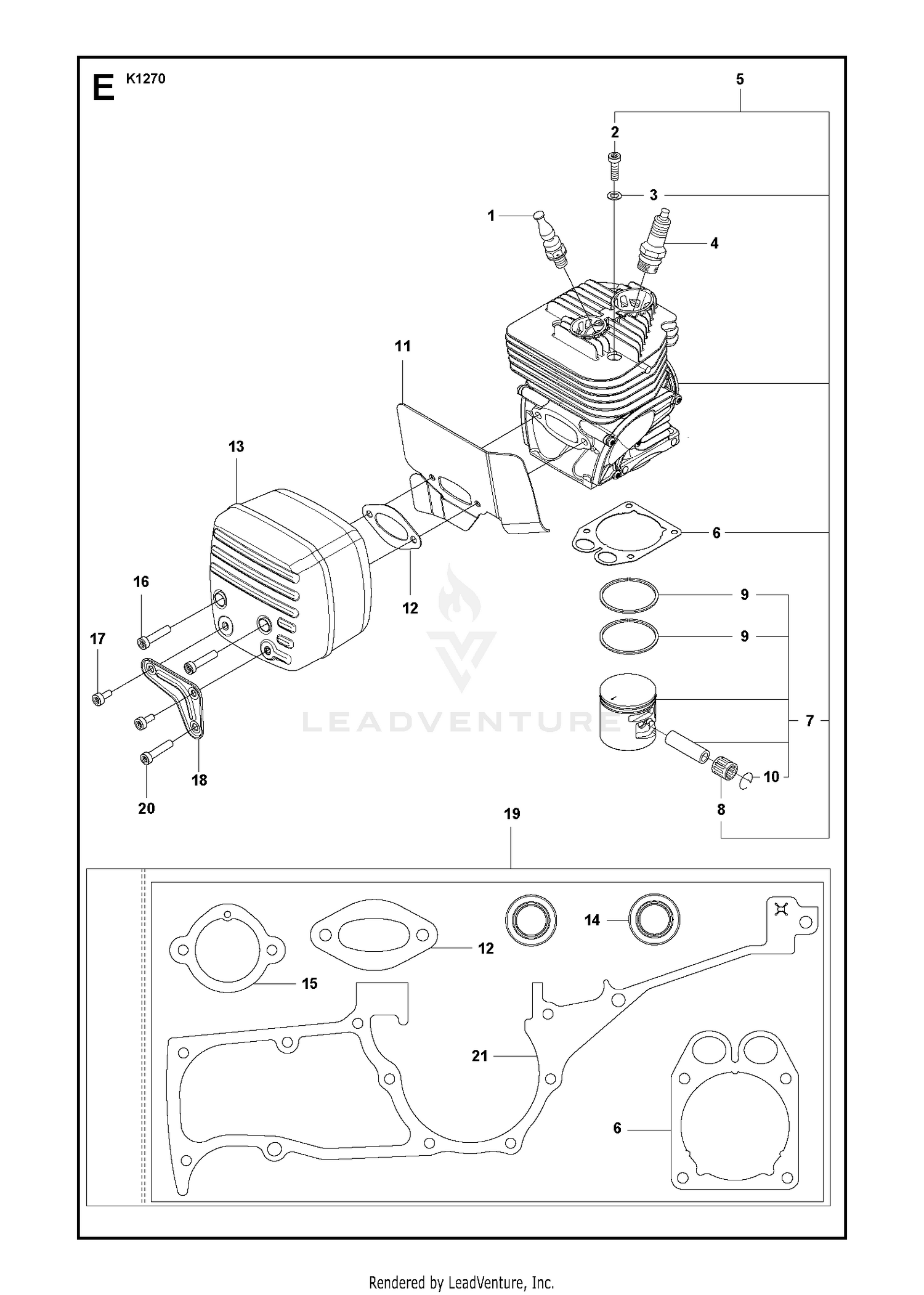

CYLINDER, PISTON & MUFFLER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 584912204 | DECOMPRESSION VALVE TOP K1270 Price: $32.99 |
| 2 | 516002401 | SCREW UNC Price: $3.99 |
| 3 | 503230005 | WASHER 6.5X11 Price: $2.99 |
| 6 | 587536201 | GASKET CYLINDER Price: $5.99 |
| 8 | 503132901 | SUPPORT BUSHING Price: $9.99 |
| 9 | 587830001 | PISTON RING D60 Price: $14.99 |
| 10 | 737441300 | CLIP Price: $1.99 |
| 11 | 587536301 | HEAT DEFLECTOR Price: $19.99 |
| 14 | 503260205 | SEALING RING Price: $11.99 |
| 15 | 579851101 | GASKET K1270 Price: $3.99 |
| 16 | 544218407 | SCREWS Price: $2.99 |
| 17 | 503215312 | SCREW Price: $3.99 |
| 18 | 502850801 | SUPPORT Price: $9.99 |
| 19 | 582454801 | GASKET KIT K1270 Price: $17.99 |
| 20 | 544218420 | SCREW ITXSCM Price: $3.99 |
| 21 | 582350001 | GASKET GASKET CRANKCASE K1270 Price: $3.99 |
