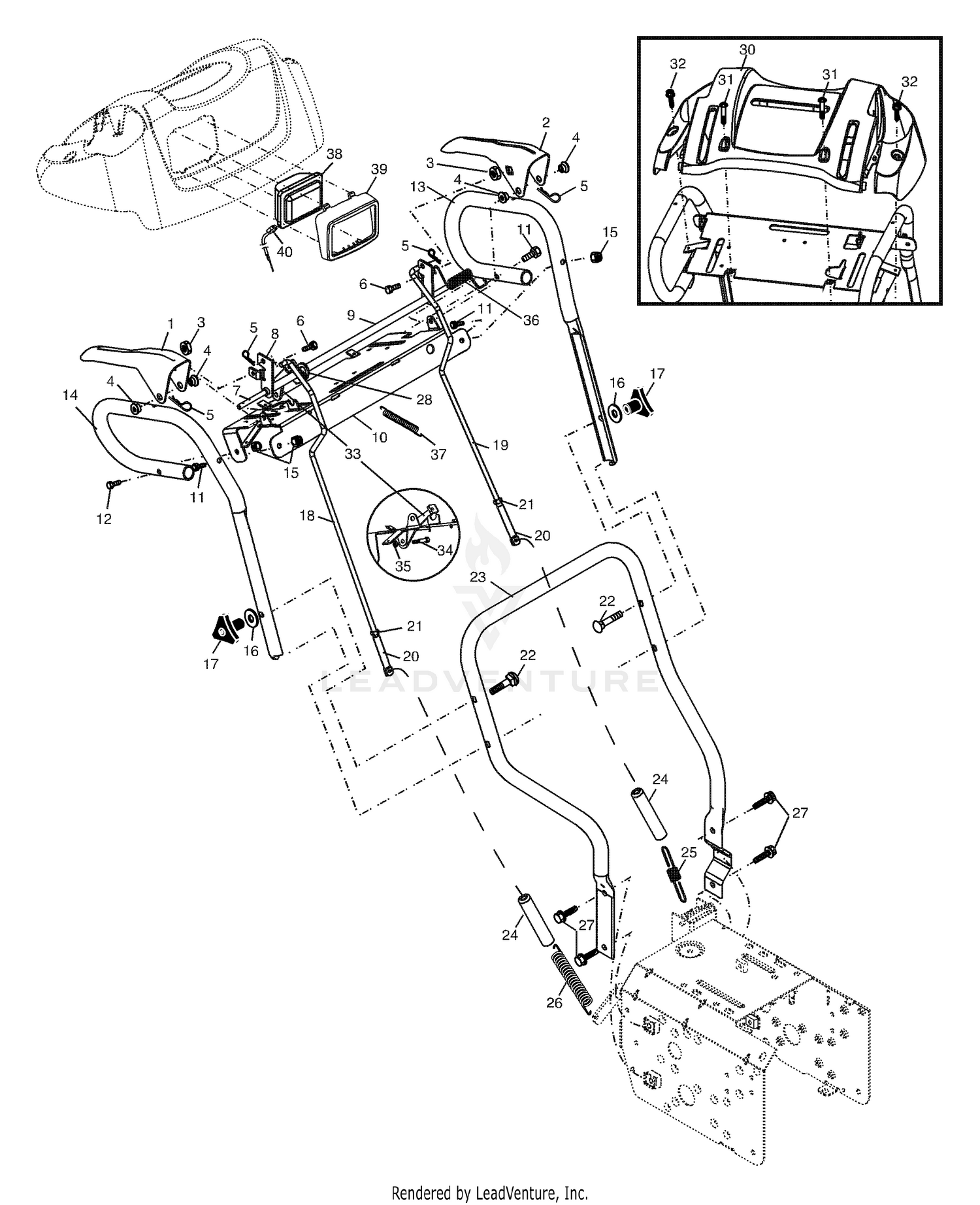

| Ref | Part Number | Description |
|---|
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532184110. Price: $22.99 |
| 1 |
94-3145 |
SCREW-PULLEY Price: $9.84 |
| 2 |
532184109 |
LEVER, TRACTION DRIVE CONTROL Price: $9.99 |
| 2 |
74-8080 |
WASHER Price: $4.77 |
| 3 |
532179439 |
NUT, CAGE 1/4-20 Price: $2.99 |
| 3 |
94-3144 |
PULLEY-CRANKSHAFT Price: $766.47 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 4 |
74-8100 |
GEAR-PINION Price: $58.79 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 5 |
98-3833 |
GEAR - OIL PUMP This part replaces 74-8110. Price: $26.24 |
| 6 |
532199640 |
SCREW HEX This part replaces 532180402. Price: $3.99 |
| 6 |
74-8120 |
KEY-WOODRUFF Price: $3.36 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 7 |
94-3150 |
SCREW-HH Price: $1.50 |
| 8 |
532184003 |
TUBE ASSM, INTERLOCK Price: $13.99 |
| 8 |
74-7560 |
LOCKWASHER This part replaces 94-3151. Price: $0.67 |
| 9 |
532178651 |
TUBE.WELDMENT.INTERLOCK.LH Price: $20.99 |
| 9 |
74-8140 |
COVER Price: $137.43 |
| 10 |
532178645 |
PANEL, CONTROL This part replaces 532184106. Price: $22.99 |
| 10 |
74-8150 |
GASKET-COVER Price: $4.08 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 11 |
94-3148 |
SEAL Price: $33.41 |
| 12 |
74-8170 |
BEARING SET (STD) Price: $208.01 |
| 12 |
74-8180 |
BEARING SET (.30MM OS) SET OF 10 Price: $209.92 |
| 12 |
874780528 |
SCREW Price: $4.99 |
| 13 |
532436114 |
TUBE.HANDLE.LOOP.LH.BLACK This part replaces 532184107. Price: $54.99 |
| 13 |
74-8200 |
THRUST BEARING SET Price: $92.03 |
| 13 |
74-8210 |
THRUST BEARING SET Price: $108.36 |
| 13 |
74-8220 |
THRUST BEARING SET Price: $27.91 |
| 13 |
94-3141 |
DISCONTINUED Price: Call Us |
| 14 |
532407857 |
TUBE.HANDLE.LOOP.RH.BLACK This part replaces 532184108. Price: $39.99 |
| 14 |
74-8230 |
SHAFT-CRANK Price: $3,552.00 |
| 15 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 15 |
74-8240 |
DISCONTINUED Price: Call Us |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
74-8250 |
PIN This part replaces 74-7990. Price: $0.97 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 17 |
94-3149 |
GEAR-FLYWHEEL Price: $113.49 |
| 18 |
532184594 |
ROD.AUGER.CONTROL Price: $54.99 |
| 18 |
74-8270 |
DISCONTINUED Price: Call Us |
| 19 |
532193081 |
ROD.CABLE.TRACTION.LONG Price: $11.99 |
| 19 |
74-8280 |
SCREW-HH Price: $4.63 |
| 20 |
532180428 |
ROD, END CONTROL Price: $8.99 |
| 20 |
74-8290 |
DISCONTINUED Price: Call Us |
| 21 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 21 |
74-8300 |
CLIP-PIN, PISTON Price: $2.96 |
| 22 |
74-8310 |
PIN-PISTON Price: $24.33 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 23 |
74-8320 |
DISCONTINUED Price: Call Us |
| 23 |
74-8330 |
PISTON RING SET Price: $277.15 |
| 23 |
74-8340 |
PISTON RING SET Price: $173.77 |
| 23 |
94-3158 |
PISTON RING SET Price: $233.60 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 24 |
98-9965 |
DISCONTINUED This part replaces 94-3154. Price: Call Us |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 25 |
74-8360 |
CONNECTING ROD This part replaces 94-3153. Price: $1,118.95 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 27 |
74-8380 |
DISCONTINUED Price: Call Us |
| 27 |
74-8390 |
BRG - CONNECTING ROD This part replaces 94-3155. Price: $427.80 |
| 27 |
871210616 |
Screw, Hex Head 3/8-16 x 1 Price: $4.99 |
| 28 |
532180494 |
PANEL CLIP Price: $2.64 |
| 28 |
74-8400 |
BOLT-ROD, CONNECTING Price: $23.09 |
| 29 |
74-8420 |
PISTON SET Price: $3,551.52 |
| 29 |
74-8430 |
PISTON SET Price: $3,570.53 |
| 29 |
74-8440 |
PISTON SET Price: $2,151.01 |
| 29 |
94-3157 |
PISTON SET Price: $3,570.53 |
| 30 |
532182906 |
PANEL.CONSOLE.SNOW Price: $39.99 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 33 |
532184111 |
ARM.LATCH.INTERLOCK.YELLOW Price: $3.99 |
| 33 |
94-3152 |
SCREW-HH Price: $2.62 |
| 34 |
532183518 |
BOLT, SHOULDER Price: $2.99 |
| 35 |
873850400 |
This part replaces 532068038. Price: $2.51 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
| 37 |
532178658 |
SPRING, INTERLOCK Price: $2.99 |
| 38 |
532178666 |
HEADLIGHT.HALOGEN.SNOW Price: $219.99 |
| 39 |
532178668 |
BEZEL.HEADLIGHT.BLACK Price: $5.99 |
