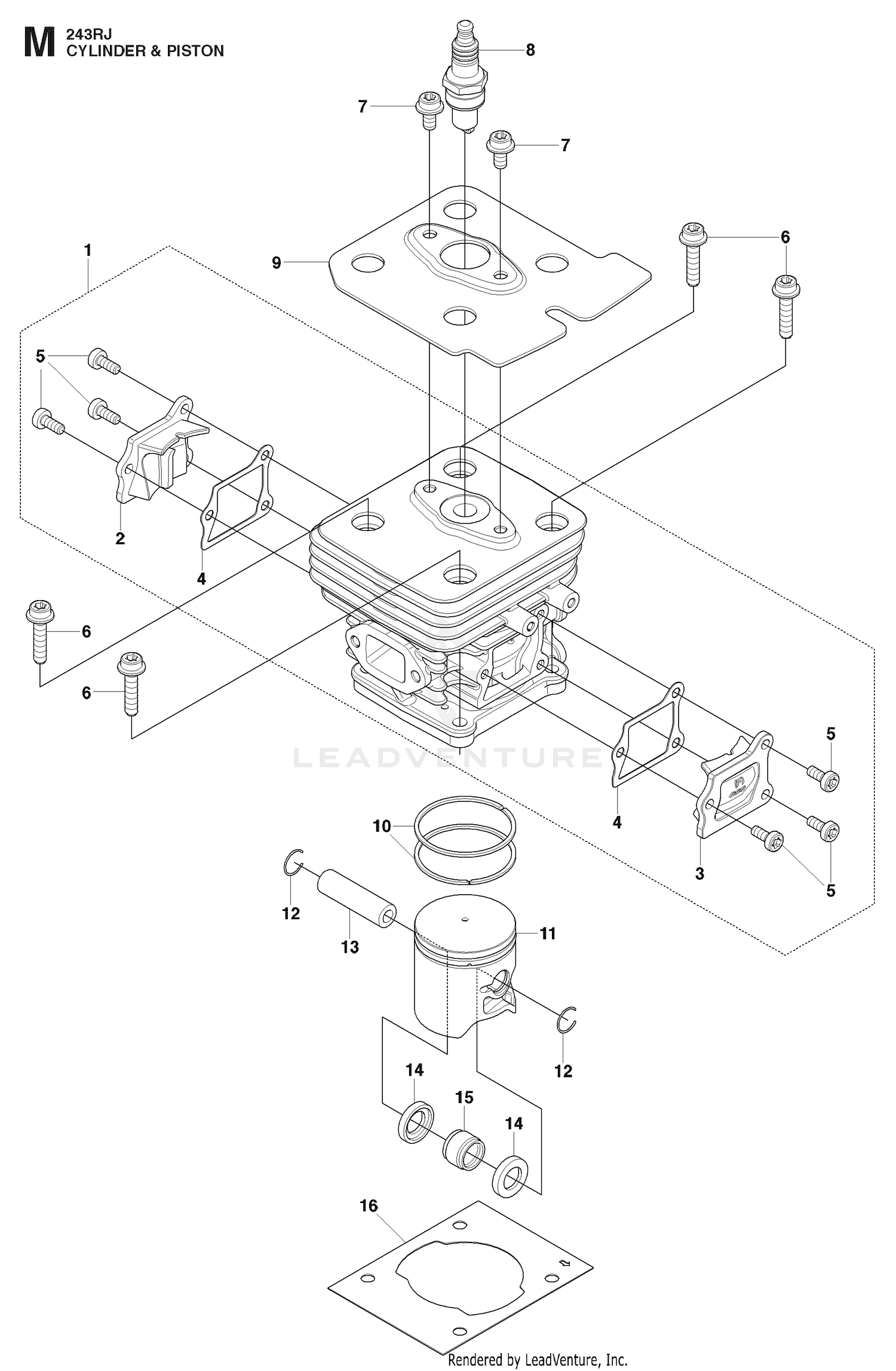

| Ref | Part Number | Description |
|---|
| 1 |
33118-035 |
SCREW-HH Price: $3.32 |
| 1 |
521621901 |
CYLINDER-COMP 848GG01211 Price: $68.99 |
| 2 |
521622101 |
COVER TRS STARTER SIDE Price: $3.99 |
| 2 |
69-8420 |
WASHER-LOCK Price: $1.42 |
| 3 |
104-9868 |
WASHER-FLAT Price: $94.18 |
| 3 |
521622201 |
COVER,TRF FLYWHEEL SIDE Price: $5.99 |
| 4 |
100-5386 |
BEARING-ROLLER Price: $37.95 |
| 4 |
521622301 |
NEEDS DESCRIPTION Price: Call Us |
| 5 |
100-5387-03 |
TINE ARM ASM Price: $703.24 |
| 5 |
504119201 |
BOLT This part replaces 521515601. Price: $1.99 |
| 6 |
100-5390 |
SPACER-TUBE Price: $24.85 |
| 6 |
506745201 |
BOLT This part replaces 506616001. Price: $4.99 |
| 7 |
100-5392 |
BELT-5VX Price: $36.43 |
| 8 |
33119-120 |
SCREW-HH Price: $14.56 |
| 8 |
506615101 |
SPARK PLUG NGK CMR7H Price: $8.99 |
| 9 |
33115-120 |
SCREW-HH Price: $4.61 |
| 9 |
525418101 |
PLATE Price: $11.99 |
| 10 |
33099-00 |
WASHER-FLAT Price: $0.95 |
| 10 |
510918001 |
RING PISTON This part replaces 516802001. Price: $5.99 |
| 11 |
100-7640 |
BOTTOM LINK ASM Price: $616.01 |
| 11 |
525417901 |
NEEDS DESCRIPTION Price: Call Us |
| 12 |
100-5391 |
TUBE-SPACER Price: $14.28 |
| 12 |
516283001 |
RING Price: $2.99 |
| 13 |
100-7607 |
WASHER-LOCK Price: $2.71 |
| 13 |
521522701 |
PIN Price: $4.99 |
| 14 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 14 |
513752401 |
WASHER This part replaces 516965701. Price: $5.99 |
| 15 |
505297301 |
ROLLER BEARING This part replaces 521794701. Price: $6.99 |
| 16 |
521622001 |
GASKET TR Price: $3.99 |
