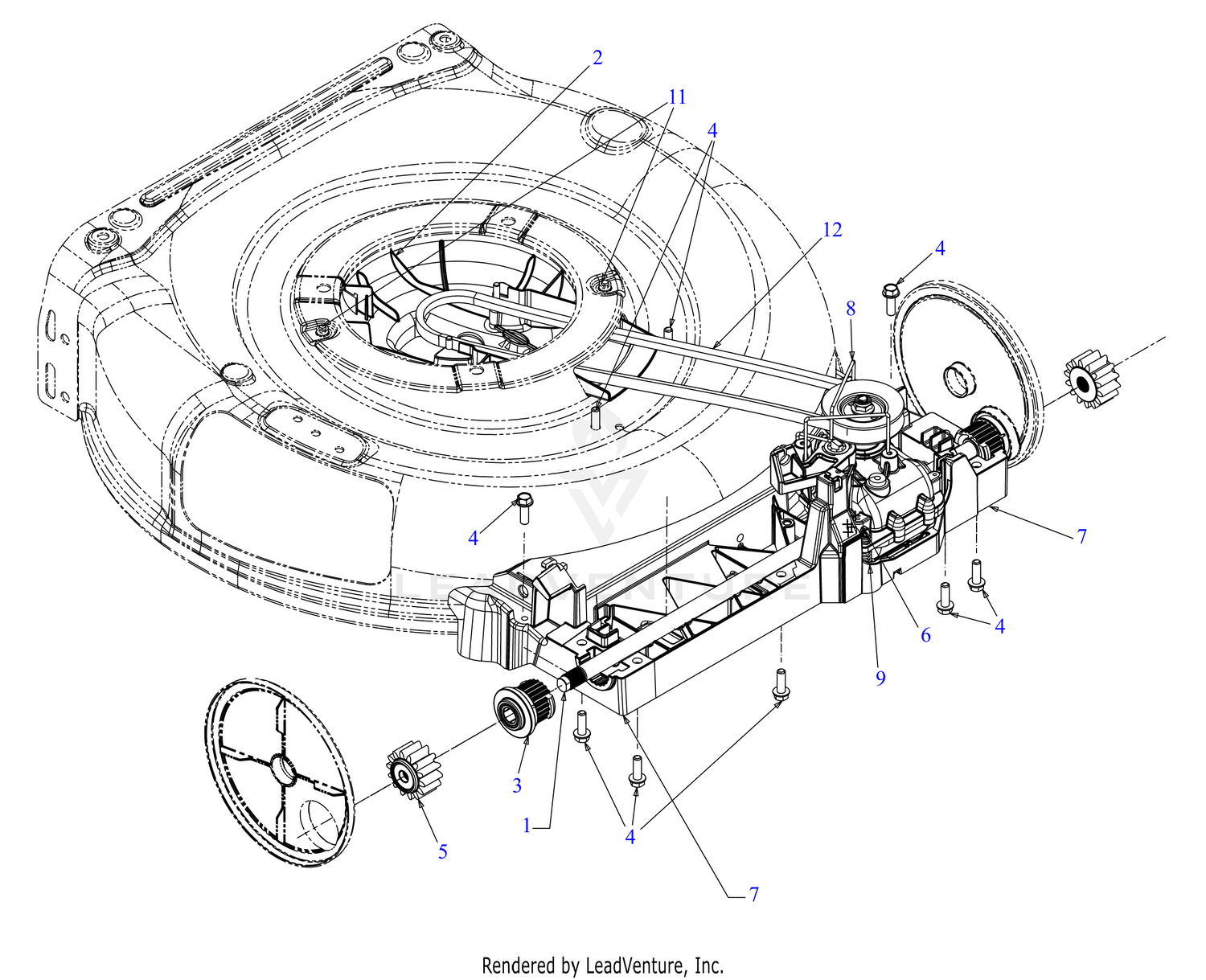

Drive
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 931-04535C | ENGINE BAFFLE ASSEMBLY Price: $12.58 |
| 3 | 941-00019 | BEARING ASSEMBLY Price: $5.78 |
| 4 | 710-0895 | SCREW 1/4-15 x .750 Price: $5.82 |
| 5 | 717-05432 | SPUR GEAR (14T) (RH) Price: $38.72 |
| 6 | 731-07355 | SPRING COMPRESSION Price: $4.99 |
| 7 | 731-07789A | LOWER TRAY Price: $29.05 |
| 8 | 732-04675B | TRANSMISSION WIRE This part replaces 732-04675A. Price: $3.48 |
| 9 | 732-04704 | COMPRESSION SPRING Price: $3.76 |
| 11 | 738-04502 | SHOULDER SCREW 1/4-20 x .50 Price: $3.75 |
