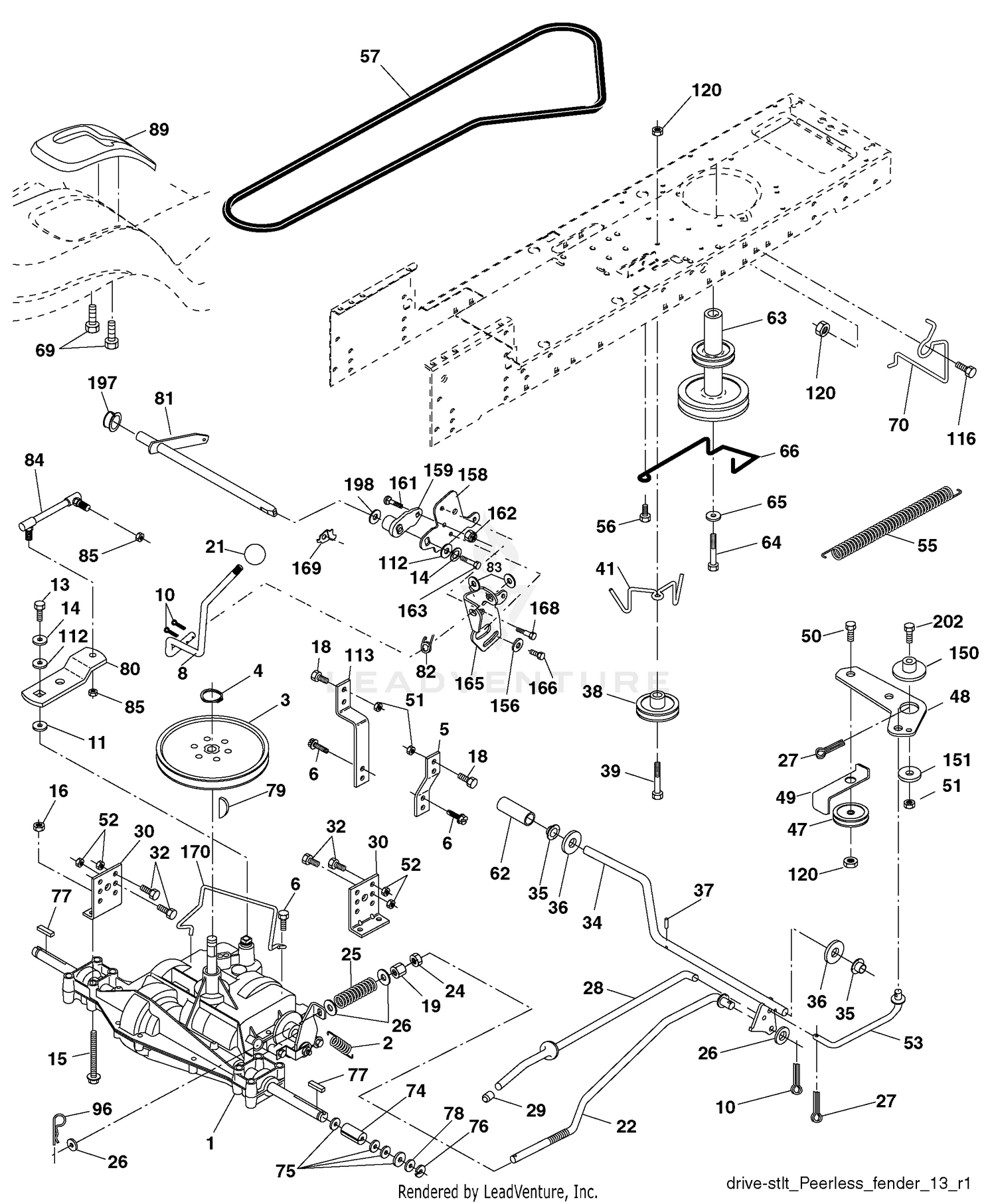

| Ref | Part Number | Description |
|---|
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
123666X |
Pulley Transaxle 18" Tires Price: Call Us |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 6 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
139-6524 |
ENGINE-BRIGGS STRATTON,VANGUARD This part replaces 106-4618. Price: $2,957.43 |
| 8 |
192706 |
Rod Shift Fender Adjust Lt Price: Call Us |
| 9 |
98-0616 |
MUFFLER Price: $136.88 |
| 10 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400-03. Price: $18.94 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 12 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 13 |
74550412 |
Bolt 1/4-28 unf Gr. 8 w/Patch Price: Call Us |
| 13 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
322-8 |
SCREW-HH Price: $1.26 |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
74490544 |
Bolt Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 16 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 17 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 18 |
74780616 |
Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 19 |
73800600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 19 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 20 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 22 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 23 |
324-7 |
SCREW-HH Price: $1.79 |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 26 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 30 |
174973 |
Bracket Mtg Transaxle Price: Call Us |
| 30 |
43-2830 |
NUT-HEX Price: $0.39 |
| 31 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc x 3/4 Price: Call Us |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Ga. Price: Call Us |
| 37 |
1572H |
Pin Roll 3/16 x 1" Price: Call Us |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 39 |
72110622 |
Bolt RDHD 3/8-16 unc x 2-3/4 Gr. 5 Price: Call Us |
| 41 |
175556 |
Keeper Belt Flat Idler Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Asm Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
72110612 |
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
199652 |
Link Clutch Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
138255 |
V-Belt Ground Drive Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley Price: Call Us |
| 64 |
173937 |
Bolt Hex Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Foolproof Price: Call Us |
| 69 |
142432 |
Screw Hex wsh HiLo 1/4 x 1/2 unc Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 x 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 Price: Call Us |
| 80 |
131486 |
Arm Shift Price: Call Us |
| 81 |
165594 |
Shaft Asm Cross Tapered PMST/20 Price: Call Us |
| 82 |
165711 |
Spring Torsion T/a Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
166228 |
Link Transaxle Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4 - 28 FNTHD Price: Call Us |
| 89 |
192053X428 |
Console Shift STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque LT Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Tapered Flange Shift Lt Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 170 |
187414 |
Keeper Belt Transaxle Gear Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In Price: Call Us |
| 198 |
169593 |
Washer Nyliner Price: Call Us |
