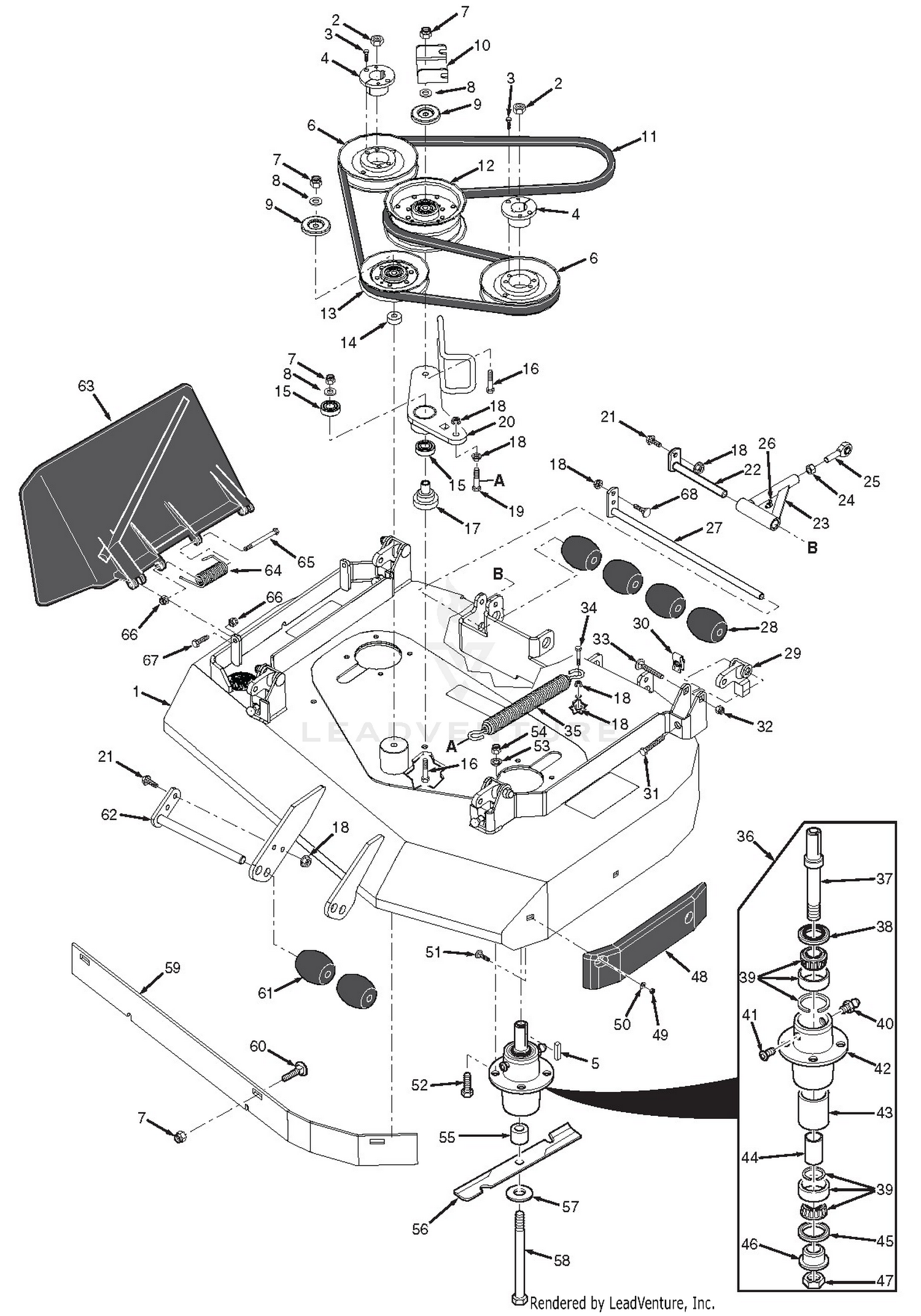

| Ref | Part Number | Description |
|---|
| 1 |
462361 |
Cutter Deck w/Decals - 36A Price: Call Us |
| 2 |
04020-09 |
Nut, 5/8-11 UNC Price: Call Us |
| 3 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Price: Call Us |
| 4 |
48926 |
Tapered Hub, 1.125" Bore Price: Call Us |
| 5 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 6 |
483284 |
Pulley, 5.73 OD Tapered Bore Price: Call Us |
| 7 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 8 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 9 |
424367 |
Dust Shield Price: Call Us |
| 10 |
424615 |
Bracket, Belt Guide Price: Call Us |
| 11 |
483969 |
Belt, Cutter Deck Price: Call Us |
| 12 |
483210 |
Pulley, 5" Idler Price: Call Us |
| 13 |
48181 |
Pulley, Idler Price: Call Us |
| 14 |
43077 |
Spacer Price: Call Us |
| 15 |
48224 |
Bearing Price: Call Us |
| 16 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 17 |
43816 |
Pivot, Idler Price: Call Us |
| 18 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 19 |
04001-136 |
Bolt, Hex Head 5/16-18 x 1-1/2" Gr.8 Price: Call Us |
| 20 |
462233 |
Idler Arm Assy. Price: Call Us |
| 21 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 22 |
451724 |
Shaft Weldment, Pusharm Mount Price: Call Us |
| 23 |
462712 |
PUSHARM ASSY, SVR - LH This part replaces 461755. Price: Call Us |
| 23 |
462713 |
PUSHARM ASSY, SVR - RH This part replaces 461756. Price: Call Us |
| 24 |
04020-08 |
Nut, 1/2-20 UNF Price: Call Us |
| 25 |
48542 |
Rod End, 1/2-20 RH Price: Call Us |
| 26 |
48114-08 |
Grease Fitting Price: Call Us |
| 27 |
452076 |
Shaft Weldment Price: Call Us |
| 28 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 29 |
483361 |
Lever, Deck Level Price: Call Us |
| 30 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 31 |
04107-04 |
Bolt, Hex Head 3/8-16 x 2" Special Price: Call Us |
| 32 |
04021-11 |
Nut, Elastic Stop 7/16-14 Price: Call Us |
| 33 |
04003-42 |
Bolt, Carriage 7/16-14 x 2-1/4" Price: Call Us |
| 34 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Gr.8 Price: Call Us |
| 35 |
484020 |
Spring Price: Call Us |
| 36 |
461663 |
Spindle Assembly Price: Call Us |
| 37 |
43589 |
Shaft, Spindle Price: Call Us |
| 38 |
481024 |
Seal, Upper Price: Call Us |
| 39 |
481022 |
Bearing Assembly Price: Call Us |
| 40 |
48114-04 |
Grease Fitting Price: Call Us |
| 41 |
48677 |
Valve, Grease Relief Price: Call Us |
| 42 |
43644 |
Housing, Spindle Price: Call Us |
| 43 |
43312 |
Spacer, Outside Price: Call Us |
| 44 |
43296 |
Spacer, Inside Price: Call Us |
| 45 |
481025 |
Seal, Lower Price: Call Us |
| 46 |
43297 |
Bushing, Lower Price: Call Us |
| 47 |
481035 |
Nut, Special 1-1/16" - 18 Price: Call Us |
| 48 |
483174 |
Pad, Deck Wear Price: Call Us |
| 49 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 50 |
04040-04 |
Flatwasher, 5/16-.344 x .688 x .065 Price: Call Us |
| 51 |
04003-12 |
Bolt, Carriage 5/16-18 x 1-3/4" Price: Call Us |
| 52 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 53 |
04030-03 |
Lockwasher, 5/16" Spring Price: Call Us |
| 54 |
04021-22 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 55 |
43590 |
Spacer, Spindle Bottom Price: Call Us |
| 56 |
482878 |
Cutter Blade, 18" (52H) Price: Call Us |
| 57 |
04043-06 |
Flatwasher, 5/8-.688 x 1.75 x .134 HD Price: Call Us |
| 58 |
04001-41 |
Bolt, Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 59 |
423783 |
Baffle, Flange 36A Price: Call Us |
| 60 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 61 |
482295 |
Wheel, Anti-Scalp Price: Call Us |
| 62 |
451926 |
Shaft Weldment Price: Call Us |
| 63 |
461356 |
Discharge Chute Assembly Price: Call Us |
| 64 |
482245 |
Spring, Discharge Chute Price: Call Us |
| 65 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-3/4" Price: Call Us |
| 66 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 67 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
