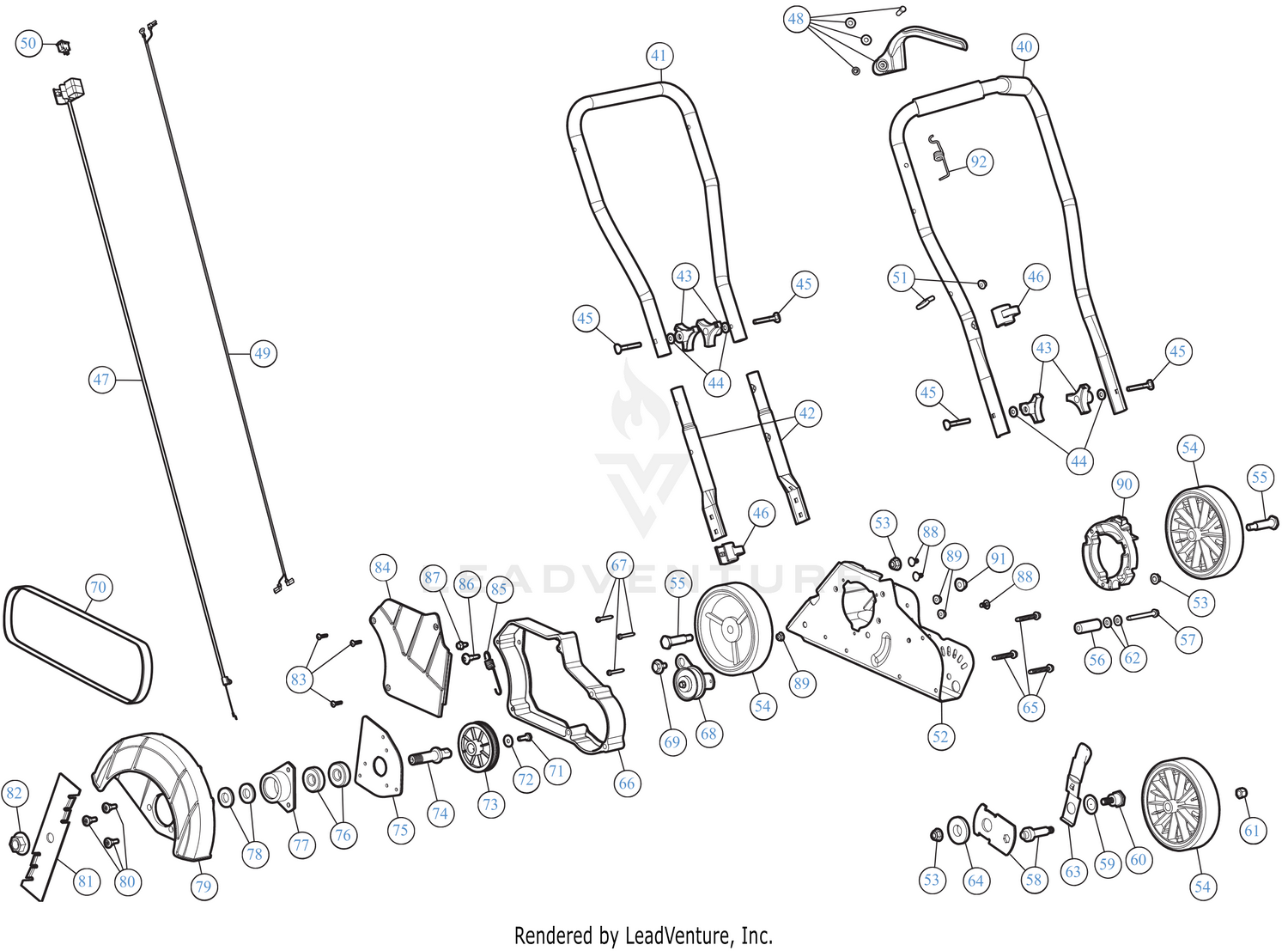

General Assembly
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 40 | 753-06542 | HANDLE UP Price: $25.15 |
| 41 | 753-06543 | HANDLE MID Price: $19.36 |
| 42 | 753-06544 | HANDLE EXT Price: $6.10 |
| 43 | 791-182677 | KNOB, 3-PRONG ¼ "- Price: $12.48 |
| 44 | 4150 | WASH, FLAT SPECIAL Price: $2.63 |
| 45 | 791-182899 | BOLT, CARRIAGE CRV Price: $6.82 |
| 47 | 753-06546 | THROTTLE CABLE Price: $8.76 |
| 48 | 753-10504 | THROTTLE LEVER Price: $5.44 |
| 49 | 9681 | WIRE LEAD Price: $6.17 |
| 50 | 791-182405 | SW, MOMENTARY ON/O Price: $9.29 |
| 51 | 753-05524 | ROPE GUIDE Price: $6.01 |
| 52 | 753-06593 | EDGER FRAME Price: $38.10 |
| 53 | 712-04065 | NUT Price: $3.68 |
| 54 | 734-04261 | WHEEL 5-1.5 GRAY Price: $18.51 |
| 55 | 938-0373 | SHOULDER SCREW Price: $8.45 |
| 56 | 750-04783 | SPACER Price: $3.36 |
| 57 | 710-1206 | SCREW 1/4-20 x 2.375 Price: $6.20 |
| 58 | 687-02582S | PIVOT ARM Price: $3.43 |
| 59 | 736-0741 | BELL WASHER Price: $3.99 |
| 60 | 738-1172 | SHOULDER SCREW .75 X.50 X3/8-16 Price: $5.01 |
| 61 | 712-0130 | HEX NUT INS L-3/8-16 Price: $3.61 |
| 62 | 750-04929 | SPACER Price: $3.88 |
| 63 | 687-02051 | Lever Ass'y This part replaces 987-02051. Price: $8.27 |
| 64 | 741-04242 | HEIGHT ADJUSTMENT BEARING Price: $6.57 |
| 65 | 710-1026 | SCREW 1/4-20 x 1.750 Price: $5.94 |
| 66 | 753-06556 | SPACER Price: $2.83 |
| 67 | 753-06559 | SCREW 8-16X1.25 Price: $2.32 |
| 68 | 753-05540 | IDLER PULLEY ASSEMBLY Price: $33.52 |
| 69 | 738-0930 | SHOULDER SCREW .560X.165: 5/16-18 Price: $6.07 |
| 70 | 754-04149 | BELT Price: $26.86 |
| 71 | 710-3015 | SCREW 1/4-20X.75 GR5 Price: $3.65 |
| 72 | 736-0270 | SPRING WASHER BELL Price: $3.63 |
| 73 | 756-04087B | PULLEY Price: $11.10 |
| 74 | 753-05543 | BLADE SPINDLE Price: $18.96 |
| 75 | 787-01505 | SPINDLE MOUNT PLATE Price: $6.17 |
| 76 | 741-04547 | BALL BEARING Price: $8.29 |
| 77 | 718-04012 | BEARING CUP Price: $19.55 |
| 78 | 736-04088 | FLAT WASHER .635 x 1.24 x .181 Price: $3.90 |
| 79 | 731P05064 | EDGER BLADE GUARD (W/LABEL) Price: $23.87 |
| 80 | 738-0706D | SHOULDER SCREW .375X.280:1/4-14 Price: $3.89 |
| 81 | 781-0080-0637 | EDGER BLADE Price: $7.95 |
| 82 | 712-0417A | HEX NUT Price: $6.50 |
| 83 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 84 | 731-05822 | BELT COVER Price: $9.85 |
| 85 | 753-06562 | SPRING Price: $2.83 |
| 86 | 753-06563 | BOLT 1/4-20 Price: $2.32 |
| 87 | 710-0599 | SCREW 1/4-20 X.500 Price: $3.86 |
| 88 | 710-05177 | CARRIAGE BOLT 1/4-20X.50" Price: $4.26 |
| 89 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 90 | 753-06566 | SPACER Price: $5.34 |
| 91 | 712-04230 | NUT Price: $3.24 |
