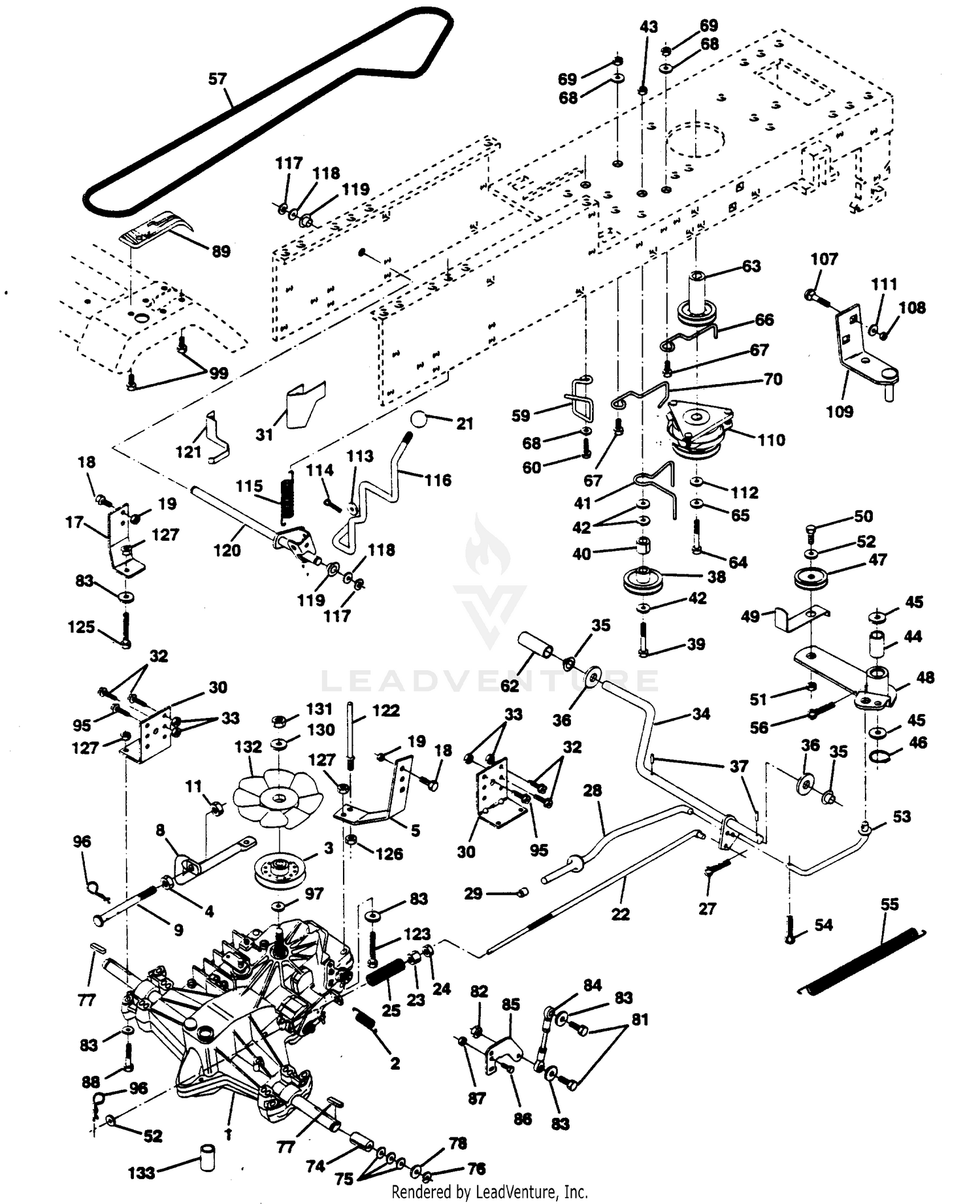

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
532140295 |
Transaxle Assembly (AYP part number) Price: $1,099.99 |
| 2 |
2410-30 |
CAP-PLASTIC Price: $0.83 |
| 2 |
532142431 |
Spring, Return, Brake (AYP part number) Price: $5.99 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 3 |
532143995 |
PULLEY, TRANSAXLE This part replaces 532140293. Price: $19.99 |
| 4 |
106-5363 |
SHAFT-ADJUSTER Price: $41.05 |
| 4 |
873220500 |
NUT This part replaces 873350500. Price: $3.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
532140157 |
Strap Torque Rh Hydro 18/20" T (AYP part number) Price: $2.42 |
| 6 |
114-9396 |
CAPSCREW-HH Price: $2.22 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
119-4164 |
WASHER-WAVE This part replaces 106-5335. Price: $2.73 |
| 8 |
532144832 |
CONTROL This part replaces 532141343. Price: $20.13 |
| 9 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 9 |
532144832 |
CONTROL This part replaces 532140550. Price: $20.13 |
| 10 |
137-6132 |
SCREW-ADJUSTER, BEDBAR This part replaces 99-2096. Price: $32.54 |
| 11 |
873800500 |
Nut Lock Hex W/Ins 5/16-18 Unc P (AYP part number) Price: $2.99 |
| 11 |
99-2098 |
WASHER Price: $7.01 |
| 12 |
119-4156 |
SPRING-COMPRESSION This part replaces 99-3755. Price: $0.91 |
| 13 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 15 |
105-8095-01 |
BEDBAR-FAIRWAY Price: $303.06 |
| 16 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
532140158 |
Strap Torque Lh Hydro 18/20" T (AYP part number) Price: $4.99 |
| 18 |
874780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 (AYP part number) Price: $3.99 |
| 19 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 21 |
532121274 |
Knob, Duckhead 1/2-13 (AYP part number) Price: $5.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
532145627 |
Rod, Brake Hydro (AYP part number) This part replaces 532140217. Price: $109.99 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 23 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 24 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 27 |
108-9090-01 |
WEIGHT-END Price: $100.71 |
| 27 |
876020412 |
Pin Cotter 1/8 x 3/4 CAD. (AYP part number) Price: $3.99 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 |
532145204 |
Rod Brake Parking LT/YT (AYP part number) This part replaces 532140448. Price: $3.12 |
| 29 |
532071673 |
Cap, Parking Brake (AYP part number) Price: $3.99 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 30 |
532130807 |
Bracket, Transaxle (AYP part number) Price: $3.99 |
| 31 |
532127275 |
Keeper Belt Lh (AYP part number) Price: $3.99 |
| 32 |
137-8416 |
REEL+,5IN FWY(22)8 BLD This part replaces 108-9071. Price: $701.38 |
| 32 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 33 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc (AYP part number) Price: $2.99 |
| 34 |
532122424 |
Shaft, Foot Pedal (AYP part number) Price: $21.56 |
| 35 |
532120183 |
Bearing, Nylon (AYP part number) Price: $2.99 |
| 36 |
819211616 |
Washer (AYP part number) Price: $3.99 |
| 37 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532124963. Price: $3.99 |
| 38 |
532123674 |
Pulley, Idler, Flat (AYP part number) Price: $17.99 |
| 39 |
874760644 |
Bolt (AYP part number) Price: $3.99 |
| 40 |
532124965 |
Spacer, Split (AYP part number) Price: $3.99 |
| 41 |
532109070 |
Keeper, Belt Retainer (AYP part number) Price: $3.99 |
| 42 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 43 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 44 |
532105706 |
Bearing, Nylon (AYP part number) Price: $3.99 |
| 45 |
532110812 |
Washer, Hardened (AYP part number) Price: $3.10 |
| 46 |
812000039 |
Ring, Klip (AYP part number) Price: $3.99 |
| 47 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532127783. Price: $22.99 |
| 48 |
532123789 |
Bellcrank Assembly (AYP part number) Price: $13.07 |
| 49 |
532123205 |
Retainer, Belt (AYP part number) Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 51 |
873680600 |
Nut Price: $1.99 |
| 52 |
819131316 |
Washer (AYP part number) Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 54 |
876020412 |
Pin (AYP part number) Price: $3.99 |
| 55 |
532105709 |
Spring, Return, Clutch (AYP part number) Price: $7.99 |
| 56 |
876020412 |
Pin (AYP part number) Price: $3.99 |
| 57 |
532140294 |
V-Belt, Ground Drive (AYP part number) Price: $27.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER This part replaces 532140312. Price: $14.99 |
| 60 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 62 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 63 |
532140189 |
Pulley, Engine (AYP part number) Price: $29.99 |
| 64 |
501606501 |
Speed Clip This part replaces 871170768. Price: $1.99 |
| 65 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 66 |
532105730 |
Keeper Belt Engine (AYP part number) Price: $2.99 |
| 67 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 68 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 69 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 70 |
532121218 |
Keeper Belt Engine (AYP part number) Price: $2.86 |
| 74 |
532121199 |
Spacer, Split (AYP part number) Price: $3.12 |
| 75 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Gauge (AYP part number) Price: $1.99 |
| 76 |
812000001 |
E-Ring (AYP part number) Price: $2.99 |
| 77 |
532123583 |
Key, Square (AYP part number) Price: $2.99 |
| 78 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Gauge (AYP part number) Price: $1.99 |
| 81 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD This part replaces 874780520. Price: $2.99 |
| 82 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P (AYP part number) Price: $2.99 |
| 83 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.99 |
| 84 |
532141392 |
Rod, Tie Hydro 18" Tires (AYP part number) Price: $74.99 |
| 85 |
532140156 |
Arm, Control Hydro (AYP part number) Price: $3.99 |
| 86 |
871070516 |
Screw Cap Hex 5/16 x 18 x 1 (AYP part number) Price: $2.99 |
| 87 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P (AYP part number) Price: $2.99 |
| 88 |
874780544 |
Bolt Fin Hex 5/16-18 Unc (AYP part number) Price: $3.99 |
| 89 |
532153764 |
CONSOLE This part replaces 532139988. Price: $12.99 |
| 95 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 97 |
819211616 |
Washer 21/32 x 1 x 16 Ga. (AYP part number) Price: $3.99 |
| 99 |
532142432 |
Screw (AYP part number) Price: $3.99 |
| 107 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 108 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 109 |
532137141 |
Bracket, Asm Mtg Clutch (AYP part number) Price: $3.99 |
| 110 |
532137140 |
Clutch, Electric (AYP part number) Price: $279.99 |
| 111 |
819111012 |
Washer 11/32 x 5/8 x 12 Ga. (AYP part number) Price: $3.99 |
| 112 |
532126197 |
Washer 1-1/2 OD x 15/32 ID x .250 (AYP part number) Price: $4.99 |
| 113 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 114 |
876020416 |
Pin Cotter 1/8 x 1 CAD (AYP part number) Price: $3.99 |
| 115 |
532123782 |
Spring Torsion T/A (AYP part number) Price: $2.99 |
| 116 |
532141003 |
Rod Shift Fender YT (AYP part number) Price: $10.40 |
| 117 |
812000008 |
Ring Klip #5304-62 (AYP part number) Price: $3.99 |
| 118 |
819212016 |
Washer 21/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $3.99 |
| 119 |
532071208 |
Bushing Rod Steering 629/632 ID (AYP part number) Price: $3.99 |
| 120 |
532140154 |
Shaft Asm. Cross Hydro 20" Tires (AYP part number) Price: $22.99 |
| 121 |
532140470 |
Keeper Belt Lh Hydro 0750. 18/20" (AYP part number) Price: $6.99 |
| 122 |
532140469 |
Keeper Belt Rh Hydro 0750. 18/20" (AYP part number) Price: $2.99 |
| 123 |
874780536 |
Bolt Fin Hex 5/16-18 x 2-1/4 (AYP part number) Price: $2.99 |
| 125 |
539976935 |
CAPSCREW 5/16 X 1/1/2 HEX HEAD This part replaces 874780524. Price: $1.99 |
| 126 |
873510600 |
Nut Keps Hex 3/8-16 Unc (AYP part number) Price: $3.99 |
| 127 |
873800500 |
Nut Lock Hex W/Ins 5/16-18 Unc P (AYP part number) Price: $2.99 |
| 130 |
532141322 |
Washer Belleville .501D x 1.50D (AYP part number) Price: $2.99 |
| 131 |
532050831 |
Nut Nylon Insert 1/2-20 Unf. (AYP part number) Price: $2.99 |
| 132 |
532140462 |
Fan, Hydro 7" (AYP part number) Price: $7.99 |
