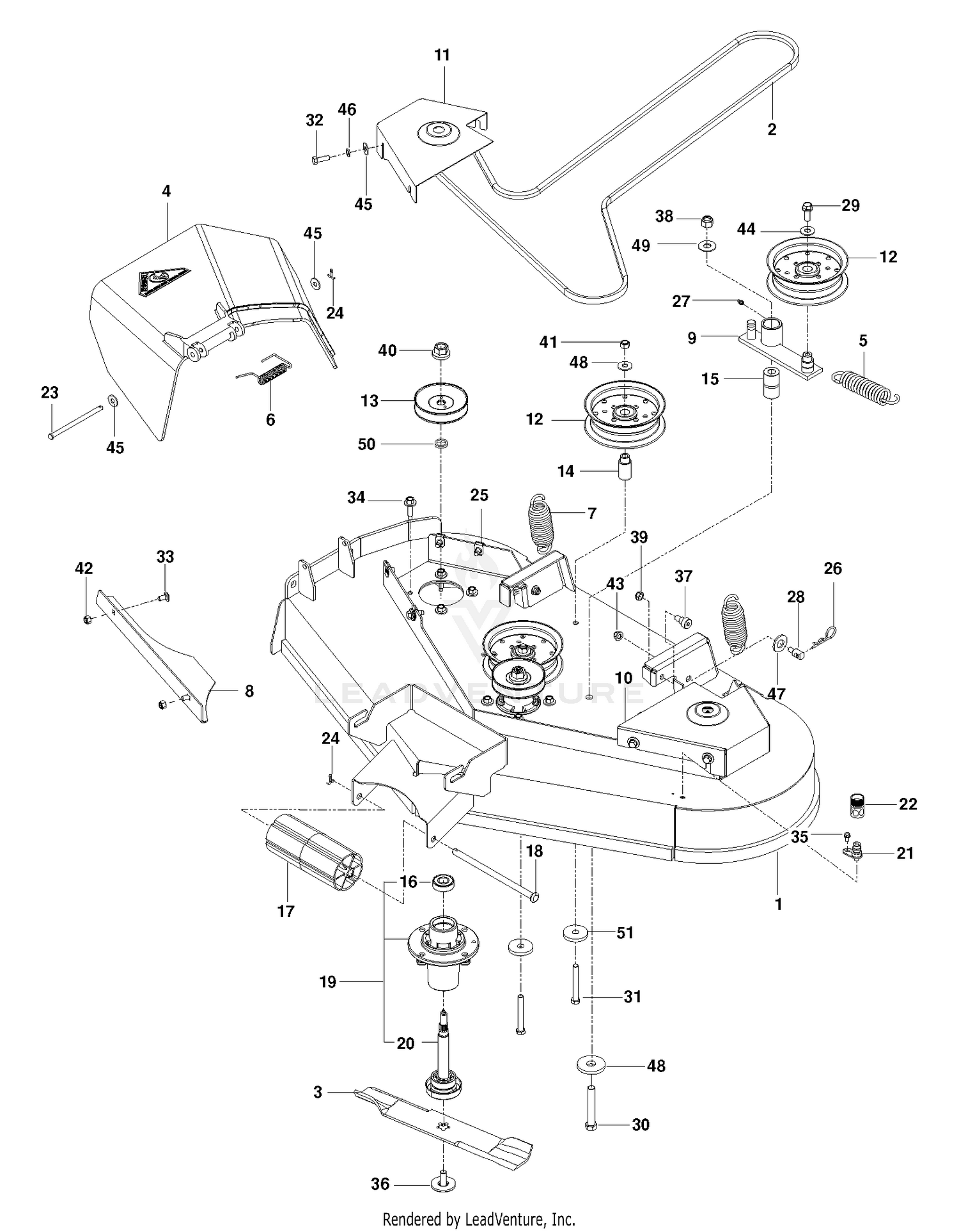

| Ref | Part Number | Description |
|---|
| 1 |
83-1050 |
SPACER Price: $3.26 |
| 2 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 2 |
539117245 |
V-BELT Price: $54.99 |
| 3 |
539112078 |
BLADE, 14 5/8" Price: $19.99 |
| 3 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 4 |
539110731 |
DISCHARGE CHUTE 42" Price: $49.99 |
| 4 |
98-4539-03 |
BRACKET-ENGINE MOUNT, LH Price: $179.96 |
| 5 |
539103256 |
SPRING Price: $9.99 |
| 5 |
98-4543-03 |
BRACKET-ENGINE MOUNT, RH Price: $180.69 |
| 6 |
596646001 |
Springs This part replaces 539110735. Price: $3.99 |
| 6 |
98-9749 |
PLATE-THROTTLE Price: $29.11 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 8 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 8 |
539112413 |
CONFINEMENT.PLATE.42".BLACK Price: $27.99 |
| 9 |
539112198 |
IDLER ARM Price: $27.99 |
| 9 |
99-3441 |
HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 10 |
322-4 |
SCREW-HH Price: $0.35 |
| 10 |
539112240 |
BELT SHIELD, LEFT 42, ORG Price: $49.99 |
| 11 |
539112238 |
BELT SHIELD, RIGHT 42, ORG Price: $49.99 |
| 11 |
98-4513-03 |
BRACKET-ENGINE, REAR Price: $78.69 |
| 12 |
589766102 |
Pulleys This part replaces 539132728. Price: $27.99 |
| 12 |
93-0095-03 |
BRACKET-ENGINE, FRONT Price: $111.93 |
| 13 |
3213-2 |
SCREW-HH Price: $1.90 |
| 13 |
525348501 |
PULLEY, MADREL 3.70 OP Price: $7.99 |
| 14 |
596841501 |
Bushings This part replaces 539112169. Price: $7.99 |
| 15 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 15 |
98-9322 |
SCREW-HSH Price: $4.89 |
| 16 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 16 |
532110485 |
BEARING Price: $11.99 |
| 17 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 17 |
98-4598 |
CABLE-BATTERY, NEGATIVE Price: $69.78 |
| 18 |
115-8009 |
KIT-ENGINE DSL This part replaces 99-8981. Price: $12,424.95 |
| 18 |
594092501 |
Rods This part replaces 532179127. Price: $5.99 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
539112170 |
MANDREL.DECK.ASSEMBLY Price: $69.99 |
| 20 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 20 |
597023501 |
MANDRELS This part replaces 532187291. Price: $24.99 |
| 21 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 21 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 22 |
48-7890 |
NUT-HEX Price: $0.25 |
| 22 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 23 |
595935501 |
Pins This part replaces 539110736. Price: $2.99 |
| 23 |
98-4594 |
CLAMP-RETAINER Price: $15.98 |
| 24 |
32128-36 |
NUT-HF Price: $1.56 |
| 24 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 25 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 25 |
98-4515-03 |
BRACKET-REAR ENGINE, LH Price: $62.07 |
| 26 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 26 |
98-4514-03 |
BRACKET-REAR ENGINE, RH Price: $55.86 |
| 27 |
323-12 |
SCREW-HH Price: $1.14 |
| 27 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 28 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 28 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 29 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 29 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 30 |
3256-40 |
WASHER-FLAT Price: $2.10 |
| 30 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 31 |
43-0090 |
SCREW-HH Price: $8.05 |
| 31 |
596564405 |
Bolts This part replaces 874780648. Price: $2.99 |
| 32 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 32 |
596580801 |
Bolts This part replaces 874780516. Price: $2.99 |
| 33 |
323-10 |
SCREW-HH Price: $0.89 |
| 33 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 34 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 35 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 37 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 38 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 39 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 40 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 41 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 42 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 43 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 44 |
596433701 |
GSPW Washers This part replaces 819141614. Price: $2.99 |
| 45 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 46 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810030500. Price: $2.99 |
| 47 |
596320001 |
Washers This part replaces 819212113. Price: $2.99 |
| 48 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 49 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 50 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
