| Ref | Part Number | Description |
|---|
| 1 |
110-3297 |

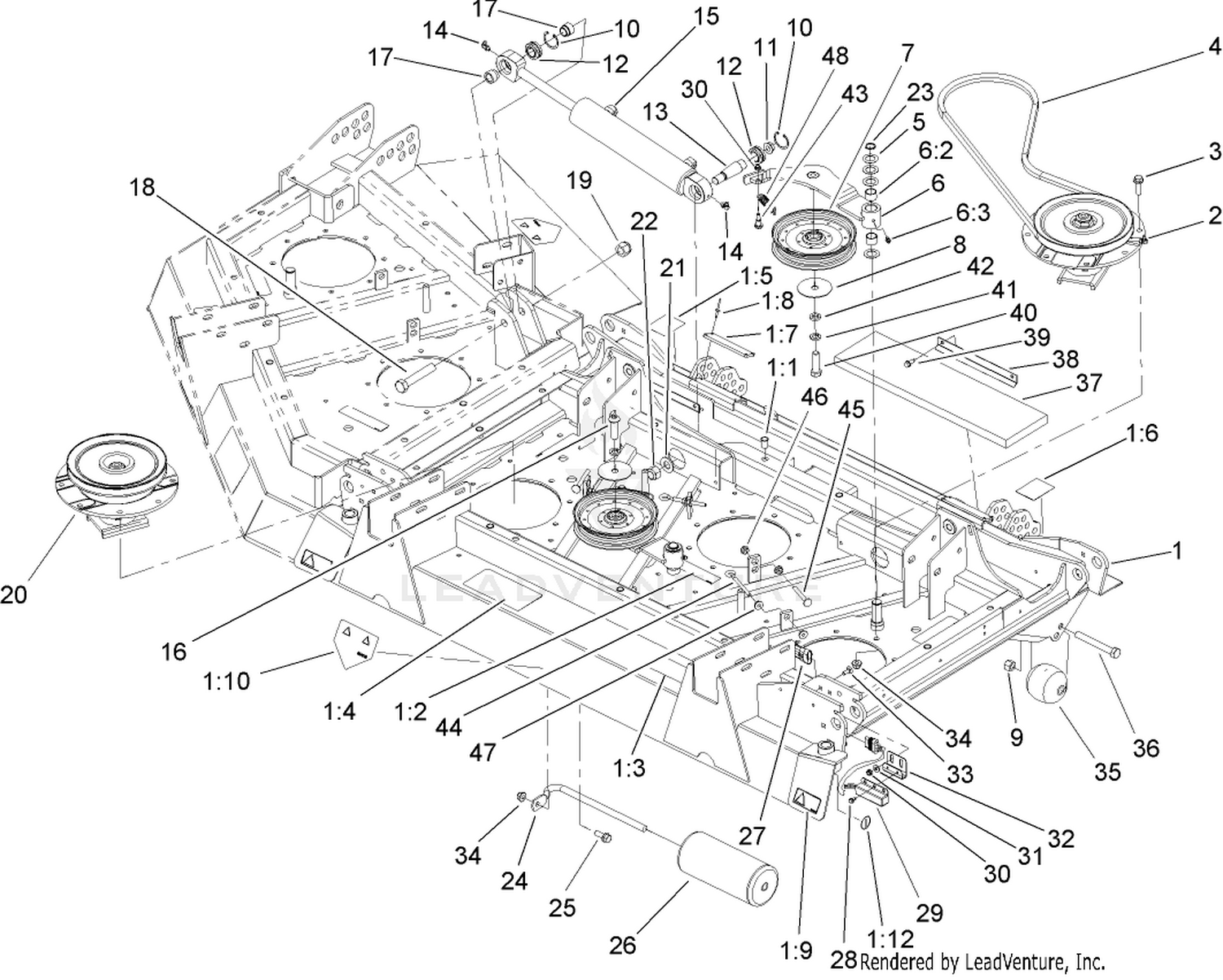

CENTER DECK ASM Price: $5,651.10 |
| 2 |
139-1039 |
LOW DRIVEN SPINDLE ASM This part replaces 104-3532. Price: $589.65 |
| 3 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 4 |
108-8077 |
V-BELT, DECK Price: $49.14 |
| 5 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 6 |
110-6128 |
IDLER ARM ASM Price: Call Us |
| 7 |
132-9421 |
PULLEY-IDLER, FLAT This part replaces 110-9596. Price: $41.10 |
| 8 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 9 |
3296-45 |
NUT-HEX Price: $3.79 |
| 10 |
32151-34 |
RING-RETAINING Price: $0.67 |
| 11 |
32128-42 |
NUT-HF Price: $0.98 |
| 12 |
105-7441 |
BEARING-SPHERICAL Price: $56.85 |
| 13 |
105-7468 |
STUD-TAPERED Price: $55.15 |
| 14 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 15 |
139-0957 |
HYD CYL ASM This part replaces 107-0190. Price: $1,026.78 |
| 16 |
108-1993 |
SCREW-HSBH Price: $3.66 |
| 17 |
105-7443 |
SPACER-PILOT Price: $31.94 |
| 18 |
327-14 |
SCREW-HH Price: $2.44 |
| 19 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 20 |
139-1038 |
HIGH DRIVEN SPINDLE ASM This part replaces 104-3531. Price: $691.39 |
| 21 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 22 |
3296-41 |
NUT-LOCK NI Price: $5.49 |
| 23 |
32120-72 |
RING-SNAP Price: $2.09 |
| 24 |
68-6840 |
SHAFT-ROLLER Price: $64.07 |
| 25 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 26 |
68-6710 |
ROLLER Price: $59.98 |
| 27 |
105-7473 |
HARNESS-WIRE, DECK Price: $164.28 |
| 28 |
104-2065 |
SCREW-HWH Price: $0.28 |
| 29 |
104-0758 |
SENSOR-FERROUS Price: $220.08 |
| 30 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 31 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 32 |
106-4264 |
BRACKET-SWITCH Price: $24.10 |
| 33 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 34 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 35 |
29-4820 |
ROLLER Price: $14.88 |
| 36 |
325-17 |
SCREW-HH Price: $2.90 |
| 37 |
106-7179 |
PAD-FOAM Price: $23.91 |
| 38 |
106-7227 |
SUPPORT-PAD Price: $14.02 |
| 39 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 40 |
325-7 |
SCREW-HH Price: $1.53 |
| 41 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 42 |
920242 |
WASHER-FLAT This part replaces 9202424. Price: $5.19 |
| 43 |
104-0858 |
BOLT-SHOULDER Price: $4.69 |
| 44 |
68-0090 |
SCREW-ADJUSTING Price: $7.49 |
| 45 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 46 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 47 |
32128-14 |
NUT-HF Price: $0.41 |
