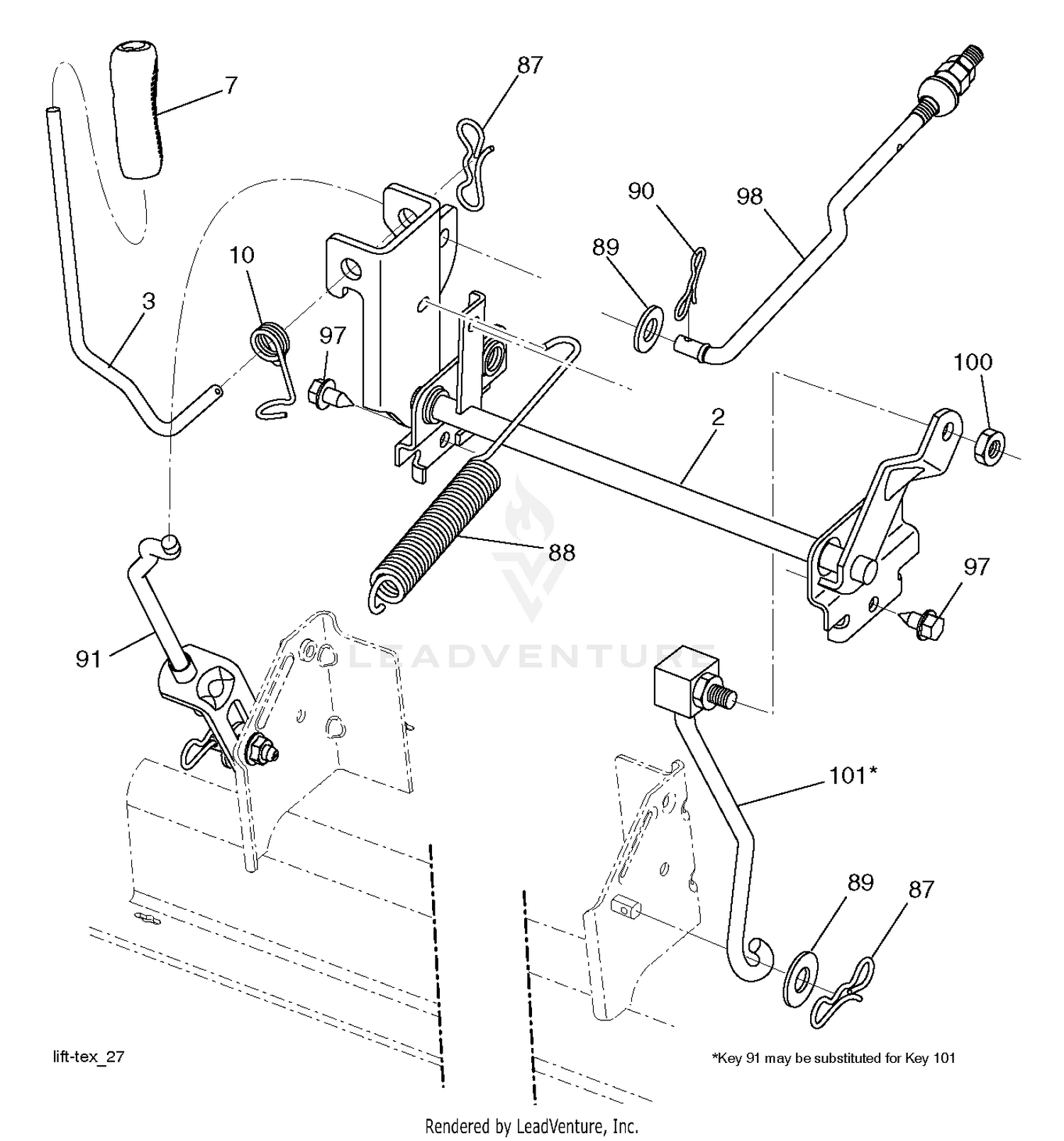

| Ref | Part Number | Description |
|---|
| 1 |
32128-39 |
NUT-HHF Price: $0.70 |
| 2 |
583515001 |
DECK.LIFT.WELDMENT This part replaces 532436996. Price: $49.99 |
| 3 |
104-1051-03 |
PLATE-SPINDLE Price: $59.54 |
| 3 |
594018001 |
Levers This part replaces 532195231. Price: $17.99 |
| 4 |
127-6389 |
DECK CHAMBER SERVICE ASM Price: $1,496.66 |
| 5 |
237-161 |
O-RING Price: $6.06 |
| 6 |
121-3666 |
SPINDLE ASM This part replaces 115-3435. Price: $391.32 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $7.99 |
| 8 |
107-0235-03 |
BLADE-ATOMIC Price: $40.07 |
| 8 |
108-9026 |
BLADE-27", COMBO This part replaces 108-9026-03. Price: $33.66 |
| 9 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 10 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 11 |
108-9025-0P |
BAFFLE-MULCHING This part replaces 108-9025-01. Price: $80.48 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
583514901 |
SPRING.LIFT.ASSIST.97.CRD This part replaces 532436995. Price: $9.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464807 |
Links This part replaces 532195181. Price: $14.99 |
| 97 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 98 |
581506903 |
Links This part replaces 532195270. Price: $9.99 |
| 100 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 101 |
532407003 |
LINK.ASM.LIFT.FIXE.38/42/46" Price: $11.99 |
