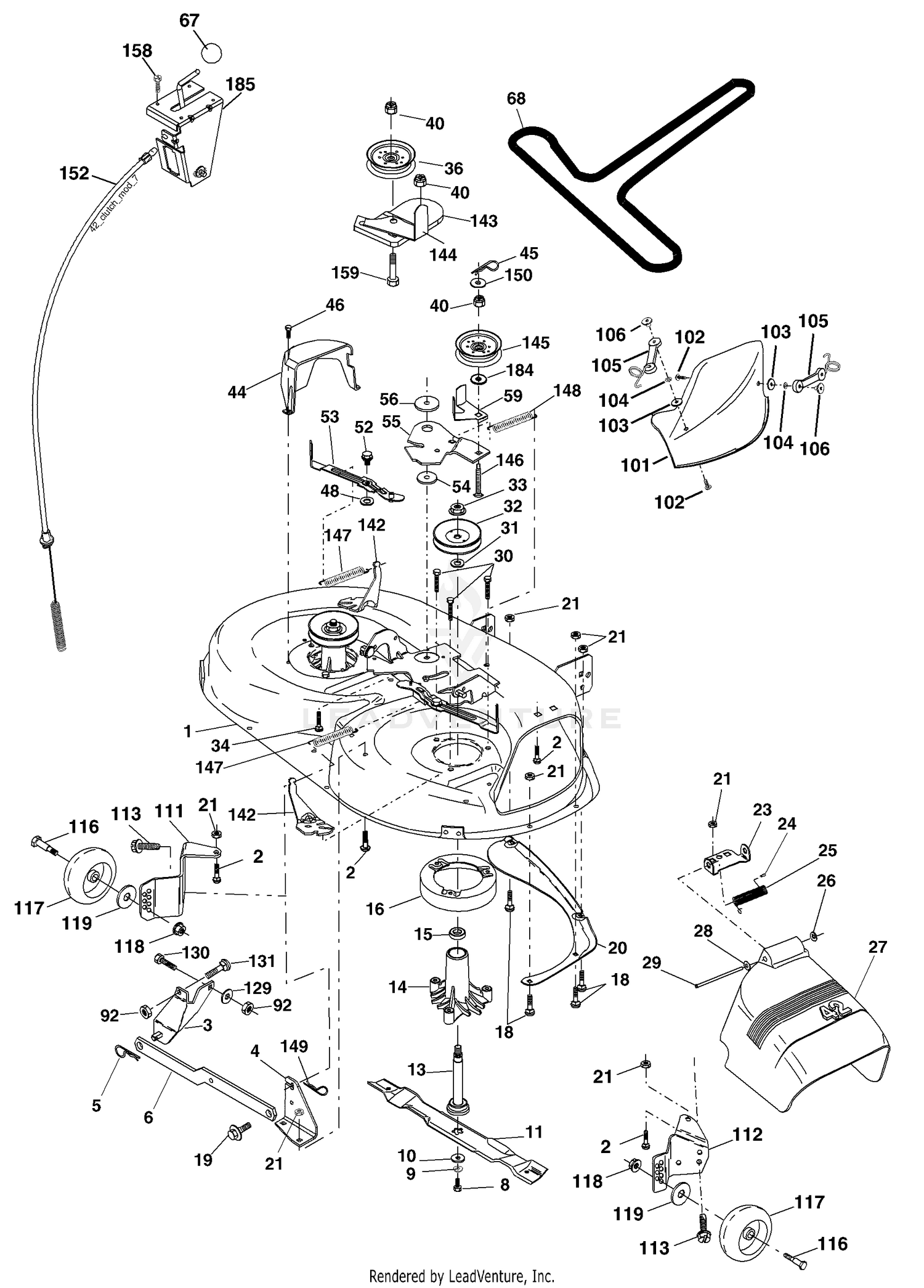

| Ref | Part Number | Description |
|---|
| 1 |
165892 |
Mower Deck Assembly, 42" Price: Call Us |
| 1 |
76-6930 |
SHAFT-DRIVE Price: $1,328.23 |
| 2 |
100-2551 |
BACKPLATE This part replaces 94-3000. Price: $842.23 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Assembly,Sway Bar, Front Price: Call Us |
| 3 |
94-3001 |
HOUSING ASM Price: $694.21 |
| 4 |
165460 |
Bracket Sway Bar 38/42" Deck Price: Call Us |
| 4 |
76-6910 |
ROTATING KIT Price: $2,143.15 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 7 |
94-3002 |
SCREW-CAP Price: $7.19 |
| 8 |
76-7020 |
SPACER Price: $23.61 |
| 8 |
850857 |
Bolt, Hex 3/8-24 x 1.25 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 11 |
76-6980 |
O-RING Price: $11.28 |
| 12 |
94-3003 |
PLATE-VALVE Price: $515.64 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Vented Mower Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Crownlock 5/16-18 Unc Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 40 |
73900600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, L.H. Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thd. Roll 1/4-20 x 5/8 Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 Unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard, TUV Idler Price: Call Us |
| 67 |
171598 |
Knob Price: Call Us |
| 68 |
144959 |
V-Belt Price: Call Us |
| 92 |
73800600 |
Nut Price: Call Us |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw Price: Call Us |
| 103 |
19061216 |
Washer #10 Price: Call Us |
| 104 |
10071000 |
Washer, Lock Price: Call Us |
| 105 |
160793 |
Latch Assembly, Bagger Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 111 |
179292 |
Bracket Gauge Wheel Lh Price: Call Us |
| 112 |
179293 |
Bracket Gauge Wheel Rh Price: Call Us |
| 113 |
17000510 |
Screw 5/16-18 Unc Price: Call Us |
| 116 |
4898H |
Bolt Shoulder Price: Call Us |
| 117 |
165746 |
Wheel Gauge Std Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 4 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt, Fin Hex 3/8-16 Unc x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt, Rdhd Sqnk 3/8-16 Unc x1 Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Zinc Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Cable Clutch 42 In Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 Unc x 3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm. Cable Clutch Price: Call Us |
