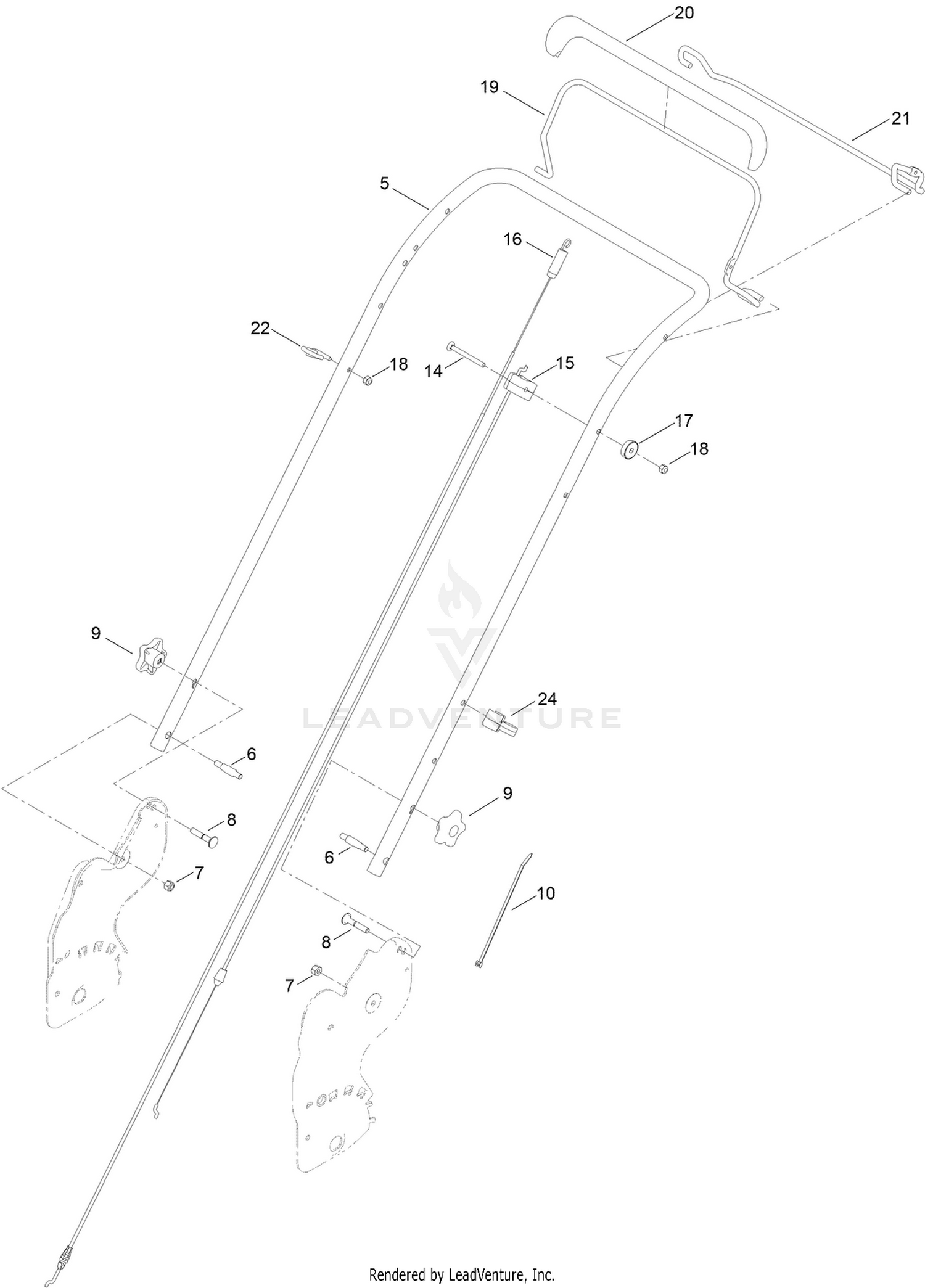

Handle Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 139-5458-05 | HANDLE-CURVED Price: $46.99 |
| 6 | 139-6599 | BOLT-SHOULDER, HANDLE Price: $1.39 |
| 7 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 8 | 131-9663 | SCREW-CARR Price: $0.89 |
| 9 | 117-5976 | KNOB-HANDLE Price: $2.49 |
| 10 | 614249 | TIE-CABLE Price: $0.79 |
| 14 | 144-0221 | SCREW-CARR Price: $1.29 |
| 15 | 140-3948 | CABLE-BRAKE, FWD Price: $16.99 |
| 16 | 140-3947 | CABLE-TRACTION, FWD Price: $15.99 |
| 17 | 136-9075 | WASHER-CURVED Price: $0.99 |
| 18 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 19 | 140-3918-03 | BAIL-BRAKE Price: $11.99 |
| 20 | 140-3879 | COVER-BAIL Price: $4.19 |
| 21 | 140-4024-03 | BAIL-TRACTION Price: $9.99 |
| 22 | 86-9671 | GUIDE-ROPE Price: $3.99 |
