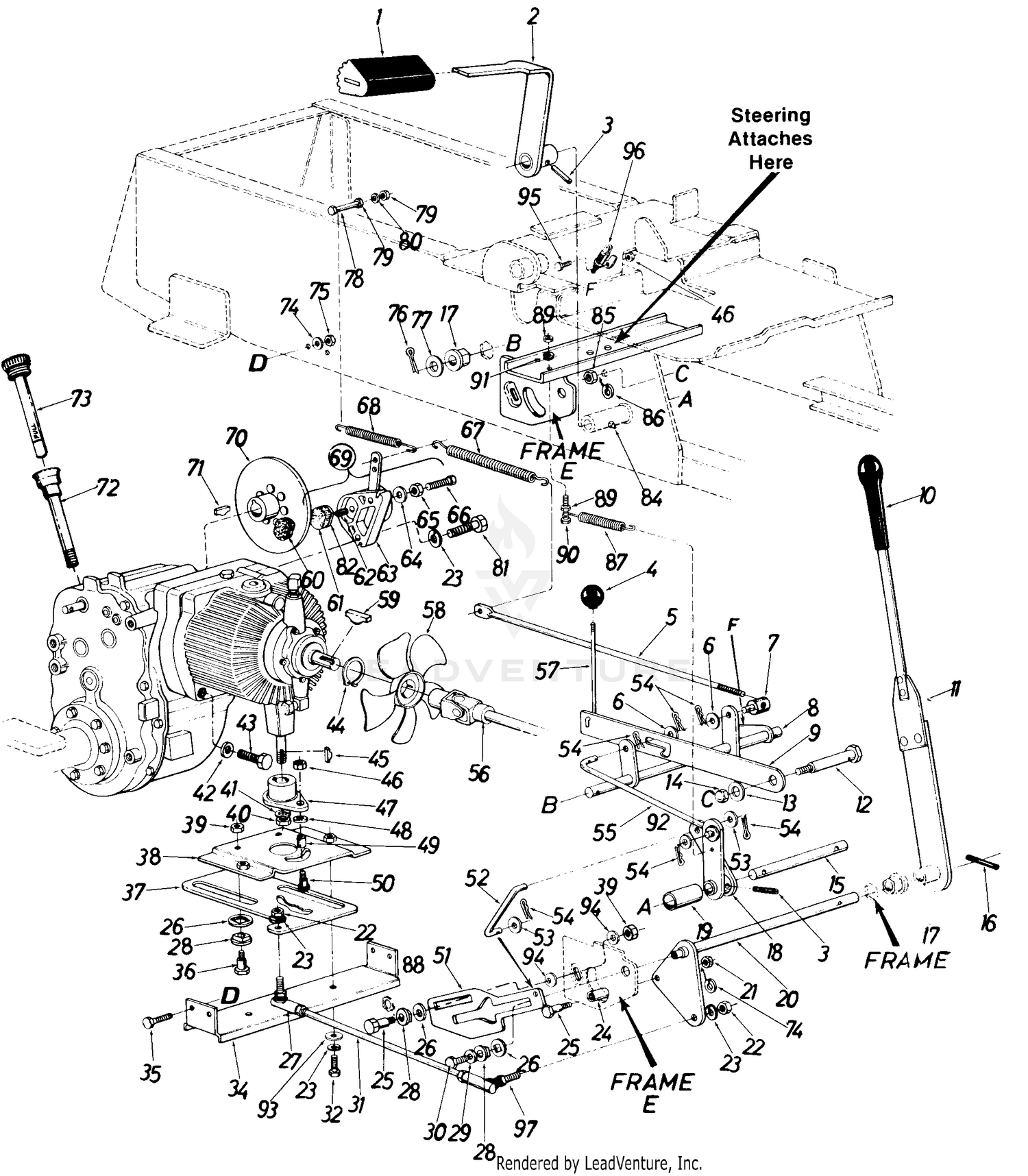

| Ref | Part Number | Description |
|---|
| 1 |
735-0189 |
FOOT PAD Not Available Price: |
| 2 |
13080 |
FOOT PEDAL BRKT. ASS'Y. R.H. Not Available Price: |
| 3 |
715-0114 |
Spring Pin Spiral 1/4" Dia. x 1.50" Lg. Price: $8.68 |
| 4 |
720-0166 |
THROTTLE KNOB Not Available Price: |
| 5 |
747-0283 |
BRAKE ROD Not Available Price: |
| 6 |
936-0101 |
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" Not Available This part replaces 736-0101. Price: |
| 7 |
911-0198 |
Ferrule This part replaces 711-0198. Price: $12.05 |
| 8 |
13548 |
Brake Transfer Shaft Ass'y. Price: Call Us |
| 9 |
13523 |
Parking Brake Cam Price: Call Us |
| 10 |
720-0143 |
GRIP Not Available Price: |
| 11 |
13787 |
Control Arm Ass'y. Comp. Price: Call Us |
| 12 |
738-0186 |
SHOULDER SCREW Not Available Price: |
| 13 |
736-0187 |
Fl-Wash. .460 I.D. x 1.24 O.D. x .06 Price: $4.02 |
| 14 |
712-0222 |
Push Speed Nut for .625 Dia. Shaft Price: Call Us |
| 15 |
738-0402 |
BRAKE SHAFT PIVOT Not Available Price: |
| 16 |
715-0114 |
Spring Pin Spiral 1/4" Dia. x 1.50" Lg.* Price: $8.68 |
| 17 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 18 |
13505 |
BRAKE HUB ASS'Y. Not Available Price: |
| 19 |
750-0181 |
SPACER Not Available Price: |
| 20 |
13565 |
HANDLE ASSEMBLY Not Available Price: |
| 21 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 22 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 23 |
736-0169 |
L-Wash. 3/8" Scr. Price: $3.33 |
| 24 |
748-0270 |
SPACER Not Available Price: |
| 25 |
738-0138A |
SHOULDER SCREW 5/16-18 x .62 GR2 This part replaces 738-0138. Price: $5.81 |
| 26 |
736-0303 |
Fl-Wash. .63 Sq. Hole x 1.25" O.D. Price: Call Us |
| 27 |
923-0351 |
JOINT ASSEMBLY-BALL (LH) THREAD Not Available This part replaces 723-0351. Price: |
| 28 |
748-0180 |
SLIDE-PIVOT Not Available Price: |
| 29 |
736-0159 |
Fl-Wash. .312 I.D. x .88 O.D. Price: $3.71 |
| 30 |
710-0643 |
Hex Ins. Scr. 5/16-18 x 1.00" Lg. Price: $5.99 |
| 31 |
747-0365 |
CONTROL ROD Not Available Price: |
| 32 |
710-0216 |
Hex Scr. 3/8-16 x .75" Lg. Price: $3.93 |
| 34 |
13562 |
CHANNEL-SU Not Available Price: |
| 35 |
710-0118 |
Hex Scr. 5/16-18 x .75" Lg. Price: $3.76 |
| 36 |
938-0141 |
SHOULDER SCREW .437 DIA x .350 Not Available This part replaces 738-0141. Price: |
| 37 |
13555 |
PLATE-CAM Not Available Price: |
| 38 |
13557 |
SLIDE MTG. PLATE ASS'Y. Not Available Price: |
| 39 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 40 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 41 |
736-0921 |
L-Wash. 1/2" Scr.* Price: $3.90 |
| 42 |
736-0300 |
Fl-Wash. .385 I.D. x .87 O.D. x .060 Price: $3.93 |
| 43 |
710-0492 |
SCREW 3/8-16 x 2.75 Not Available Price: |
| 44 |
71G-0123 |
Snap Ring Price: Call Us |
| 45 |
714-0131 |
KEY-HI-PRO #5-1/8X5/8 DIA Not Available Price: |
| 46 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 47 |
13559 |
PLATE ASSEMBLY Not Available Price: |
| 48 |
736-0142 |
Fl-Wash. .281 I.D. x .50 O.D. Price: $3.95 |
| 49 |
741-0154 |
NEEDLE BEARING Not Available Price: |
| 51 |
13556 |
NEUTRAL CONTROL SLIDE Not Available Price: |
| 52 |
747-0287 |
Neutral Control Rod Price: Call Us |
| 53 |
736-0264 |
Fl-Wash. .312 I.D. x .630 O.D. x .063 Price: $5.99 |
| 54 |
714-0104 |
Hairpin Cotter Price: $3.90 |
| 55 |
13702 |
ROD ASSEMBLY-B Not Available Price: |
| 56 |
717-0402 |
UNIVERSAL JOINT Not Available Price: |
| 57 |
747-0282 |
LINK-PARKING BRAKE Not Available Price: |
| 58 |
931-0317 |
FAN Not Available This part replaces 731-0317. Price: |
| 60 |
761-04060 |
Lining - Brake This part replaces HU-24-13772. Price: $28.36 |
| 61 |
761-04060 |
Lining - Brake This part replaces HU-24-13772. Price: $28.36 |
| 62 |
HU-39-13774 |
PIN-ACTUAT Not Available Price: |
| 63 |
HU-39-14232 |
Housing with Lever and Pin Price: Call Us |
| 64 |
HU-20-9764 |
Washer Price: Call Us |
| 65 |
912-0240 |
Hex Jam Nut 7/16-20 This part replaces HU-37-13818. Price: $3.90 |
| 66 |
HU-A611030003 |
PIN-ADJ Not Available This part replaces HU-39-13775. Price: |
| 67 |
932-0260 |
Extension Spring .50" O.D. x 6.5" Lg. This part replaces 732-0260. Price: $18.25 |
| 69 |
761-0170 |
DISC BRAKE ASS'Y. COMP. Not Available Price: |
| 70 |
761-0142 |
BRAKE DISC ASSEMBLY Not Available Price: |
| 71 |
714-0137 |
KEY-HI-PRO-3/16 x 3/4 DIA 1.0 Not Available Price: |
| 72 |
751-0239 |
DIPSTICK TUBE ASS'Y. Not Available Price: |
| 73 |
951-0240 |
DIPSTICK ASSEMBLY Not Available This part replaces 751-0240. Price: |
| 74 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 75 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 76 |
714-0115 |
Cotter Pin 1/8" Dia. x 1.00" Lg. * Price: $3.48 |
| 77 |
736-0162 |
Fl-Wash. .635" I.D. x 1.00 O.D. x .120 Thk. Price: $3.86 |
| 78 |
710-1122 |
Hex Screw, 1/4-20 x 2.50 This part replaces 710-0102. Price: $6.32 |
| 79 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 80 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 81 |
710-3005 |
Hex Bolt 3/8-16 x 1.25" Lg. This part replaces 710-0342. Price: $3.61 |
| 82 |
HU-25-13808 |
PLATE-BACKI Not Available Price: |
| 84 |
737-0146 |
Grease Fitting Price: $4.46 |
| 85 |
912-0240 |
Hex Jam Nut 7/16-20 This part replaces 712-0240. Price: $3.90 |
| 86 |
736-0171 |
L-Wash. 7/16" Scr. Price: $3.86 |
| 87 |
932-0121 |
Extension Spring .73" O.D. x 4.31 0 Lg. This part replaces 732-0121. Price: $13.21 |
| 88 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 89 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 90 |
710-0106 |
Hex Scr. 1/4-20 x 1.25" Lg. Price: $3.66 |
| 91 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 92 |
936-0101 |
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" Not Available This part replaces 736-0101. Price: |
| 93 |
936-0427 |
BELL WASHER Not Available This part replaces 736-0427. Price: |
| 94 |
736-0242 |
Bell-Wash. Price: $3.75 |
| 95 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
