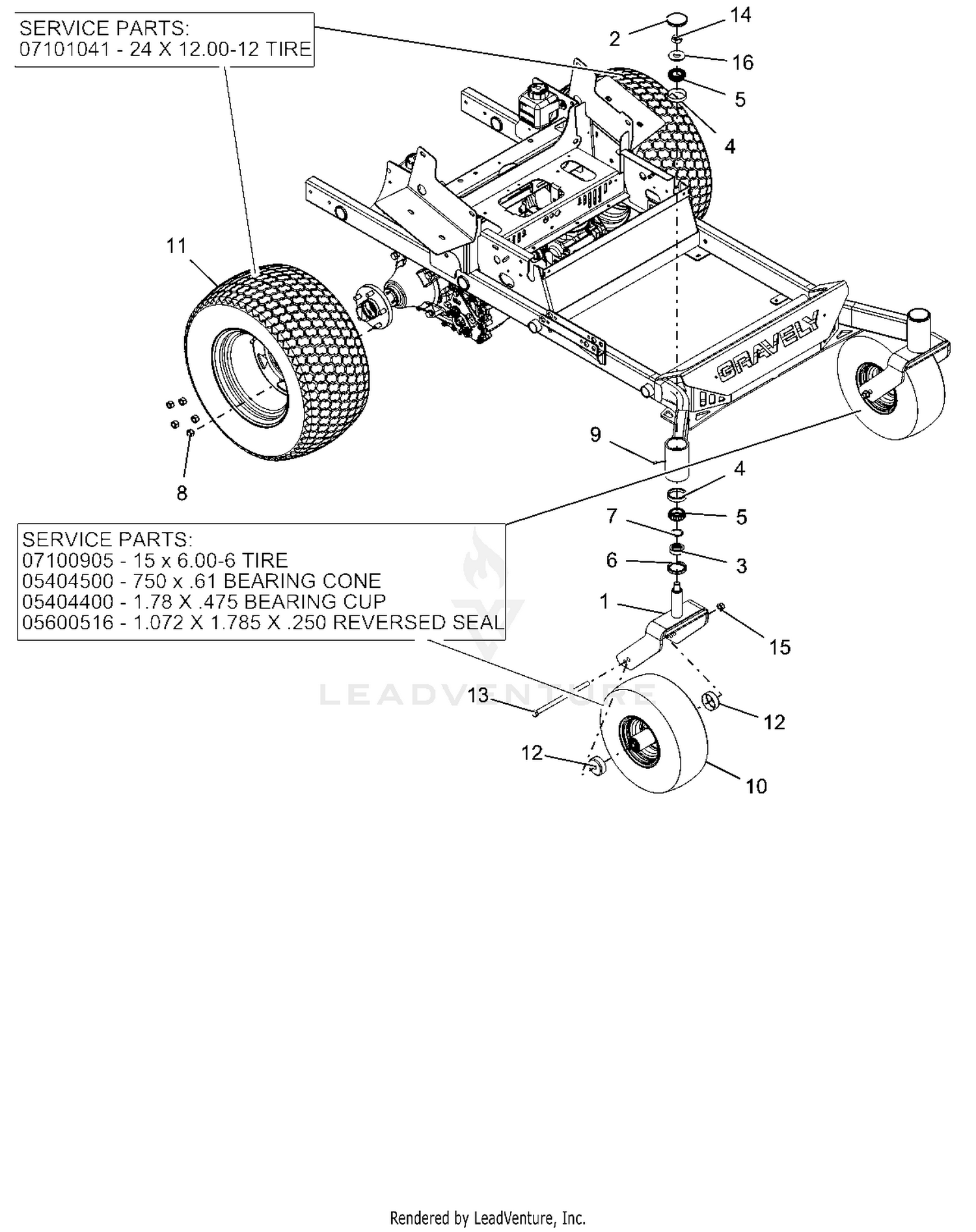

| Ref | Part Number | Description |
|---|
| 1 |
03924453 |
CASTER FORK WMT - RED Price: $142.95 |
| 2 |
03925900 |
CAP, DUST Price: $10.45 |
| 3 |
04861500 |
SPCR, FRONT CASTER FORK This part replaces 04718600. Price: $12.45 |
| 4 |
05404600 |
BRG-CUP 2.328X.465 Price: $13.45 |
| 5 |
05404700 |
BRG-CONE 1.25X.66 Price: $19.95 |
| 6 |
05600432 |
SEAL, OIL 1.75 X 2.332 X .312 Price: $10.95 |
| 7 |
05600515 |
O-RING, Price: $2.45 |
| 8 |
06500926 |
NUT- WHEEL .50-20 ZCC This part replaces 06517600. Price: $1.45 |
| 9 |
07001727 |
FTG, .25-28 FLUSH MNT GREASE Price: $3.45 |
| 10 |
07101109 |
ASM, WHL/TIRE 15X6.00-6 SMOOTH Price: $112.45 |
| 11 |
07101119 |
ASM, WHL/TIRE 24X12.00-12 K500 Price: $263.95 |
| 12 |
09357800 |
SHIELD, WHEEL BEARING Price: $10.95 |
| 13 |
05901930 |
BLT, HEX .50-13X9.00 G5 ZCC This part replaces 05961200. Price: $9.95 |
| 14 |
06500933 |
NUT, JAM-TOPLOCK .750-16 ZCC This part replaces 06500721. Price: $3.95 |
| 15 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
