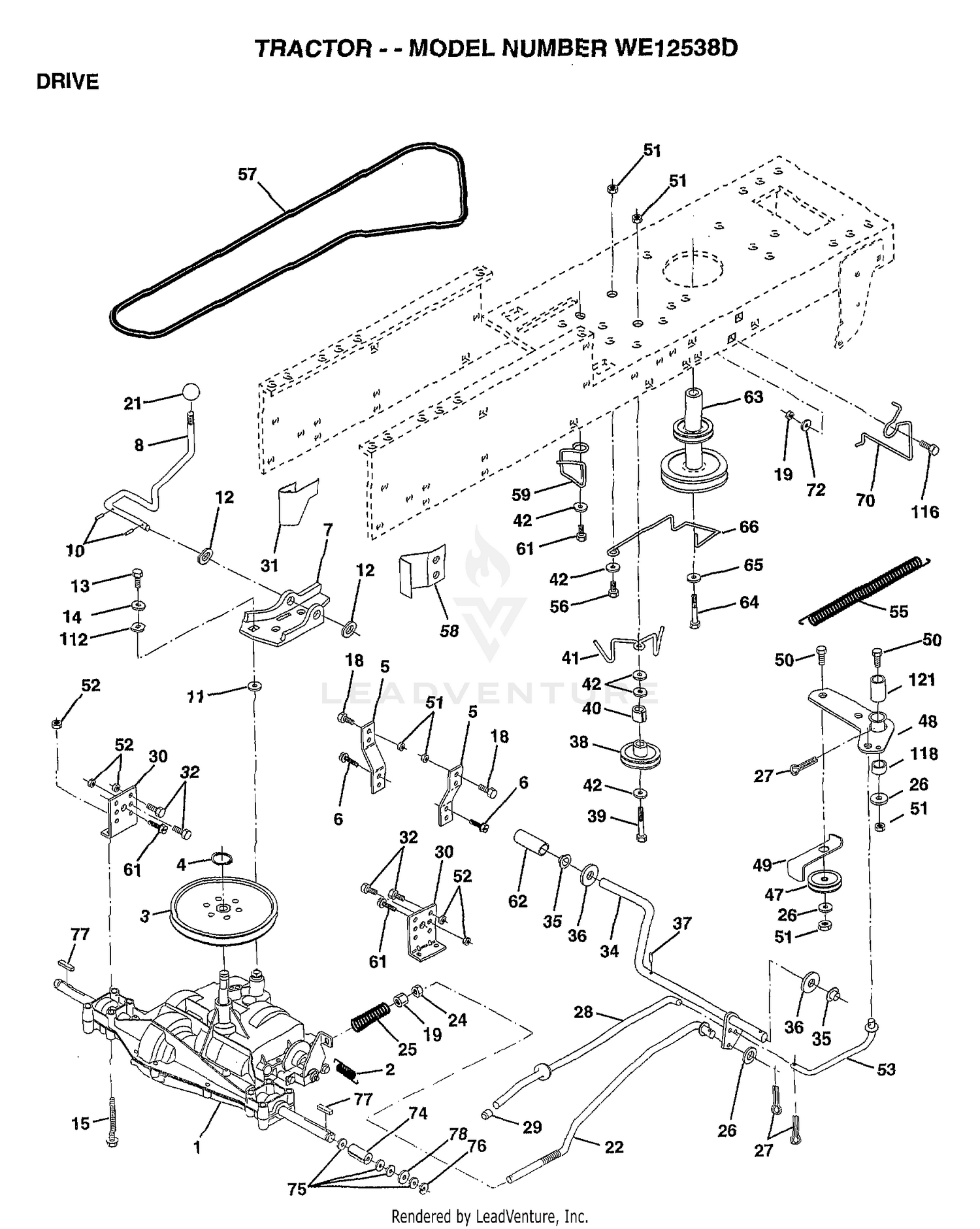

| Ref | Part Number | Description |
|---|
| 1 |
100-8635 |
FORK Price: $4.91 |
| 1 |
4360-78 |
TRANSAXLE DANA Price: Call Us |
| 2 |
106-4946 |
HOSEBARB-90 DEG This part replaces 100-8638. Price: $38.06 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 3 |
100-8637 |
O-RING Price: $2.22 |
| 3 |
123666X |
PULLEY TRANS Price: Call Us |
| 4 |
12000028 |
SUB= 2267J Price: Call Us |
| 4 |
41327 |
CLAMP-HOSE Price: $3.12 |
| 5 |
100-8483 |
HOSE-SUCTION Price: $41.42 |
| 5 |
121520X |
STRAP TORQUE Price: Call Us |
| 6 |
106-4952 |
HOSEBARB-90 DEG This part replaces 100-8639. Price: $44.41 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 7 |
100-6989 |
O-RING This part replaces 100-8640. Price: $20.64 |
| 7 |
130802 |
SUB= 162240 Price: Call Us |
| 8 |
100-8641 |
VANE-SCREEN Price: $32.05 |
| 8 |
131679 |
SHIFT ROD Price: Call Us |
| 9 |
100-8642 |
SCREEN-SUCTION Price: $64.17 |
| 10 |
100-8643 |
HOUSING-FILTER Price: $273.50 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
100-8644 |
PIN-EXPANSION Price: $5.43 |
| 11 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 12 |
106-4942 |
HOSEBARB-STRAIGHT This part replaces 100-8645. Price: $45.31 |
| 12 |
19151216 |
WASHER Price: Call Us |
| 13 |
104-9039 |
HOSE-TEE, AGITATION Price: $67.29 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 14 |
100-8636 |
FORK-SPECIAL Price: $32.67 |
| 14 |
10040400 |
LOCKWASHER Price: Call Us |
| 15 |
106-4945 |
ELBOW This part replaces 100-6720. Price: $28.54 |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 16 |
100-6708 |
FORK Price: $5.54 |
| 17 |
100-6712 |
O-RING Price: $9.34 |
| 18 |
100-6709 |
FITTING-BULKHEAD Price: $84.21 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 19 |
100-6723 |
TEE Price: $63.85 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
99-0766 |
NUT Price: $5.16 |
| 21 |
100-6705 |
NOZZLE-AGITATION Price: $21.07 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 22 |
100-6722 |
NIPPLE Price: $14.82 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 23 |
100-6721 |
ADAPTER Price: $39.80 |
| 24 |
100-6710 |
GASKET-BULKHEAD Price: $13.87 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
100-8678 |
NUT Price: $14.95 |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 26 |
100-6724 |
VALVE-RELIEF, SEAT Price: $32.38 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 27 |
100-6725 |
SPRING-RELIEF, VALVE Price: $47.58 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
100-6726 |
CONE-RELIEF, VALVE Price: $42.70 |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
100-6727 |
HOUSING-RELIEF, VALVE Price: $131.20 |
| 29 |
71673 |
PLUNGER CAP T Price: Call Us |
| 30 |
100-6652 |
GASKET Price: $7.99 |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 31 |
100-8646 |
GASKET-BULKHEAD Price: $21.04 |
| 32 |
100-8647 |
NUT-BULKHEAD Price: $26.36 |
| 32 |
74760512 |
BOLT Price: Call Us |
| 33 |
26392 |
CLAMP-HOSE Price: $11.20 |
| 34 |
100-8649 |
HOSE-SUCTION Price: $24.44 |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
107-8625 |
TUBE-SUCTION This part replaces 100-6990. Price: $43.53 |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
100-6714 |
FOOT-TUBE, SUCTION Price: $13.39 |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 37 |
99-0761 |
RINGNUT Price: $12.83 |
| 38 |
106-4944 |
FITTING-90 DEG This part replaces 100-6715. Price: $20.06 |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 39 |
99-0768 |
ELBOW-60 DEG Price: $58.01 |
| 40 |
100-6706 |
NOZZLE-AGITATION Price: $19.94 |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
100-6653 |
O-RING Price: $3.11 |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
100-6707 |
TEE Price: $113.03 |
| 42 |
19131312 |
WASHER Price: Call Us |
| 43 |
100-6713 |
NUT-BULKHEAD Price: $7.19 |
| 44 |
106-4940 |
HOSEBARB-90 DEG This part replaces 100-6711. Price: $42.11 |
| 45 |
2412-129 |
CLAMP-HOSE This part replaces 99-0755. Price: $2.10 |
| 46 |
100-6646 |
O-RING Price: $2.43 |
| 47 |
106-4949 |
HOSEBARB This part replaces 100-6716. Price: $44.24 |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 48 |
2412-3 |
CLAMP-HOSE This part replaces 99-0782. Price: $3.49 |
| 49 |
104-8710 |
HOSE Price: $118.59 |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
104-8704 |
HOSE Price: $72.73 |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
100-6717 |
HOSEBARB Price: $30.43 |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
100-8659 |
GASKET Price: $6.39 |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 53 |
100-8664 |
FITTING-BULKHEAD Price: $63.57 |
| 54 |
104-9041 |
TEE Price: $65.38 |
| 54 |
2751R |
CLIP T Price: Call Us |
| 55 |
104-8706 |
HOSE Price: $188.28 |
| 56 |
104-9044 |
HOSE-BYPASS, BOOM Price: $176.70 |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
106-4935 |
HOSEBARB ASM This part replaces 100-6816. Price: $35.72 |
| 57 |
130801 |
SUB= 138255 Price: Call Us |
| 58 |
104-9043 |
HOSE-AGITATION, REAR Price: $111.24 |
| 59 |
104-8908 |
HOSE-BYPASS Price: $31.61 |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 60 |
104-9045 |
O-RING Price: $14.31 |
| 61 |
104-9048 |
BULKHEAD-DRAIN TUBE Price: $135.76 |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
100-6658 |
GASKET Price: $9.96 |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 63 |
99-0758 |
NUT Price: $20.97 |
| 64 |
106-4899 |
TUBE-CONTROL, DRAIN This part replaces 100-8655. Price: $35.62 |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 65 |
112-7936 |
CONNECTOR-KIT (SERVICE) This part replaces 100-8657. Price: $102.63 |
| 66 |
100-8658 |
TUBE-HI FLEX Price: $64.66 |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 67 |
100-8656 |
PIN-EXPANSION Price: $7.67 |
| 68 |
100-8660 |
PIN-EXPANSION Price: $5.36 |
| 69 |
100-8661 |
PIN-EXPANSION Price: $4.34 |
| 70 |
112-7976 |
CONNECTOR-KIT (SERVICE) This part replaces 100-8662. Price: $93.50 |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 71 |
100-8663 |
PIN Price: $18.66 |
| 72 |
104-9046 |
BOLT Price: $0.47 |
| 72 |
19132012 |
WASHER Price: Call Us |
| 74 |
109502X |
SPACER LT Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 79 |
2228M |
SUB= 2228M1 Price: Call Us |
| 112 |
19091210 |
WASHER LT Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 118 |
154774 |
SPACER-BELLCRANK Price: Call Us |
