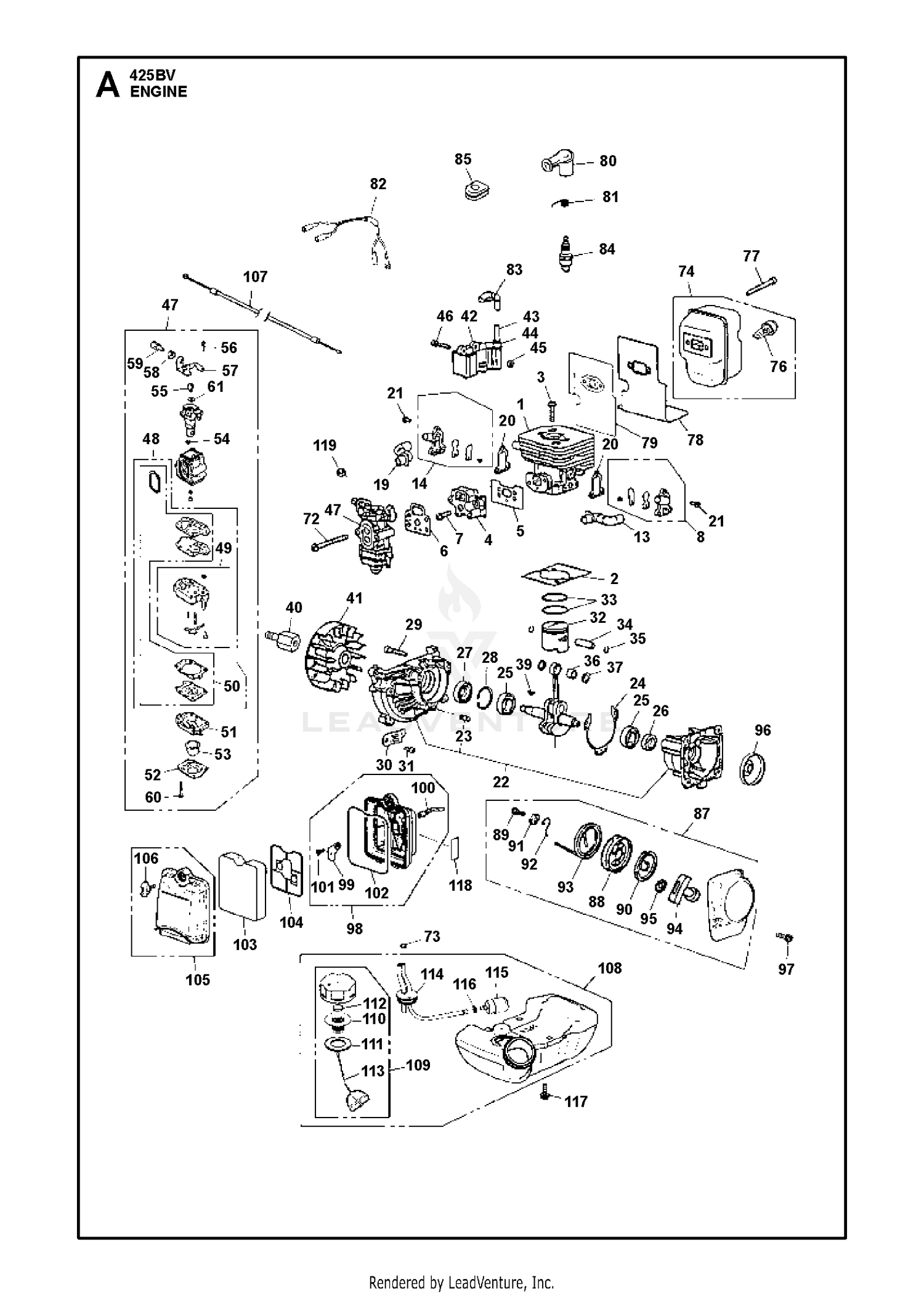

ENGINE
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 302-5 | FITTING-GREASE Price: $0.59 |
| 1 | 521611601 | CYLINDER Price: $49.99 |
| 2 | 521611701 | GASKET, BASE Price: $3.99 |
| 3 | 32152-10 | LOCKNUT Price: $0.81 |
| 3 | 506745201 | BOLT Price: $4.99 |
| 4 | 521611901 | INSULATOR Price: $14.99 |
| 4 | 84-1710 | PISTON - CYLINDER Price: $68.11 |
| 5 | 512319201 | GASKET.INSU Price: $3.99 |
| 6 | 511375801 | GASKET Price: $2.99 |
| 7 | 506689001 | BOLT TORX This part replaces 504114301. Price: $3.99 |
| 8 | 511375901 | REEDVALVE(S)-A Price: $9.99 |
| 10 | 98-7354 | LIFT CYL HEAD - 1-5/8 This part replaces 93-7993. Price: $143.81 |
| 12 | 84-1740 | DISCONTINUED Price: Call Us |
| 13 | 521612701 | PIPE AIR (S) Price: $5.99 |
| 13 | 93-7994 | COLLAR Price: $115.11 |
| 14 | 511376001 | REEDVALVE(F)-A Price: $12.99 |
| 19 | 521612801 | PIPE AIR (F) Price: $5.99 |
| 20 | 521612901 | GASKET, VALVE Price: $3.99 |
| 21 | 504119201 | BOLT Price: $1.99 |
| 22 | 515381601 | CRANKCASE-C Price: $17.99 |
| 24 | 515381801 | GASKET.CASE Price: $3.99 |
| 25 | 506610301 | BEARING This part replaces 523071701. Price: $9.99 |
| 26 | 504121501 | SEAL Price: $7.99 |
| 27 | 506612901 | SEAL Price: $3.99 |
| 28 | 506609901 | RING Price: $2.99 |
| 29 | 515388101 | BOLT Price: $2.99 |
| 30 | 515381901 | Price: Call Us |
| 31 | 504119601 | BOLT 08 Price: $2.99 |
| 32 | 511376101 | PISTON Price: $24.99 |
| 33 | 506618101 | RING Price: $9.99 |
| 34 | 521522601 | PIN (RPLS T151341310) Price: $4.99 |
| 35 | 505045201 | RING Price: $2.99 |
| 36 | 505040901 | BEARING This part replaces 521520701. Price: $5.99 |
| 37 | 505041001 | WASHER Price: $2.99 |
| 38 | 521613201 | CRANKSHAFT COMP(RPLS481042000) Price: $79.99 |
| 39 | 506689401 | KEY Price: $2.99 |
| 40 | 515426801 | EXTENSION. Price: $8.99 |
| 41 | 515384501 | ROTOR Price: $34.99 |
| 42 | 512321901 | COIL-A Price: $59.99 |
| 43 | 521750701 | CORD (BLACK) Price: $3.99 |
| 44 | 516744001 | RP_CAP This part replaces 505042801. Price: $2.99 |
| 45 | 504118601 | SPACER Price: $2.99 |
| 46 | 506745701 | BOLT Price: $2.99 |
| 47 | 511376201 | CARBURETOR-A Price: $59.99 |
| 72 | 515390701 | BOLT Price: $2.99 |
| 73 | 506741501 | CLIP Price: $2.99 |
| 74 | 528061001 | MUFFLER-A Price: $44.99 |
| 77 | 512846101 | BOLT Price: $2.99 |
| 78 | 511368401 | GASKET, MUFFLER Price: $11.99 |
| 79 | 511368501 | PLATE, MUFFLER Price: $12.99 |
| 80 | 512444001 | CAP Price: $5.99 |
| 81 | 505298901 | SPRING Price: $2.99 |
| 82 | 512322101 | CORD-C Price: $5.47 |
| 83 | 521750901 | TUBE Price: $1.99 |
| 84 | 506615101 | SPARK PLUG NGK CMR7H This part replaces 521233401. Price: $8.99 |
| 85 | 521358801 | RP GROMMET This part replaces 515415301. Price: $2.99 |
| 87 | 515385401 | RECOIL-A Price: $44.99 |
| 96 | 504114401 | PULLEY Price: $7.99 |
| 97 | 515391301 | BOLT Price: $2.99 |
| 98 | 512322702 | Price: Call Us |
| 103 | 504115301 | ELEMENT Price: $4.99 |
| 104 | 521607901 | SCREEN Price: $4.99 |
| 105 | 523071201 | COVER ASSY Price: $22.99 |
| 107 | 515427701 | CABLE Price: $4.99 |
| 108 | 528061501 | Price: Call Us |
| 117 | 515391301 | BOLT Price: $2.99 |
| 118 | 504155101 | LABEL, CHOKE Price: $2.99 |
