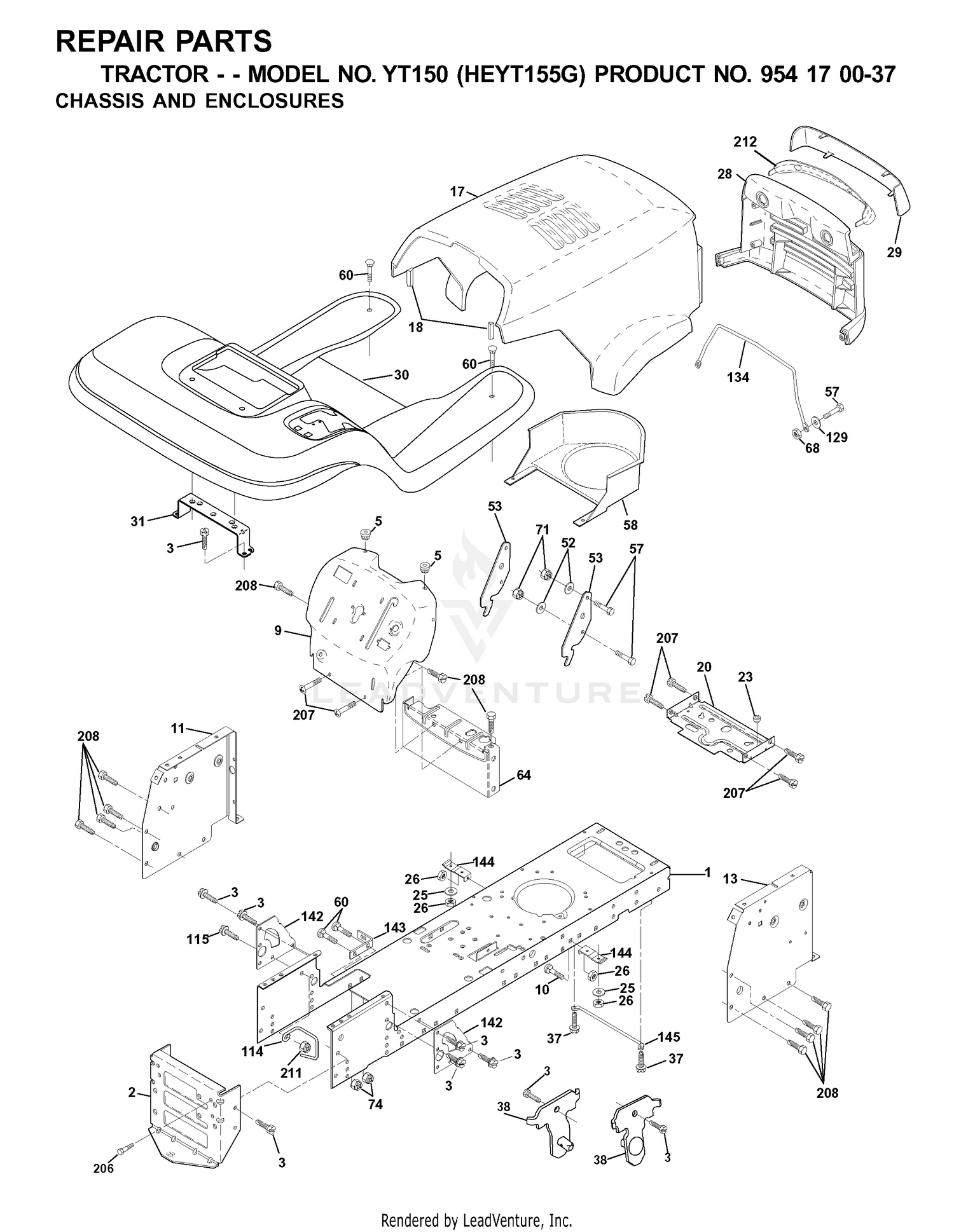

| Ref | Part Number | Description |
|---|
| 1 |
532169830 |
CHASSIS Price: $99.99 |
| 2 |
532176554 |
DRAWBAR, 12GA This part replaces 532169061. Price: $37.99 |
| 3 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 9 |
532168336 |
DASH This part replaces 532171853. Price: $33.08 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 10 |
98-9459 |
CAMSHAFT-FUEL Price: $159.71 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 13 |
532172108 |
DASH PANEL RH Price: $7.57 |
| 17 |
532156051 |
HOOD - LT/YT This part replaces 532165378. Price: $549.99 |
| 18 |
532126938 |
BUMPER HOOD T Price: $3.99 |
| 20 |
107-9077 |
BEARING-BALL Price: $81.95 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532165379. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA This part replaces 532165380. Price: $24.99 |
| 30 |
107-9078 |
BEARING-BALL Price: $81.95 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532171854. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532175710 |
BRACKET.ASM.PIVOT.MOWER.REAR This part replaces 532169834. Price: $9.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99 |
| 60 |
98-9590 |
NUT-CAP Price: $3.86 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 68 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 70 |
98-9669 |
GEAR-PUMP, INJECTION Price: $86.00 |
| 71 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 80 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 90 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 100 |
98-7692 |
BOLT Price: $0.92 |
| 110 |
98-9644 |
GOVERNOR SHAFT ASM Price: $527.54 |
| 114 |
584448901 |
KEEPER.BELT.REAR.LH.STL.P930 This part replaces 532158112. Price: $6.99 |
| 115 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 120 |
98-9562 |
HOLDER-GEAR, GOVERNOR Price: $61.49 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 130 |
98-9673 |
GEAR-GOVERNOR Price: $137.25 |
| 134 |
532160219 |
ROD SUPPORT HOOD LT/PL HUS. Price: $7.99 |
| 140 |
98-9561 |
HOLDER-WEIGHT, GOVERNOR Price: $23.68 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532165867. Price: $7.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $9.99 |
| 150 |
98-9559 |
GOVERNOR WEIGHT ASM Price: $105.15 |
| 160 |
98-9560 |
SHAFT-WEIGHT, GOVERNOR Price: $6.17 |
| 170 |
98-9692 |
ROLLER Price: $11.45 |
| 180 |
98-9563 |
SLEEVE-GOVERNOR Price: $29.68 |
| 190 |
98-9564 |
WASHER-THRUST Price: $5.01 |
| 200 |
107-9079 |
BEARING-BALL Price: $81.78 |
| 206 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 207 |
817670508 |
SCREW, 5/16-18 X 1/2 Price: $7.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 210 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
| 211 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 212 |
532156195 |
INSERT LENS REFLECTOR Price: $6.99 |
