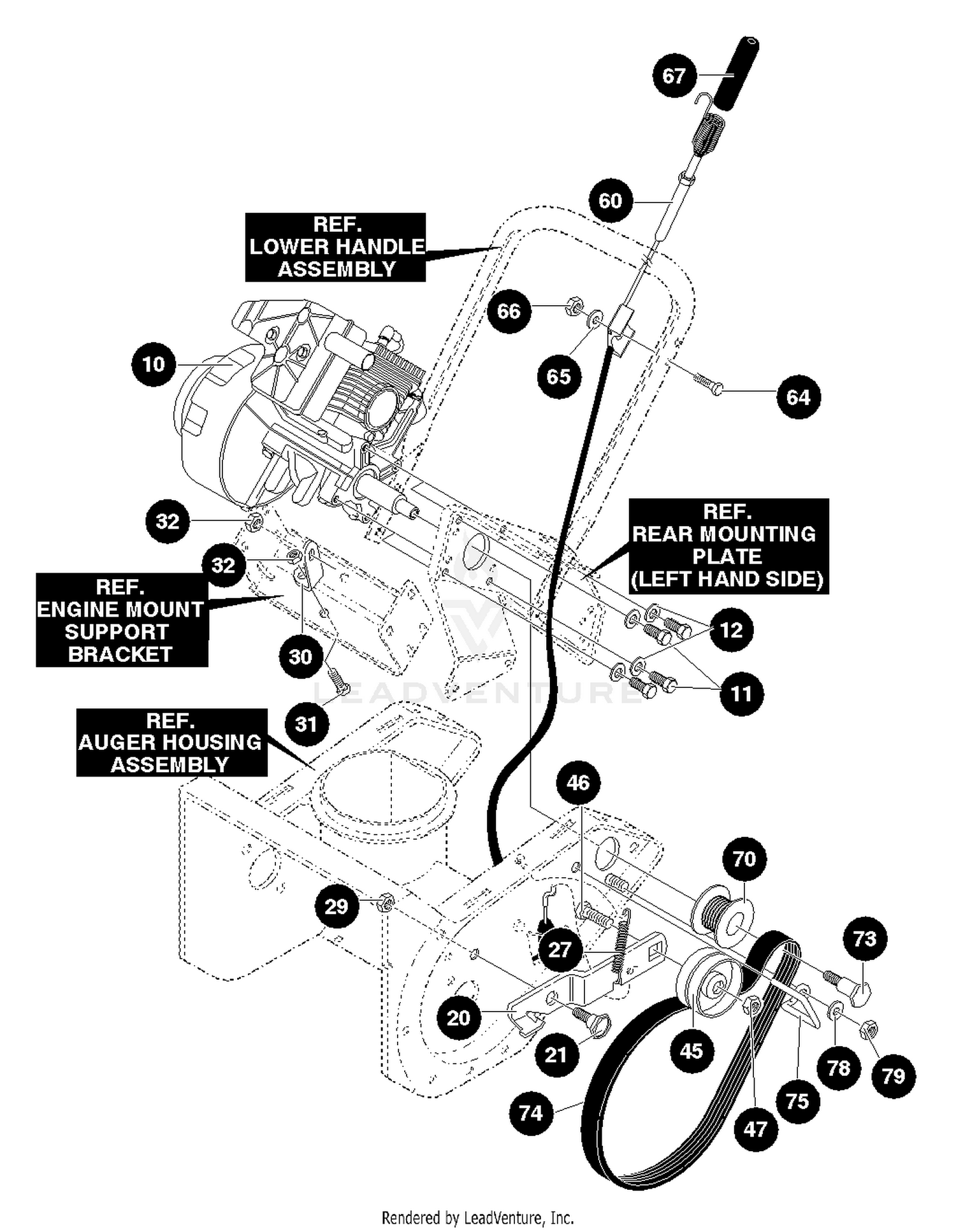

| Ref | Part Number | Description |
|---|
| 1 |
42-1910 |
PLATE WA Price: $82.86 |
| 2 |
3217-7 |
NUT-HEX Price: $0.28 |
| 3 |
3253-29 |
WASHER-LOCK/SP Price: $0.22 |
| 11 |
601000073 |
SCREW, 5/16-18X .75 HHC Price: $2.99 |
| 12 |
601000023 |
WASHER, HVSPTLK .328X.60X Price: $2.99 |
| 20 |
601002156 |
BRACKET, IDLER ARM Price: $8.99 |
| 21 |
601001329 |
BOLT Price: $3.99 |
| 27 |
601002060 |
SPRING, IDLER Price: $37.99 |
| 29 |
601000059 |
NUT, 5/16-18 REGHEXCTRLK Price: $5.99 |
| 30 |
601002157 |
MP SUPPORT, ENGINE Price: $5.99 |
| 31 |
601001640 |
SCREW 5/16-18X.50 Price: $3.99 |
| 32 |
601000059 |
NUT, 5/16-18 REGHEXCTRLK Price: $5.99 |
| 45 |
601001333 |
IDLER PULLEY Price: $32.99 |
| 46 |
601000551 |
BOLT, 3/8-16X1.50 CARR Price: $3.99 |
| 47 |
601001335 |
NUT Price: $3.99 |
| 60 |
601001757 |
CABLE, DRIVE CONTROL Price: $43.03 |
| 64 |
601001758 |
SCREW 1/4-20 X 1.50 Price: $2.90 |
| 65 |
601000018 |
WASHER, FLAT .281X .63X. Price: $1.99 |
| 66 |
601002318 |
RP NUT This part replaces 601000062. Price: $9.99 |
| 67 |
601001759 |
COVER, CABLE SPRING Price: $2.92 |
| 70 |
601002158 |
PULLEY, 4. 5HP POLY V Price: $16.99 |
| 73 |
601002080 |
BOLT, SHOULDER Price: $3.99 |
| 74 |
601002081 |
BELT, 10 RIB POLY Price: $49.99 |
| 75 |
601400059 |
GUIDE, BELT 21 STEEL This part replaces 601002082. Price: $5.99 |
| 78 |
601002159 |
WASHER, FLAT Price: $1.99 |
| 79 |
601000059 |
NUT, 5/16-18 REGHEXCTRLK Price: $5.99 |
