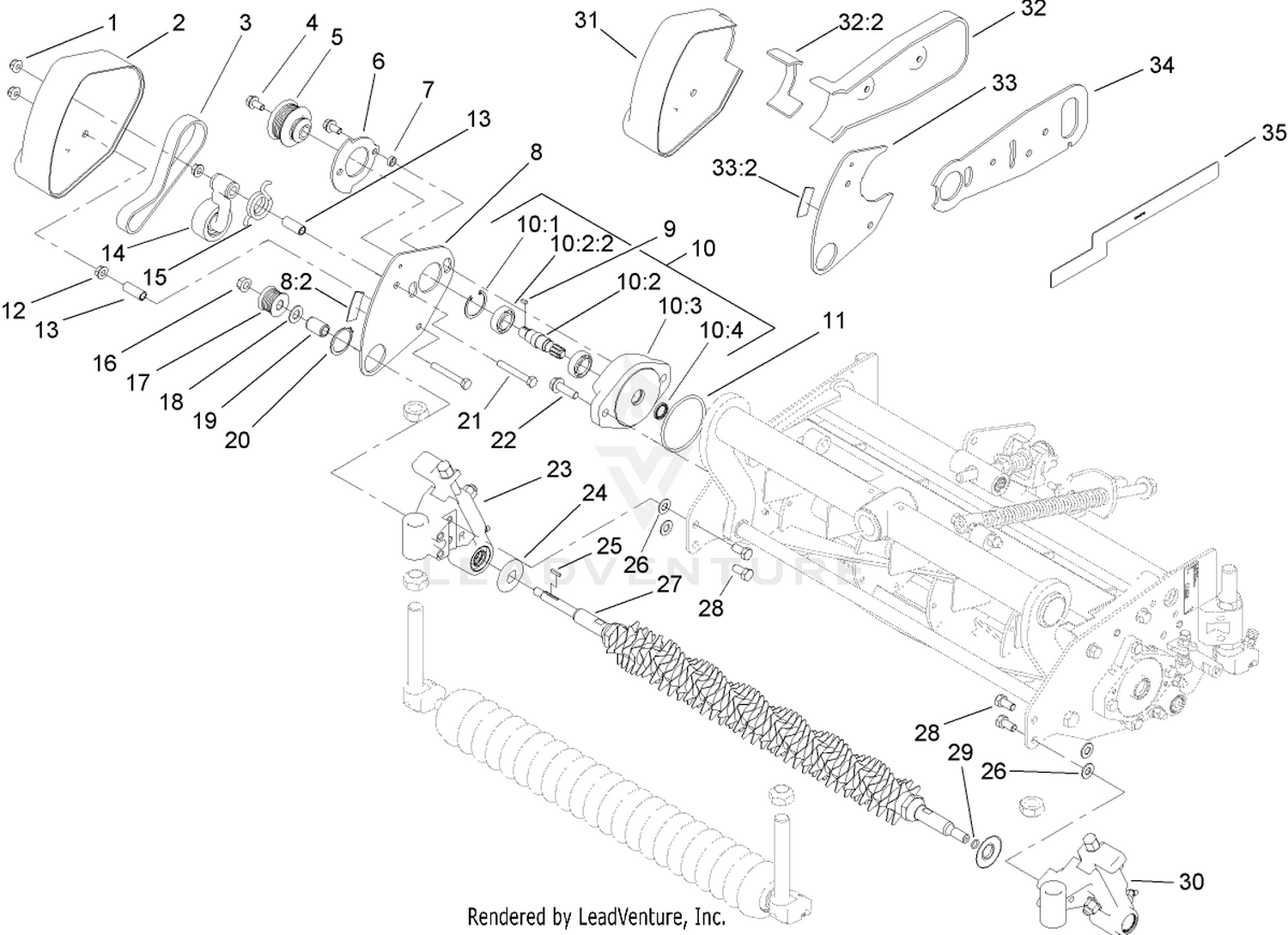

| Ref | Part Number | Description |
|---|
| 1 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 2 |
108-0615 |
COVER-DRIVE, GROOMER Price: $125.54 |
| 3 |
108-0617 |
BELT-DRIVE Price: $24.75 |
| 4 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 5 |
107-2386 |
PULLEY-DRIVE Price: $152.39 |
| 6 |
108-1429 |
PLATE-RETAINING Price: $7.04 |
| 7 |
108-0634 |
SPACER-PLATE, RETAINING Price: $7.12 |
| 8 |
108-6742 |
GROOMER PLATE ASM Price: $73.37 |
| 9 |
95-9619 |
KEY-SQUARE Price: $1.52 |
| 10 |
108-6717 |
DRIVE ASM Price: $283.63 |
| 11 |
93-9783 |
O-RING Price: $2.30 |
| 12 |
32128-25 |
NUT-HF Price: $3.19 |
| 13 |
107-4416 |
SPACER-ARM, IDLER Price: $22.47 |
| 14 |
107-4402 |
IDLER ASM Price: $213.55 |
| 15 |
107-8837 |
SPRING-TORSION Price: $12.85 |
| 16 |
32128-21 |
NUT-HF Price: $0.39 |
| 17 |
95-0743 |
PULLEY-DRIVEN Price: $49.07 |
| 18 |
108-1439 |
WASHER-HARDENED Price: $1.36 |
| 18 |
108-1449 |
WASHER-HARDENED Price: $1.58 |
| 19 |
107-4420 |
SPACER-PULLEY Price: $26.67 |
| 20 |
32120-84 |
RING-SNAP, EXTERNAL This part replaces 700260. Price: $0.61 |
| 21 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 22 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 22 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 23 |
108-0628 |
HOC ASM Price: $706.22 |
| 24 |
107-4424 |
GUARD-SEAL Price: $11.95 |
| 25 |
95-9615 |
KEY-SQUARE Price: $1.68 |
| 26 |
108-1438 |
WASHER-HARDENED Price: $1.76 |
| 26 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 27 |
107-2388 |
GROOMER SHAFT ASM Price: $603.76 |
| 28 |
323-4 |
SCREW-HH Price: $1.02 |
| 29 |
237-22 |
O-RING This part replaces 107-8844. Price: $2.43 |
| 30 |
108-0629 |
HOC ASM Price: $769.49 |
| 31 |
108-0614 |
COVER-DRIVE, GROOMER Price: $138.08 |
| 32 |
108-0608 |
BRUSH COVER ASM Price: $141.68 |
| 33 |
108-6741 |
GROOMER PLATE ASM Price: $55.80 |
| 34 |
107-2394 |
PLATE-BRUSH Price: $39.62 |
