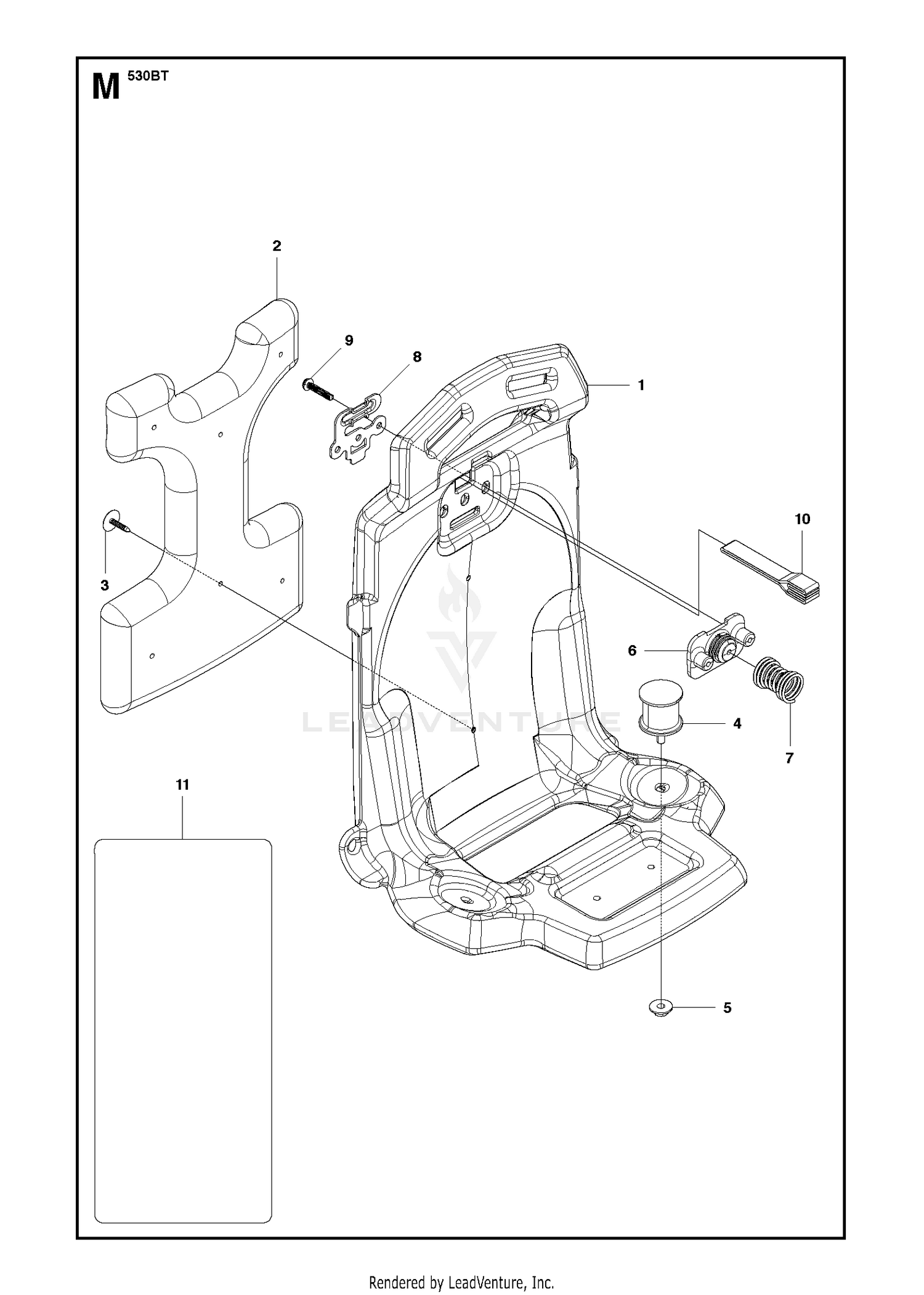

FRAME
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-7091 | CRANKSHAFT ASM Price: $2,915.83 |
| 1 | 504147501 | FRAME Price: $54.99 |
| 2 | 125-6995 | PIN Price: $5.45 |
| 2 | 504148201 | PAD Price: $19.99 |
| 3 | 544270202 | CLIP This part replaces 544270201. Price: $3.99 |
| 4 | 125-6937 | GEAR Price: $205.45 |
| 4 | 513667302 | DAMPER LOWER This part replaces 513667301. Price: $19.99 |
| 5 | 125-7185 | KEY Price: $2.16 |
| 5 | 513667501 | NUT Price: $2.99 |
| 6 | 504149301 | HOLDER Price: $2.99 |
| 7 | 125-7182 | PIN-SPRING Price: $3.77 |
| 8 | 125-6925 | V-PULLEY Price: $255.74 |
| 8 | 504149001 | PLATE Price: $3.99 |
| 9 | 125-7109 | WASHER Price: $19.67 |
| 9 | 512848101 | SCREW Price: $2.99 |
| 10 | 125-6956 | BOLT Price: $40.22 |
| 10 | 504149201 | STOPPER Price: $6.99 |
| 11 | 125-6951 | BOLT Price: $6.77 |
| 11 | 587122701 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 127-3160 | FLYWHEEL ASM Price: $1,222.30 |
| 14 | 125-6943 | GEAR Price: $137.73 |
| 16 | 127-3097 | PISTON ASM Price: $292.63 |
| 18 | 127-3098 | PISTON RING ASM Price: $90.40 |
| 24 | 125-7030 | PIN Price: $43.23 |
| 25 | 125-7180 | RING Price: $2.39 |
| 26 | 125-7242 | CONNECTING ROD ASM Price: $467.89 |
| 29 | 125-6955 | BOLT Price: $20.62 |
| 30 | 125-7018 | PIN-CRANK Price: $20.94 |
| 32 | 125-6997 | PIN-PISTON Price: $21.73 |
| 33 | 125-7019 | PIN-CRANK (.25) Price: $20.96 |
| 35 | 127-3099 | PISTON ASM (0.25 O.S.) Price: $267.86 |
