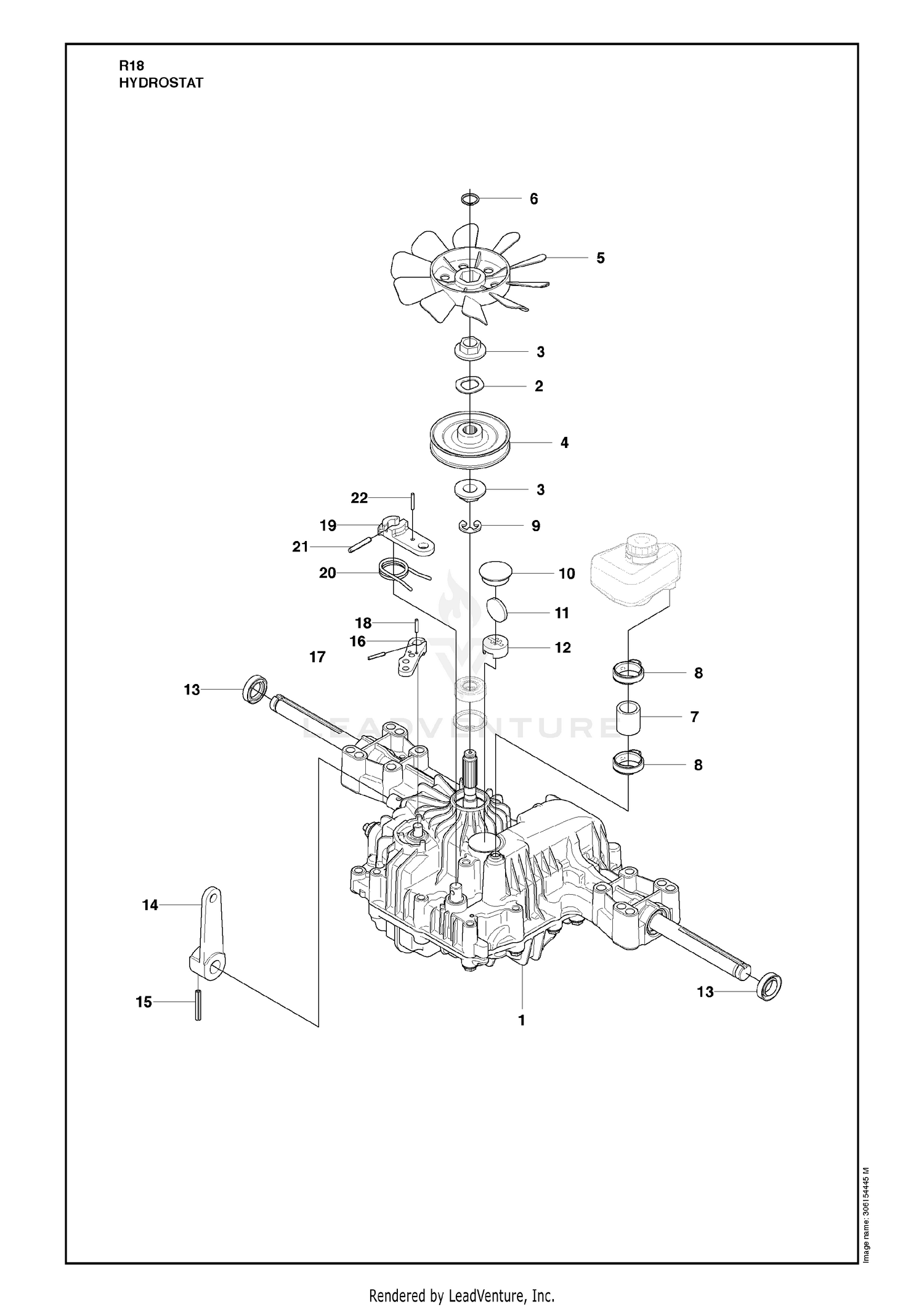

Hydrostat
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506986301 | HYDROSTAT 7A646024070 Price: $1,099.99 |
| 1 | 71-4570-03 | HOUSING-CLUTCH, ROLLER Price: $367.36 |
| 2 | 506986501 | WASHER ** Price: $3.99 |
| 2 | 71-4580 | BEARING Price: $80.51 |
| 3 | 506986601 | SLEEVE Price: $7.99 |
| 3 | 71-4590 | WASHER-THRUST Price: $3.32 |
| 4 | 502451901 | PULLEY B Price: $37.99 |
| 4 | 76-4690-03 | COUPLING-AXLE Price: $318.79 |
| 5 | 253-155 | SEAL-OIL Price: $14.36 |
| 5 | 583350101 | FAN.BLACK.1A646083070 This part replaces 506986801. Price: $27.99 |
| 6 | 284-3 | PLUG Price: $7.14 |
| 6 | 735311500 | RETAINING RING ** Price: $2.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 502451601 | TUBE Price: $17.99 |
| 8 | 505131102 | HOSE CLAMP 20-32 This part replaces 506987001. Price: $4.99 |
| 9 | 535402807 | CLIP Price: $0.25 |
| 10 | 535402832 | PLUG Price: $14.99 |
| 11 | 535402829 | MAGNET Price: $5.17 |
| 12 | 502452001 | MAGNET HOLDER Price: $6.99 |
| 13 | 583349301 | SEAL.19, 19216334280 This part replaces 535402837. Price: $17.99 |
| 14 | 502453201 | CONTROL LEVER Price: $34.99 |
| 15 | 535402809 | PIN Price: $2.99 |
| 16 | 535402817 | ARM Price: $19.99 |
| 17 | 535402816 | PIN Price: $2.99 |
| 18 | 535402833 | PIN Price: $2.99 |
| 19 | 535402838 | ARM Price: $14.99 |
| 20 | 535402839 | RETURN SPRING Price: $11.99 |
| 21 | 535402840 | PIN Price: $3.99 |
