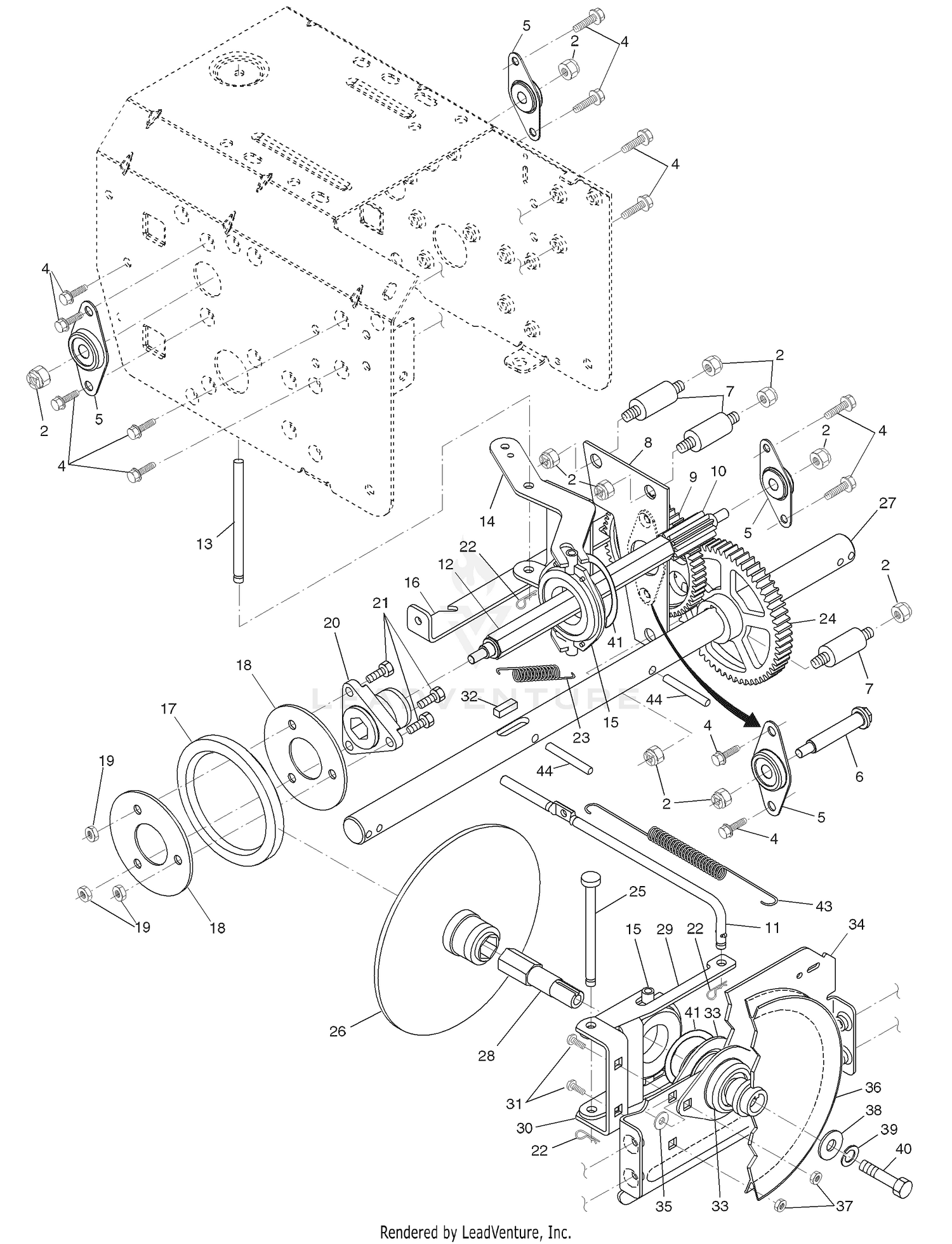

| Ref | Part Number | Description |
|---|
| 1 |
47-7150 |
PULLEY-DRIVE Price: $259.16 |
| 2 |
3246-17 |
SETSCREW-HSH Price: $0.47 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 3 |
47-2380 |
KEY-SQUARE Price: $2.06 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 4 |
74-3390 |
DISCONTINUED Price: Call Us |
| 5 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 5 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 6 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 6 |
76-8980 |
WIRE HARNESS Price: $76.61 |
| 7 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 7 |
76-8210 |
DISCONTINUED Price: Call Us |
| 8 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99 |
| 8 |
76-8220 |
HOSE ASSY Price: $51.19 |
| 9 |
340-70 |
NUT-LOCK Price: $2.10 |
| 10 |
532180065 |
GEAR, PINION Price: $12.99 |
| 10 |
76-9570 |
HYD HOSE ASM Price: $49.70 |
| 11 |
237-22 |
O-RING Price: $2.43 |
| 11 |
532187714 |
ROD.CLUTCH.YELLOW.ZINC Price: $9.99 |
| 12 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 12 |
74-6300 |
DISCONTINUED Price: Call Us |
| 13 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 13 |
74-6310 |
TUBE ASSY-LIFT CYL RH Price: $106.42 |
| 14 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 14 |
74-6250 |
TUBE - ASSY STR RH Price: $174.94 |
| 15 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 15 |
74-6240 |
DISCONTINUED Price: Call Us |
| 16 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99 |
| 16 |
76-8860 |
MAIN HARNESS Price: $444.06 |
| 17 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 17 |
77-4060 |
DISCONTINUED Price: Call Us |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 18 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 19 |
2412-126 |
R-CLAMP Price: $2.51 |
| 19 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 20 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 20 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 21 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 21 |
74-6470 |
BRKT-CLAMP,STRG LINE Price: $51.05 |
| 22 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 22 |
58-3880 |
CLAMP-DOUBLE Price: $7.34 |
| 23 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 23 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 24 |
321-8 |
SCREW-HH Price: $0.34 |
| 25 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 25 |
74-6270 |
TUBE - ASSY STR RH Price: $140.99 |
| 26 |
532197763 |
DRIVE PLATE WELDMENT Price: $54.99 |
| 26 |
74-6260 |
DISCONTINUED Price: Call Us |
| 27 |
532179352 |
SHAFT.AXLE.16".SNOW Price: $49.99 |
| 27 |
74-6350 |
DISCONTINUED Price: Call Us |
| 28 |
532197764 |
SHAFT.HEX.SHORT Price: $11.99 |
| 28 |
74-6210 |
DISCONTINUED Price: Call Us |
| 29 |
237-65 |
O-RING Price: $2.50 |
| 29 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 30 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 30 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 31 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 31 |
69-9010 |
WASHER Price: $1.83 |
| 32 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 32 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 33 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 33 |
69-8970 |
SPACER Price: $9.57 |
| 34 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 34 |
69-8940 |
WASHER Price: $1.76 |
| 35 |
340-68 |
FITTING-TEE, BULKHEAD This part replaces 340-120. Price: $36.00 |
| 35 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 36 |
532191080 |
PULLEY.TRACTION.7.75 Price: $49.99 |
| 36 |
59-7260 |
CORDURA SLEEVE Price: $42.91 |
| 37 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 37 |
76-8170 |
HOSE ASSY Price: $99.34 |
| 38 |
74-6360 |
DISCONTINUED Price: Call Us |
| 38 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 39 |
125-1984 |
SPACER This part replaces 69-9000. Price: $0.68 |
| 39 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 40 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 40 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 41 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 41 |
76-9560 |
HOSE ASSY Price: $58.41 |
| 42 |
340-72 |
FITTING-BULKHEAD, 90 DEG Price: $41.27 |
| 43 |
532179095 |
SPRING.RETURN Price: $3.99 |
| 43 |
74-4970 |
BULKHEAD COVER *B Price: $29.67 |
| 44 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 45 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 46 |
76-8960 |
DISCONTINUED Price: Call Us |
| 47 |
340-76 |
FITTING-BULKHEAD UNION, STRAIGHT Price: $37.98 |
| 48 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
